OnStar Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 Chevrolet Tahoe, 2004 Chevrolet Suburban, and 2004 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

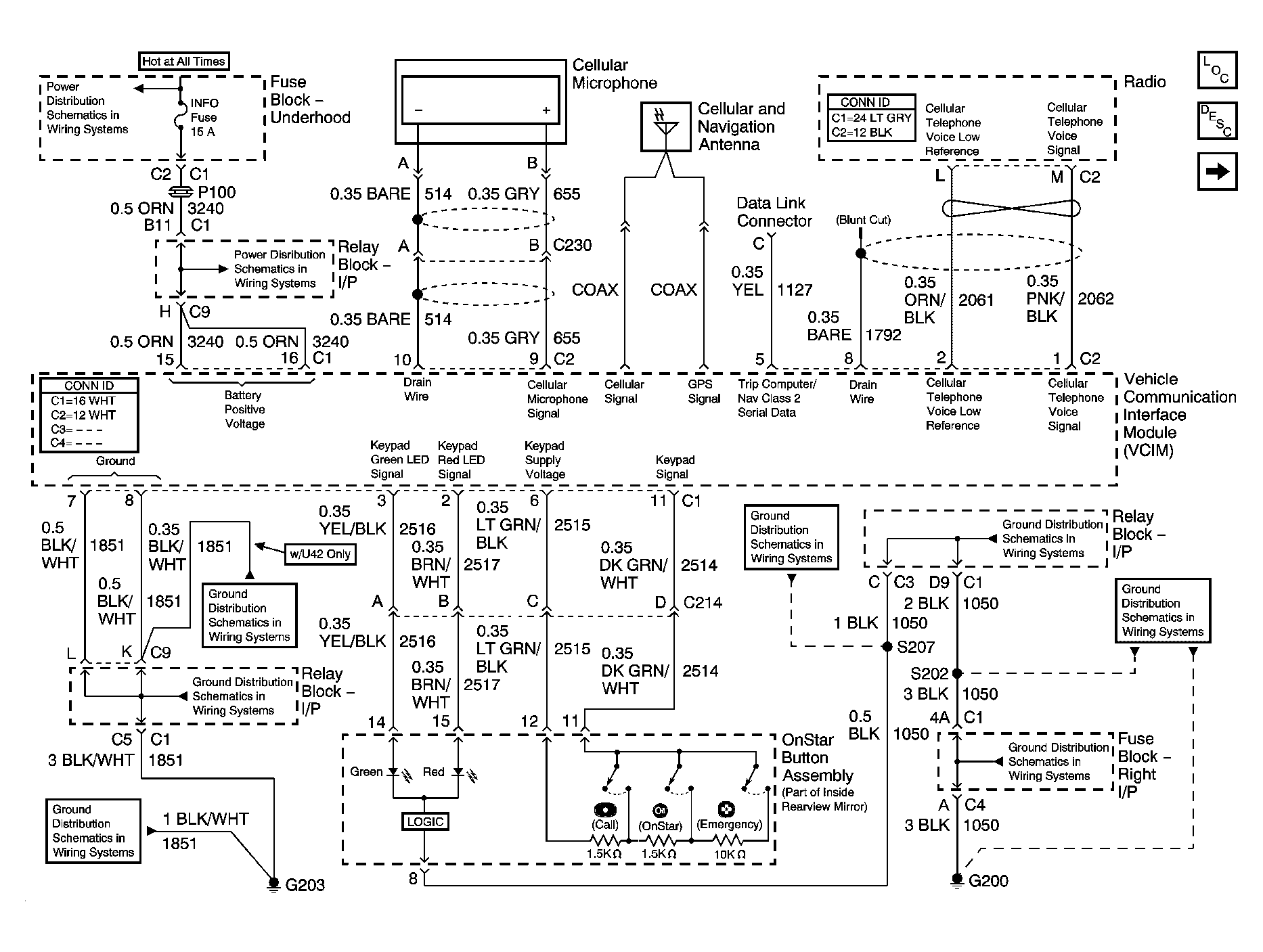

Fig 1: OnStar Schematic (Except Y91)

Courtesy of GENERAL MOTORS CORP.

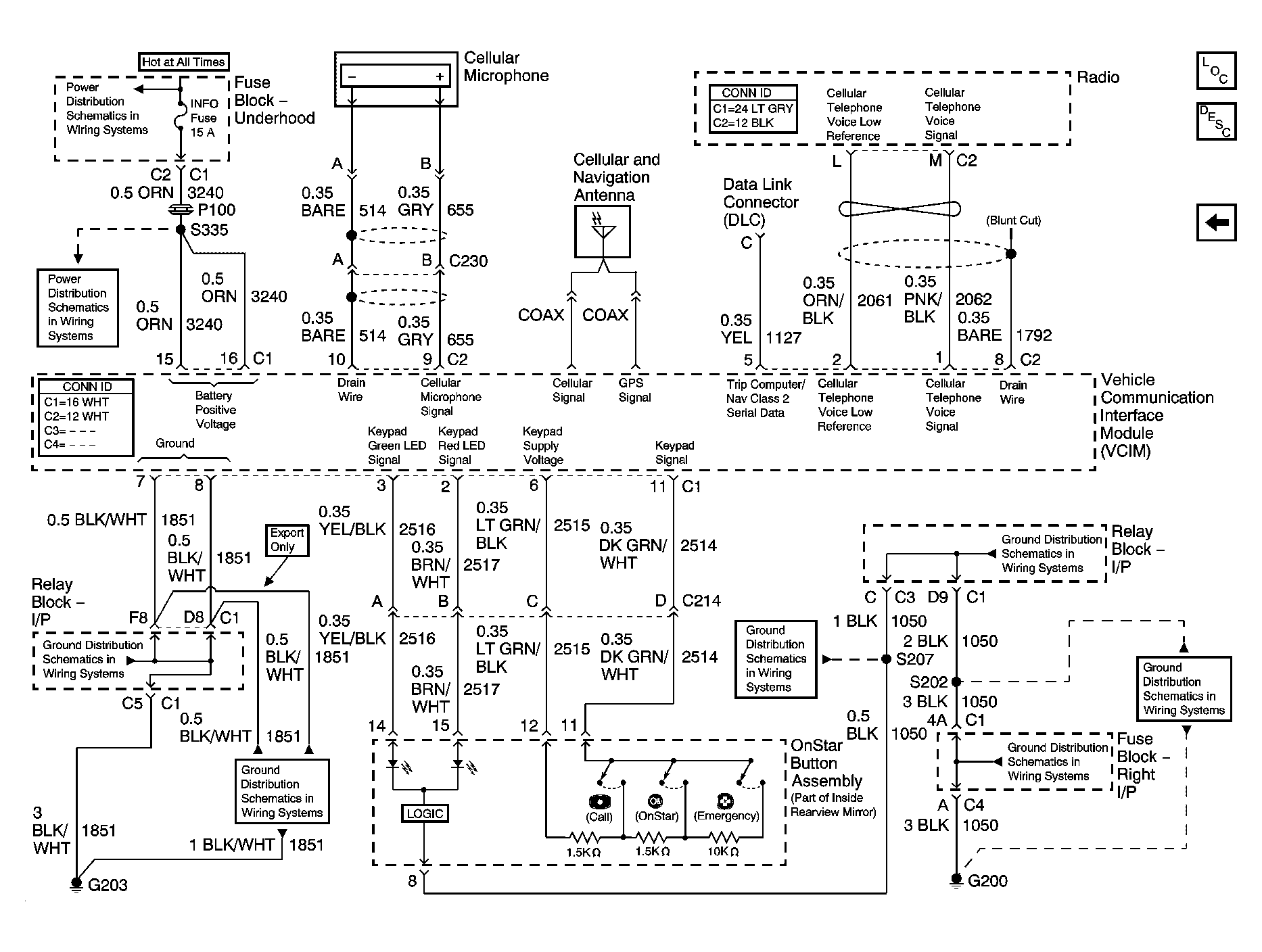

Fig 2: OnStar Schematic (Y91)

Courtesy of GENERAL MOTORS CORP.
