Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 Chevrolet Tahoe, 2004 Chevrolet Suburban, and 2004 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the pushrod retaining clip (4).
  2. Remove the stop lamp switch (2) and the pushrod (3) from the brake pedal stud (1).
    3. Fig 1: View Of Pedal Stud, Stop Lamp Switch, Pushrod & Retaining Clip
    GM344194Courtesy of GENERAL MOTORS CORP.
  3. Remove the nut from the brake pedal bolt.
  4. Remove the brake pedal bolt.
  5. Remove the brake pedal.

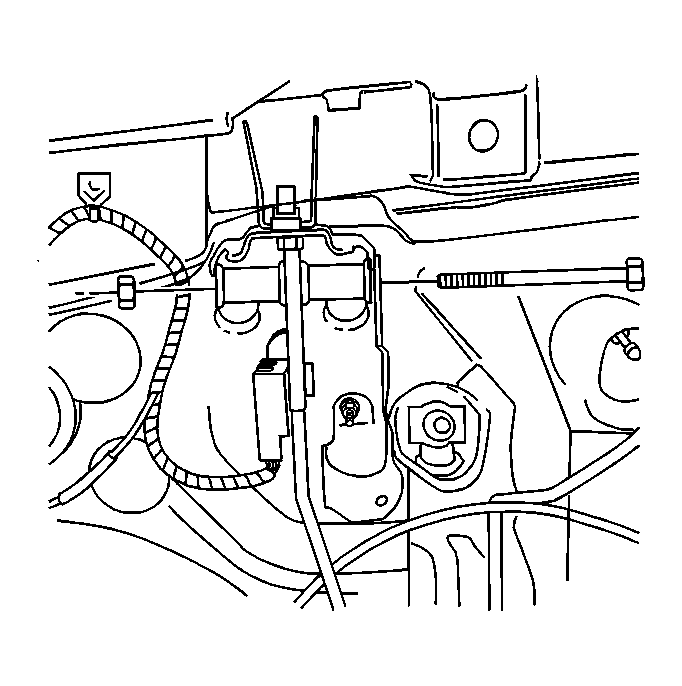

    6. Fig 2: View Of Brake Pedal Bolt & Nut
    GM375693Courtesy of GENERAL MOTORS CORP.
