Home >> Chevrolet >> 2004 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electronic Throttle Control Module >> Locations
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

Electronic Throttle Control Module: Locations

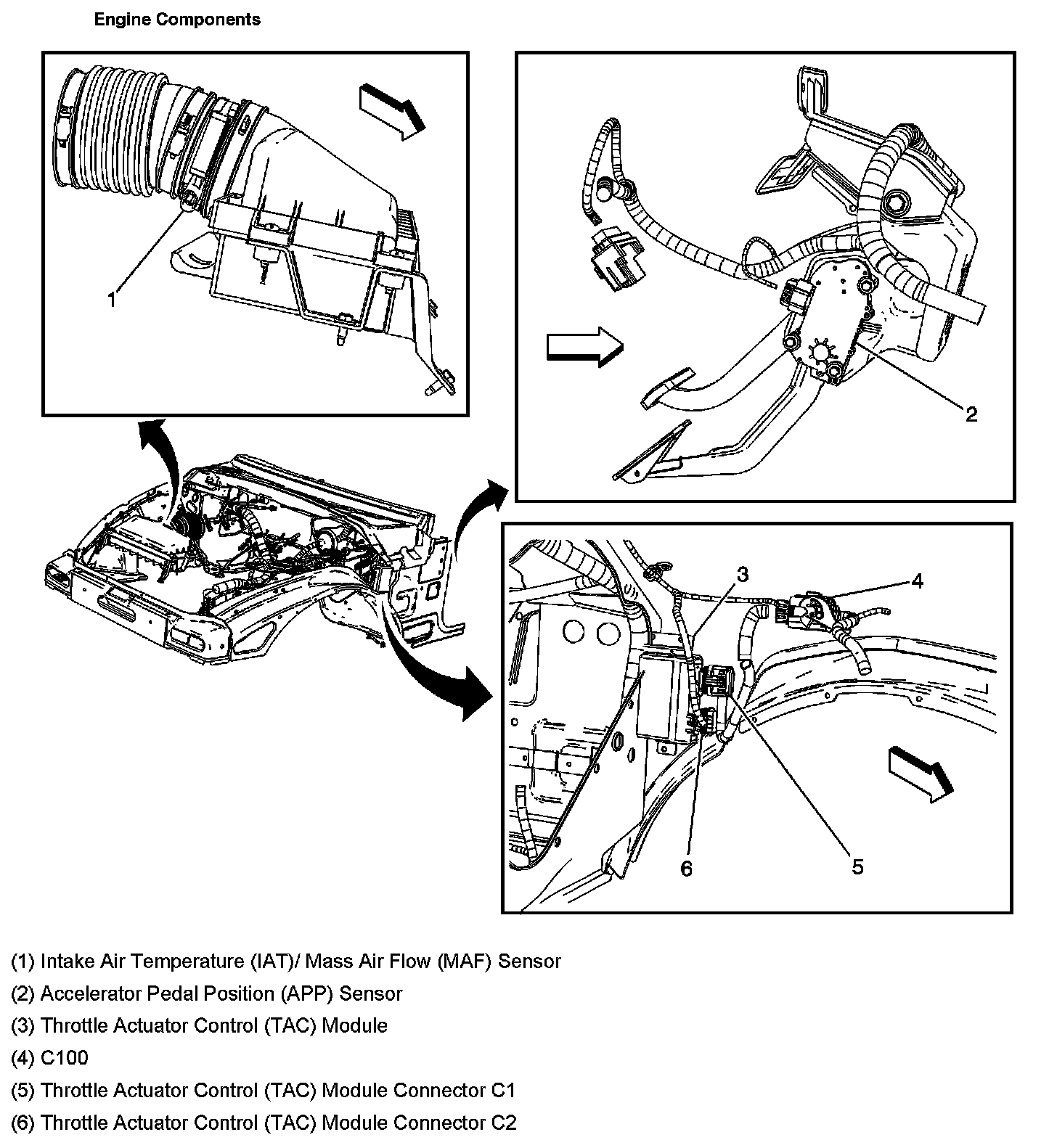

Engine Components:

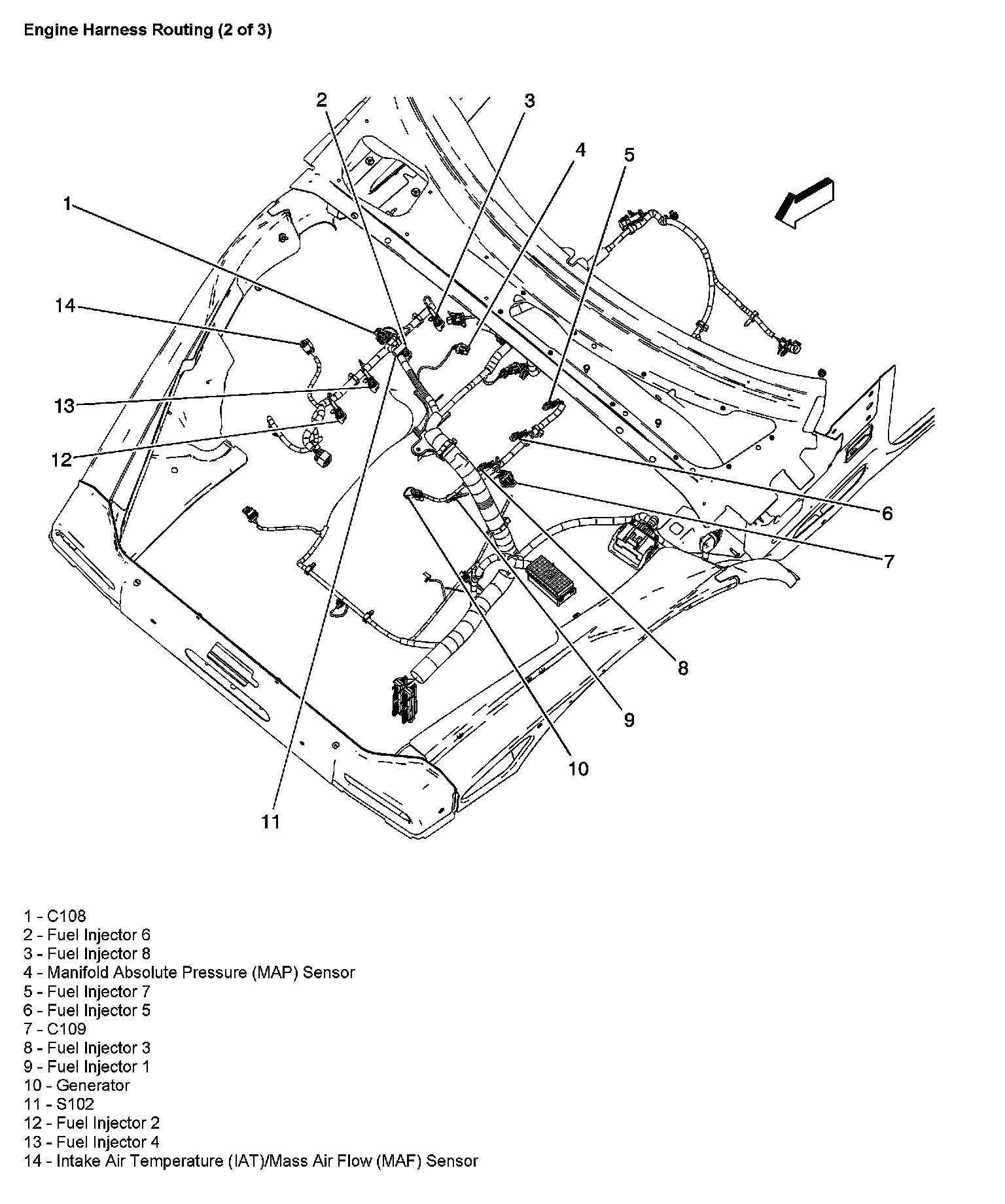

Engine Harness Routing (2 of 3):
