Control Valve Body Assembly

Disassembled Views

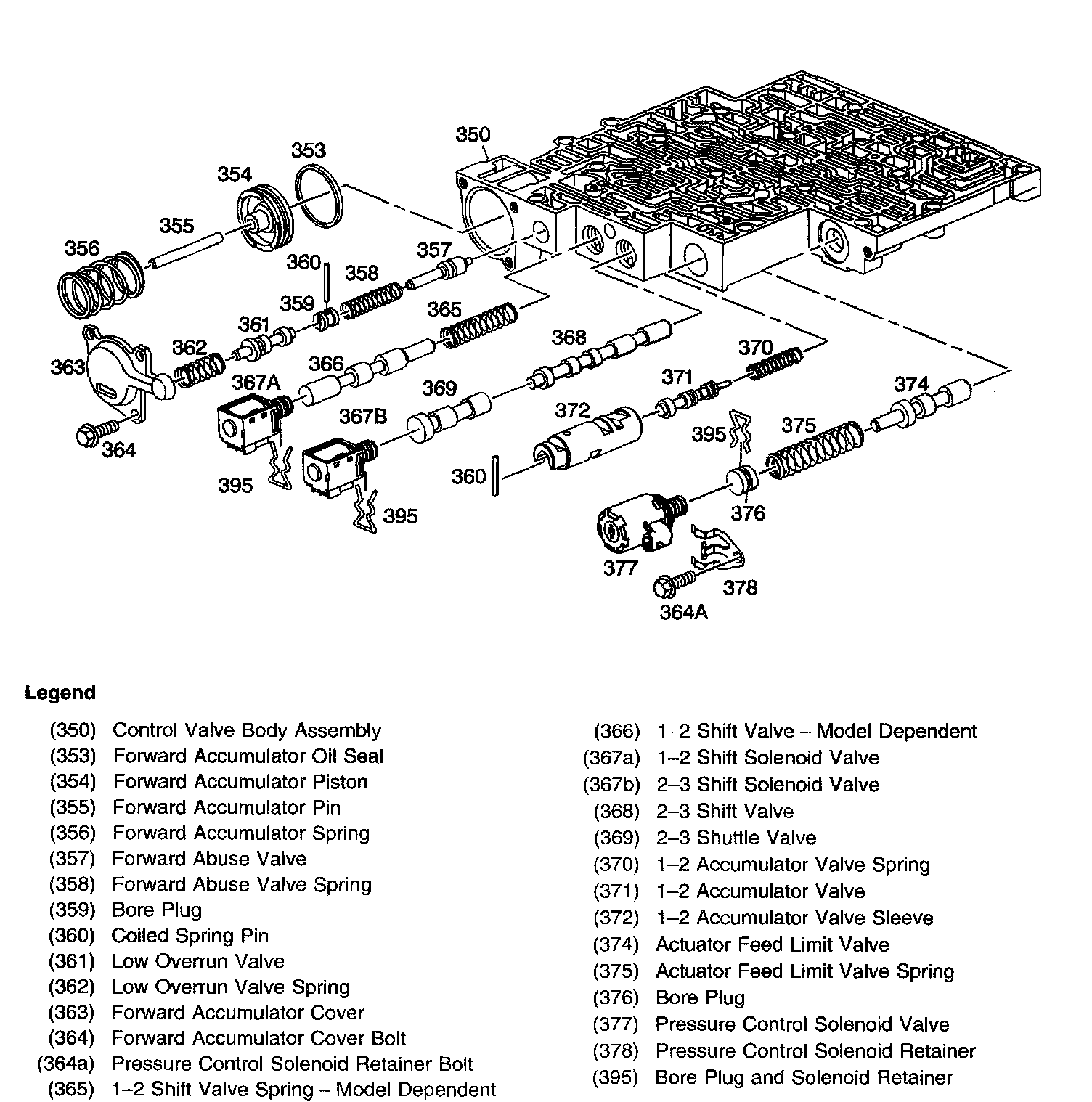

Control Valve Body Assembly (1 of 2)

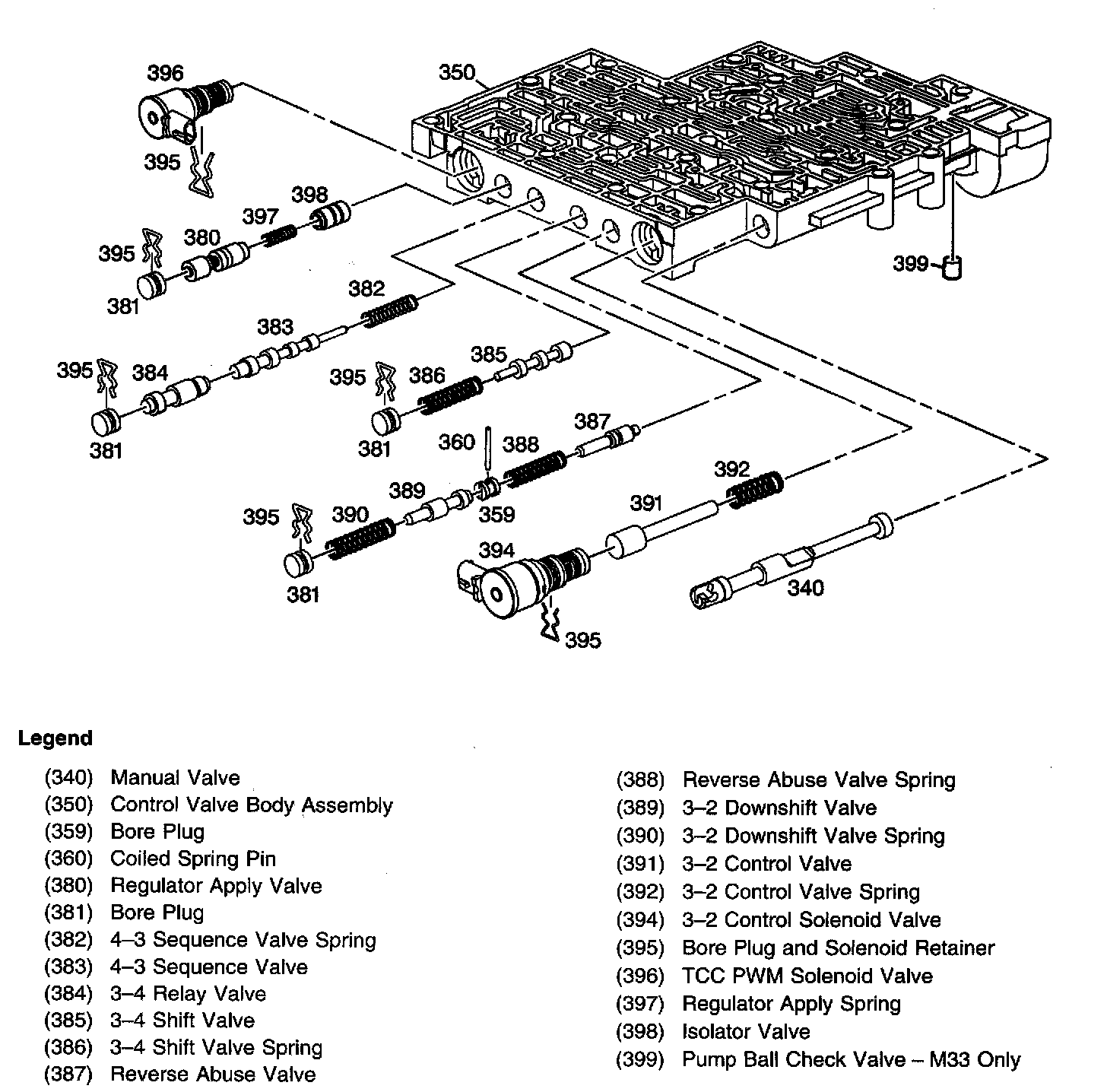

Control Valve Body Assembly (2 of 2)
