Air Bag Control Module

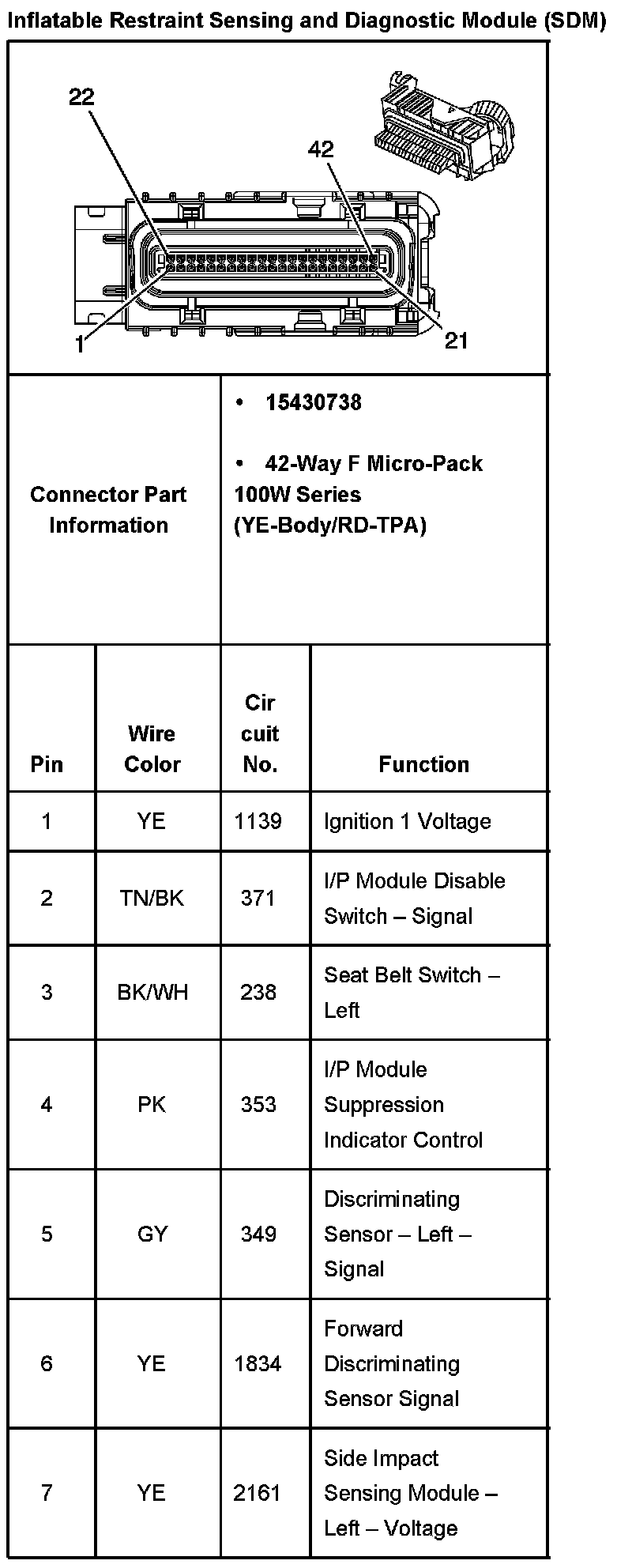

Inflatable Restraint Sensing And Diagnostic Module (SDM) Part 1:



Inflatable Restraint Sensing And Diagnostic Module (SDM) Part 2:



Inflatable Restraint Sensing And Diagnostic Module (SDM) Part 3:



Inflatable Restraint Sensing And Diagnostic Module (SDM) Part 4:
