Installation Procedure

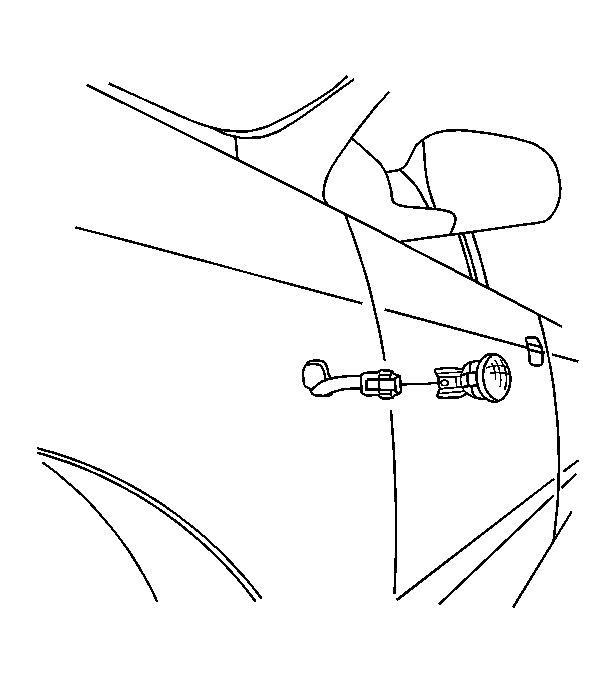

    Fig 1: View Of Repeater Lamp And Electrical Connector
    GM1308856Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
  2. Install the repeater lamp.
  3. Connect the negative battery cable.
