Chevrolet
>>
2004
>>
Optra Base, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Engine Electrical System
>>
Schematic and Routing Diagrams
>>
Starting and Charging Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Starting and Charging Schematics

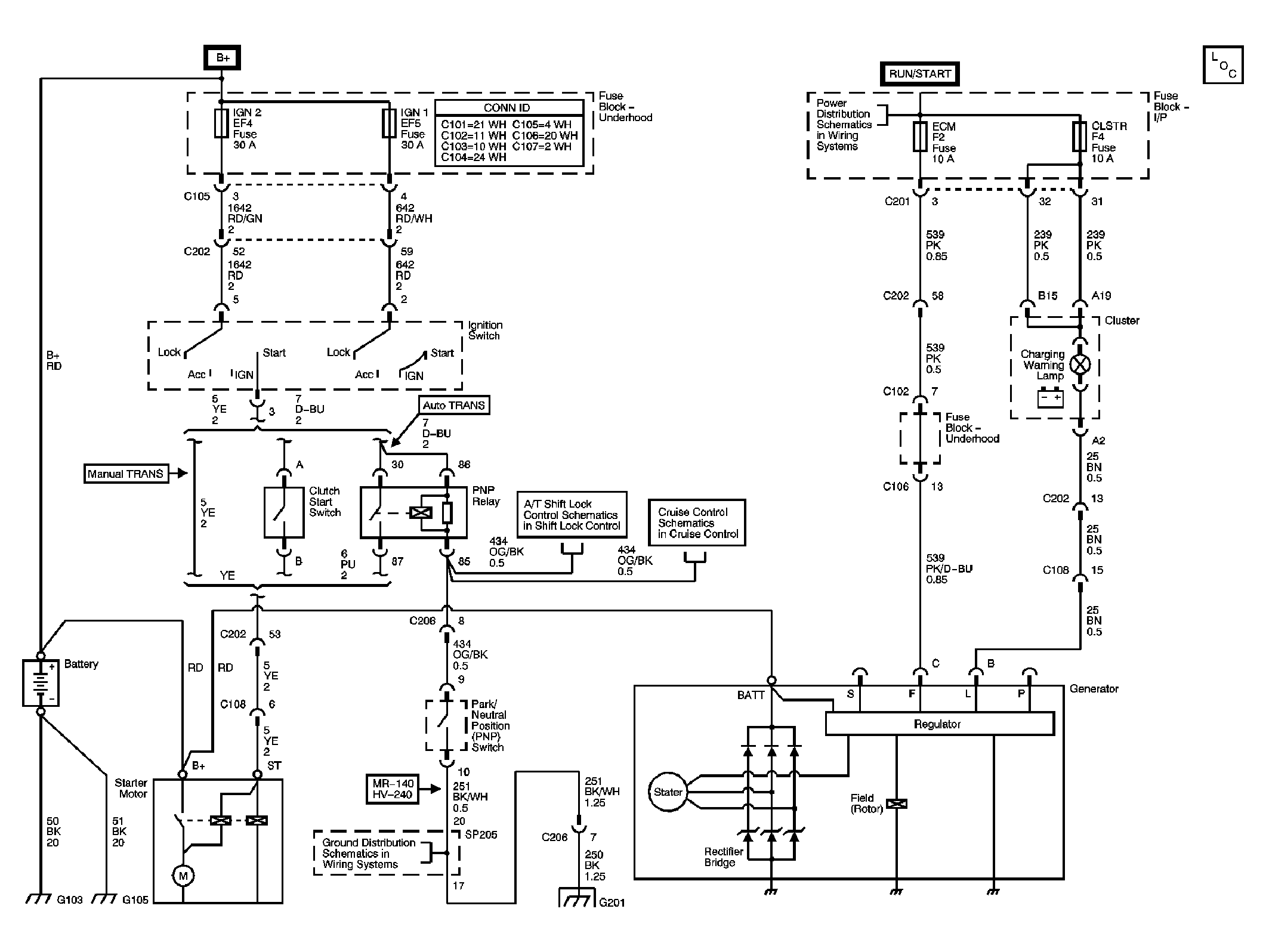

Fig 1: Starting And Charging Schematic
Courtesy of GENERAL MOTORS CORP.
