Cruise Control Schematics

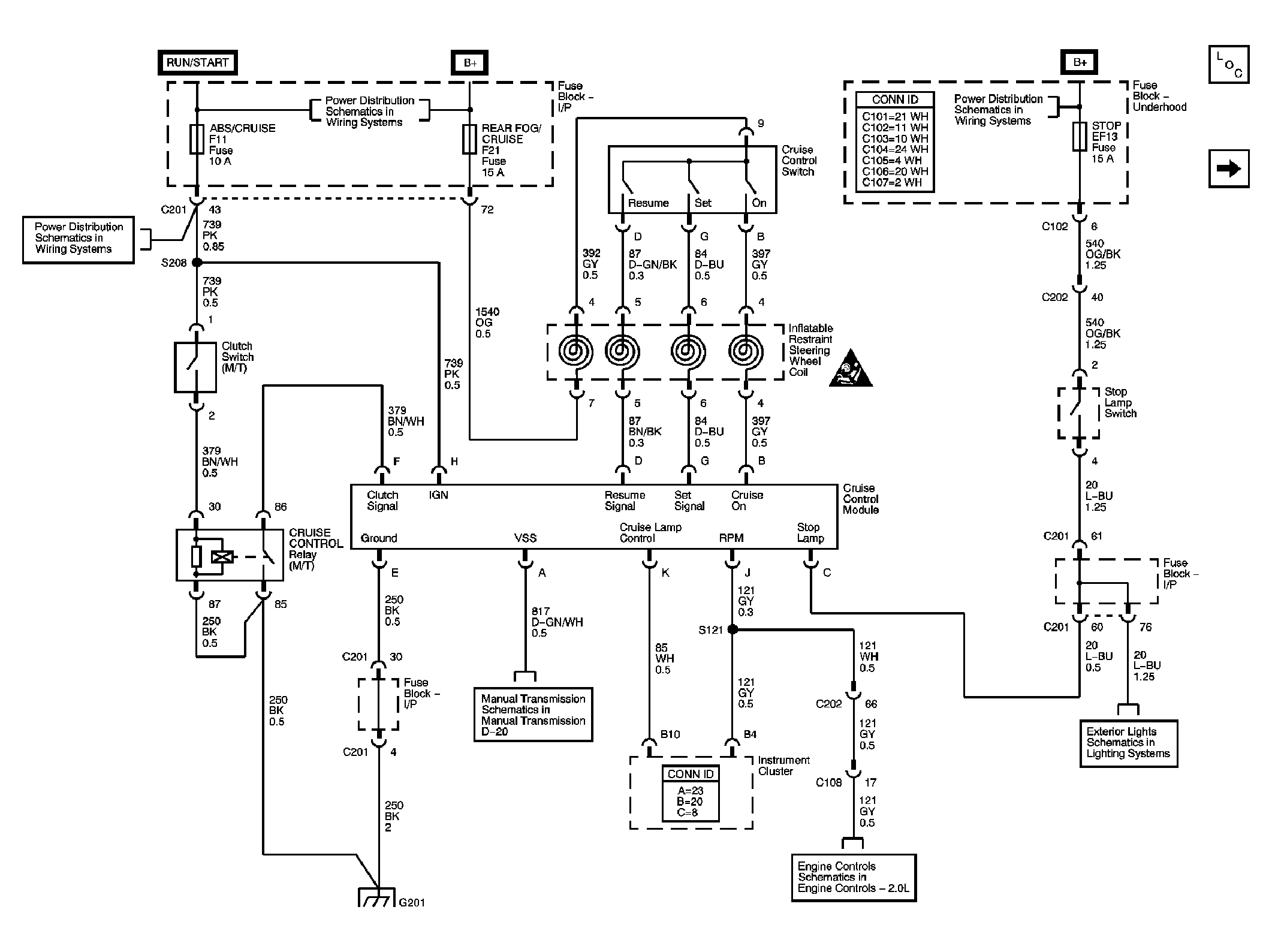

Fig 1: Manual Transmission Schematic
GM1376561Courtesy of GENERAL MOTORS CORP.

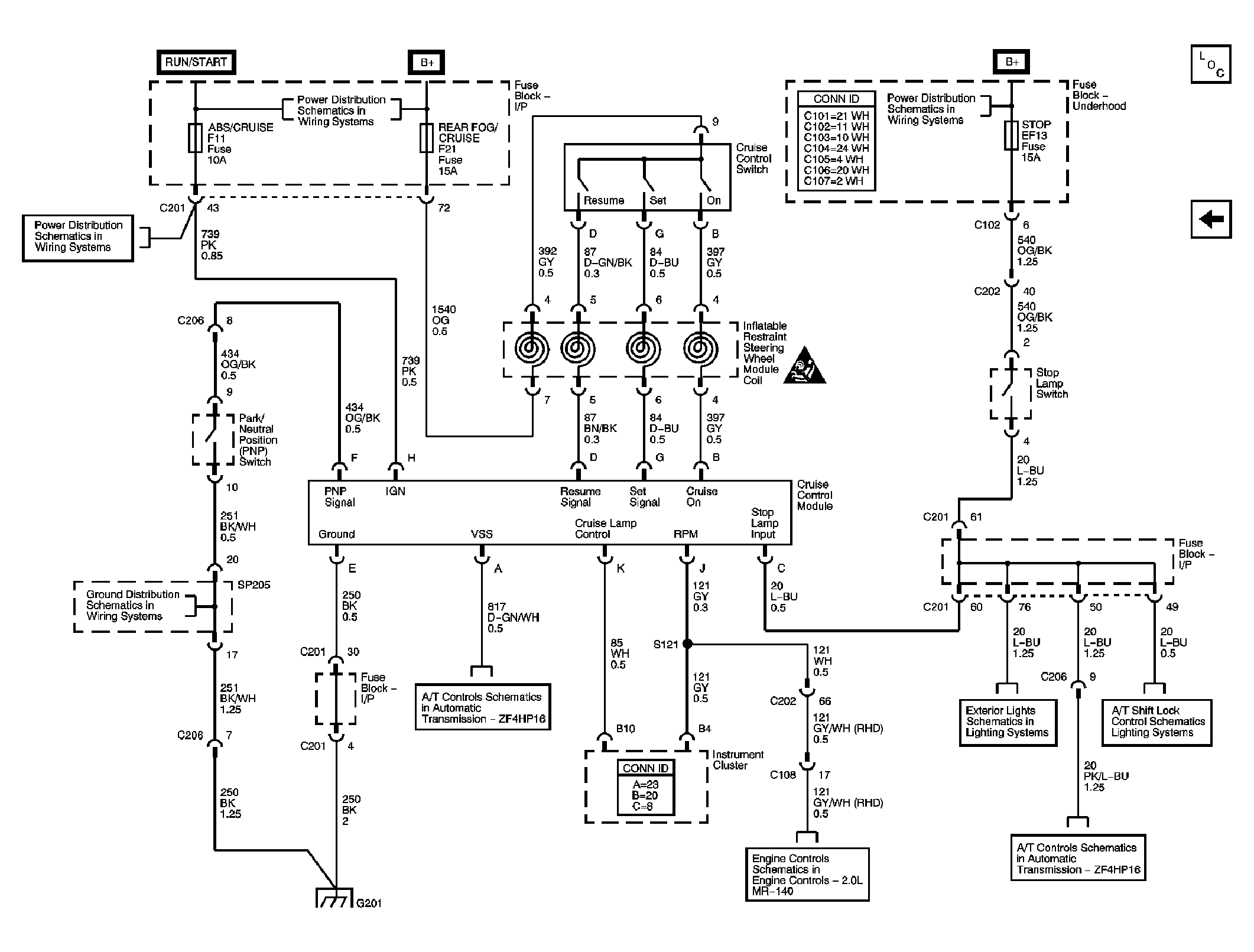

Fig 2: Automatic Transmission Schematic
GM1376562Courtesy of GENERAL MOTORS CORP.
