Data Link Connector Schematics

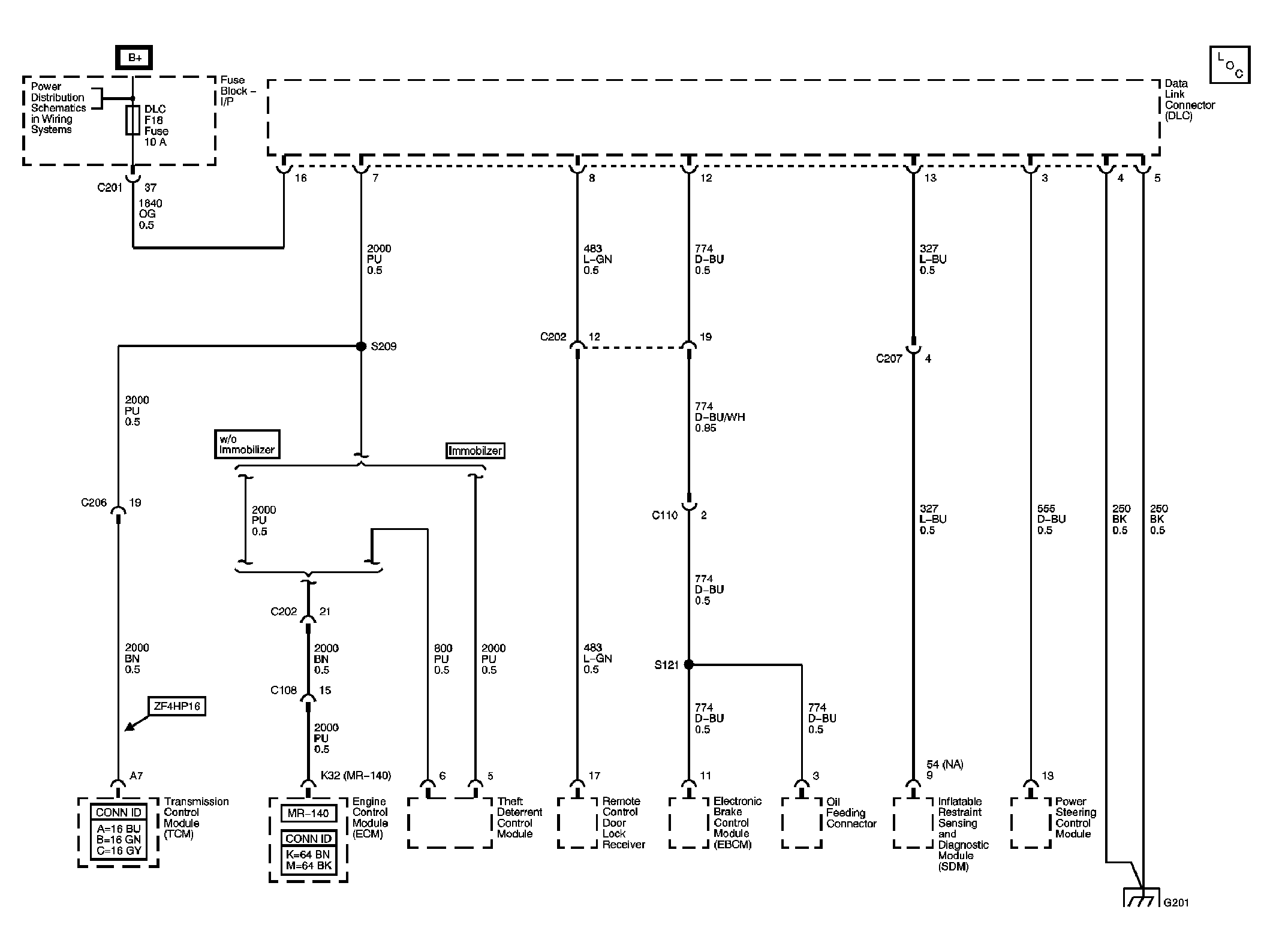

Fig 1: MR 140 Schematic
GM1376556Courtesy of GENERAL MOTORS CORP.
Fig 2: HV 240 Schematic
GM1456522Courtesy of GENERAL MOTORS CORP.

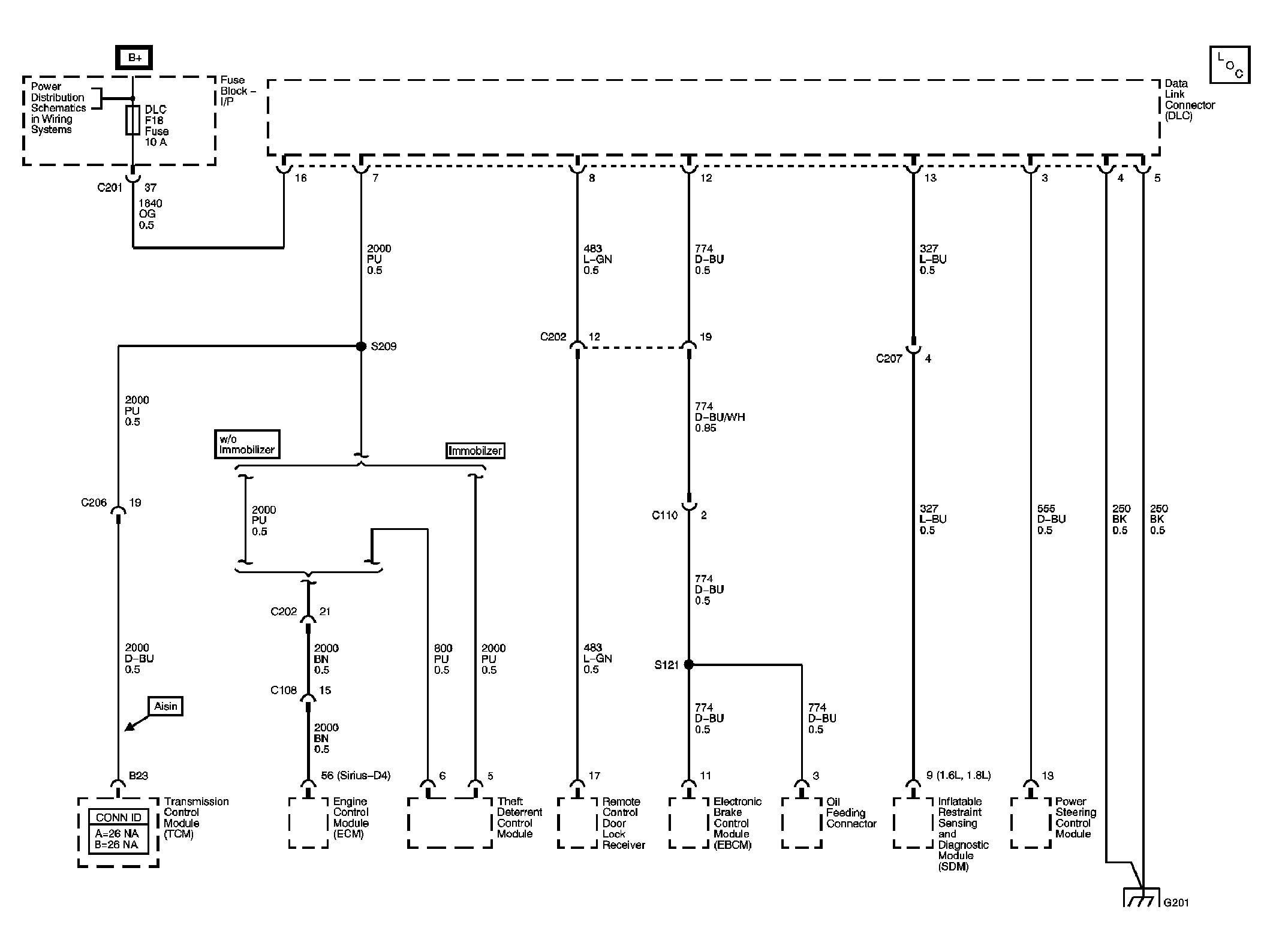

Fig 3: Sirius Schematic
GM1456523Courtesy of GENERAL MOTORS CORP.
