Home >> Chevrolet >> 2004 >> Malibu L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft Assembly
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

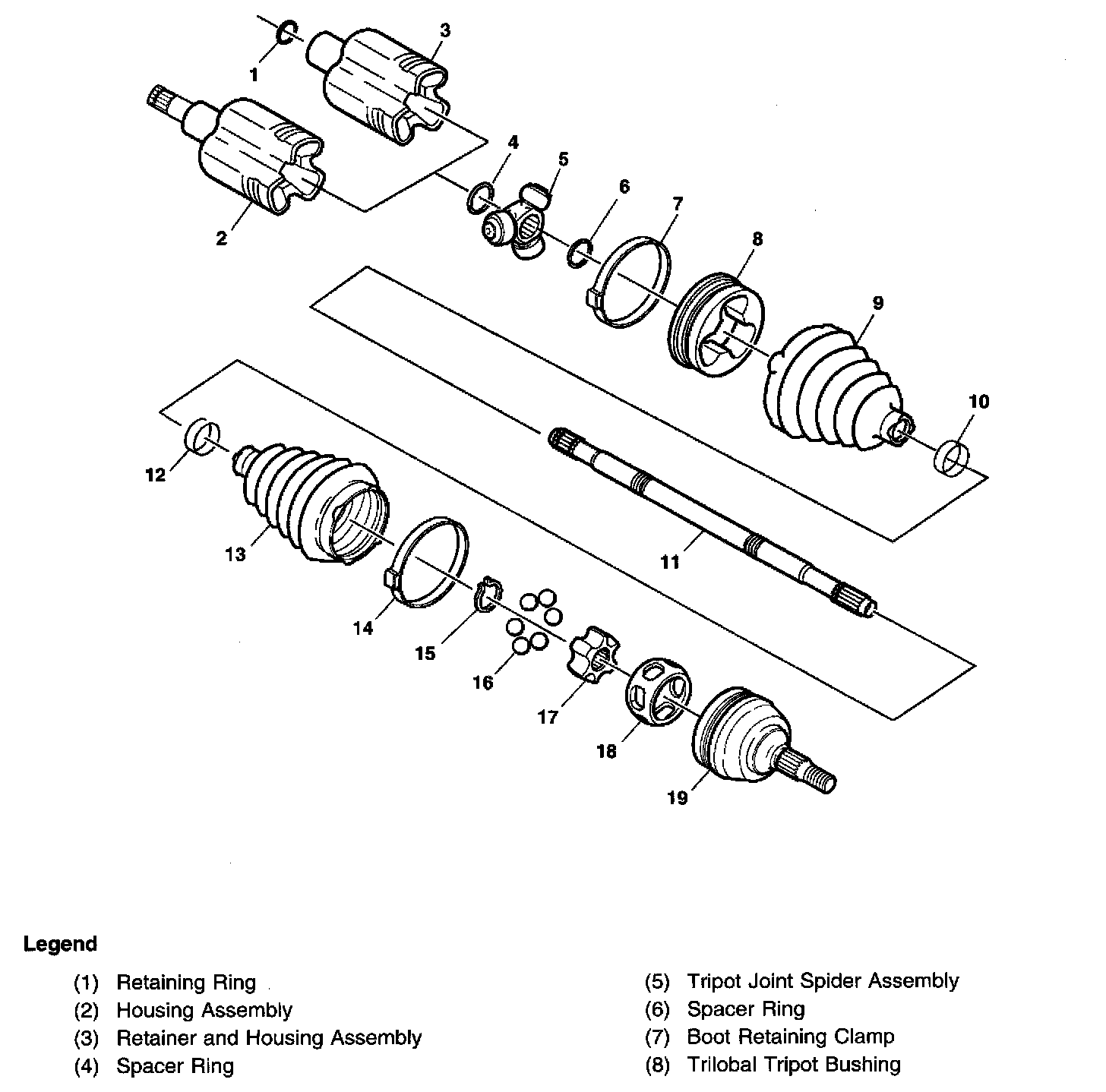

Axle Shaft Assembly

Part 1 Of 2:



Part 2 Of 2:
