Powertrain Control Module (PCM) C3



Powertrain Control Module (PCM) C3






Connector Part Information
- OEM: 15430209
- Description: 56-Way F Micro-Pack Series Sealed (GY)

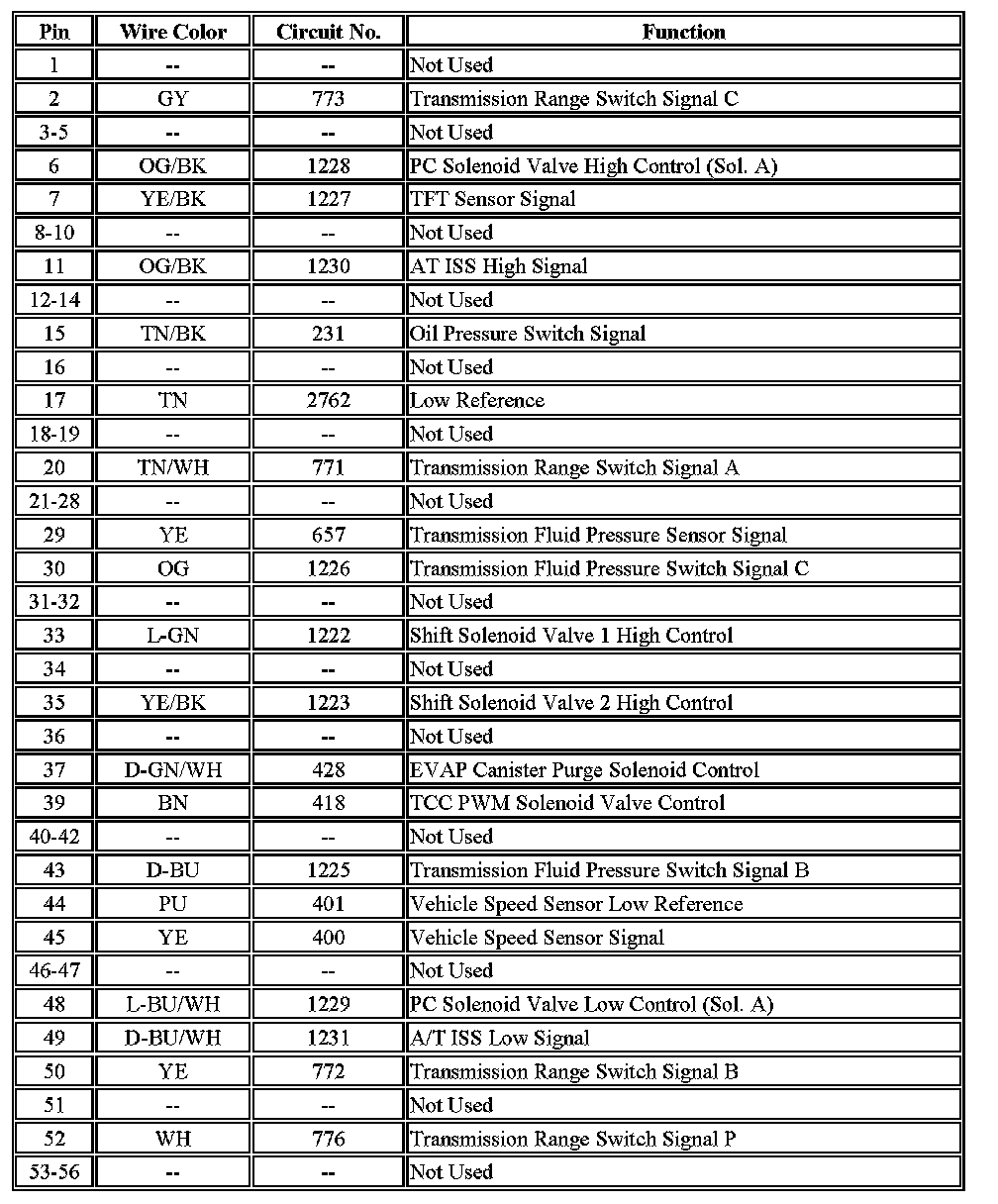

Powertrain Control Module (PCM) C3
