Power Distribution Schematics

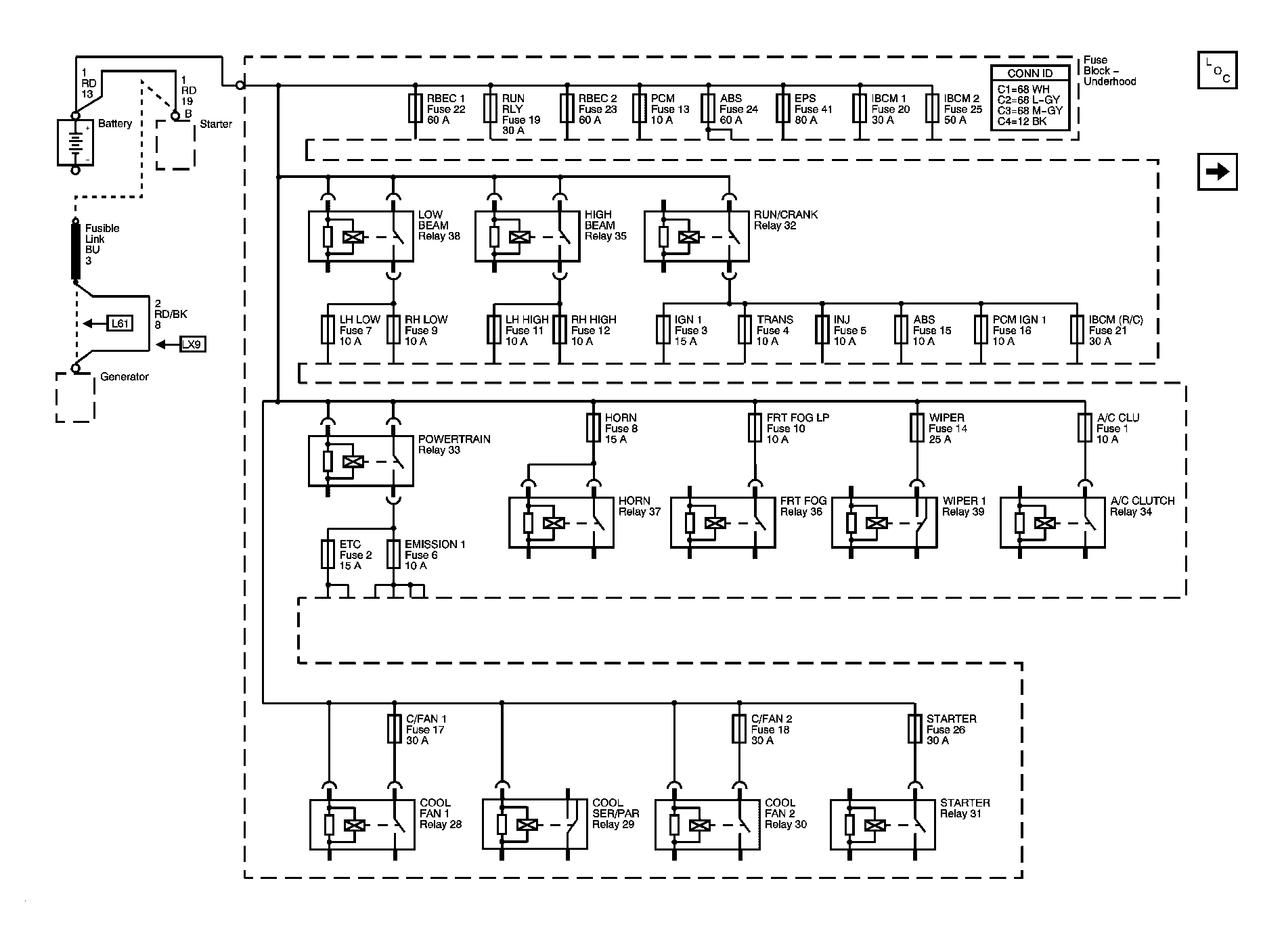

Fig 1: Fuse Block - Underhood Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

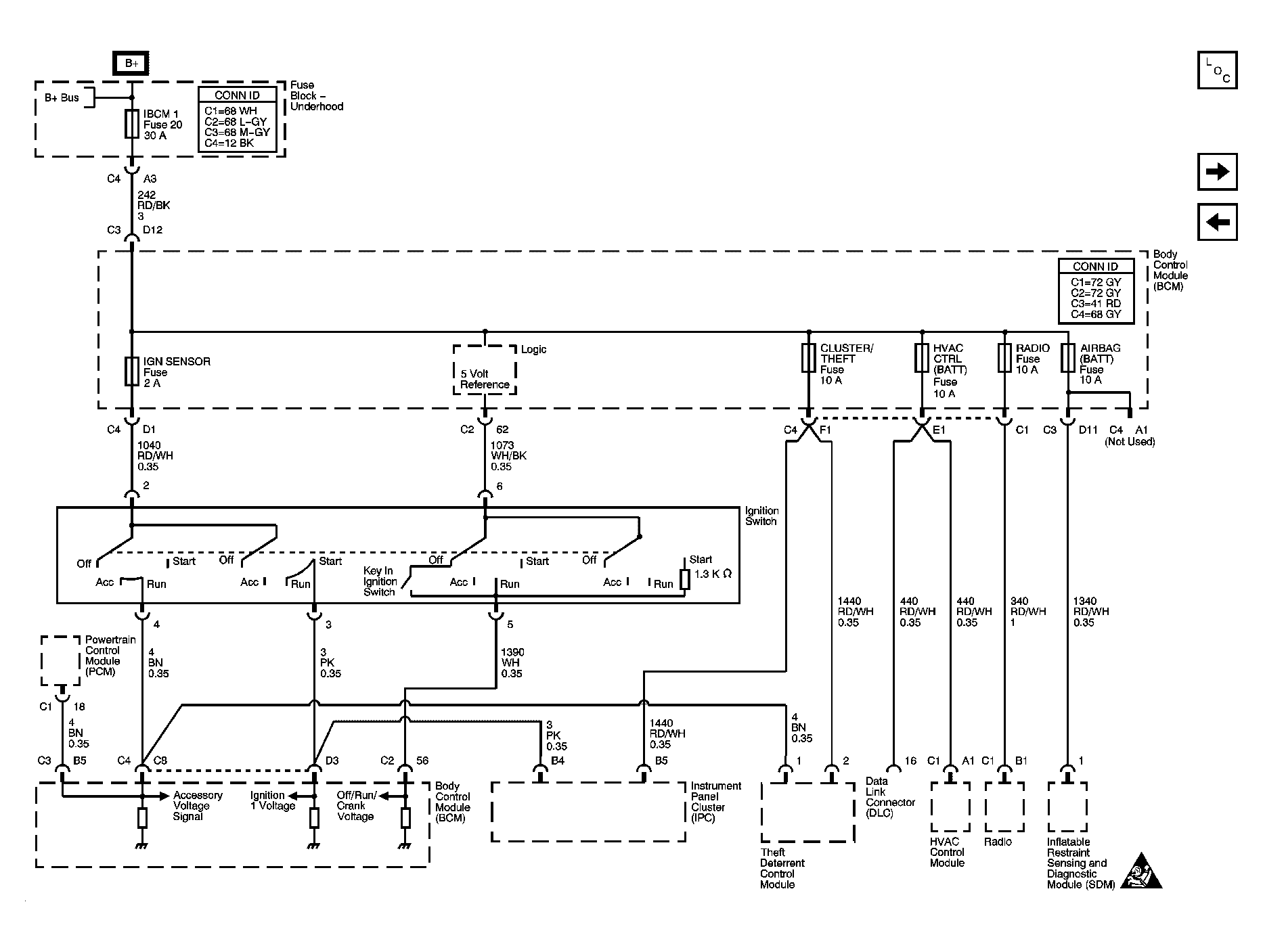

Fig 2: Fuse Block - Underhood - IBCM 1 Fuse, BCM - AIRBAG (BATT), CLUSTER/THEFT, HVAC CTRL (BATT), IGN SENSOR, RADIO FUSES, and Ignition Switch Schematic

Courtesy of GENERAL MOTORS CORP.

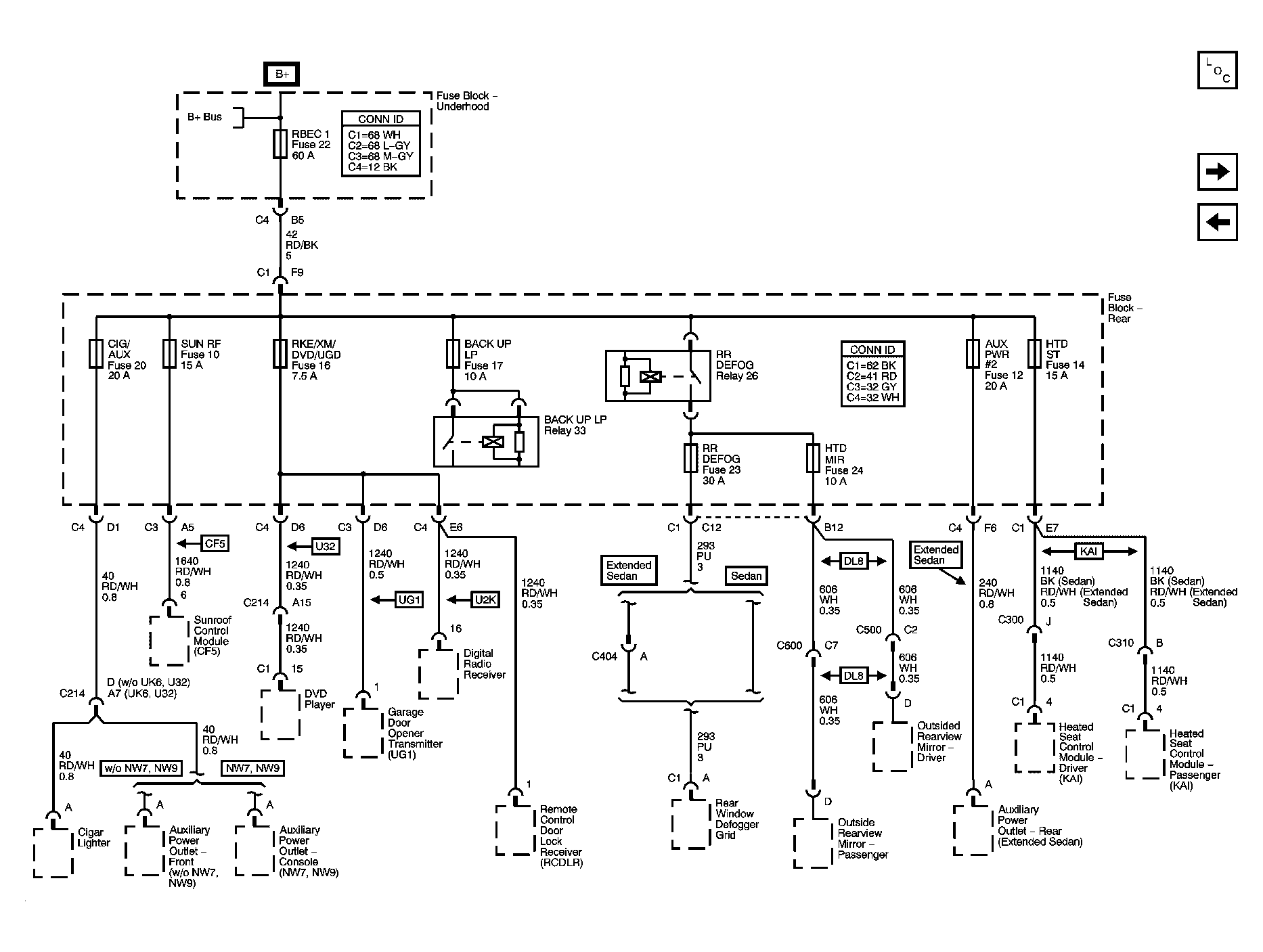

Fig 3: AUX PWR #2, BACK UP LP, CIG/AUX, HTD MIR, HTD ST, RBEC 1, RKE/XM/DVD/UGD, RR DEFOG, SUN RF Fuses, BACK UP LP, and RR DEFOG Relays Schematic

Courtesy of GENERAL MOTORS CORP.

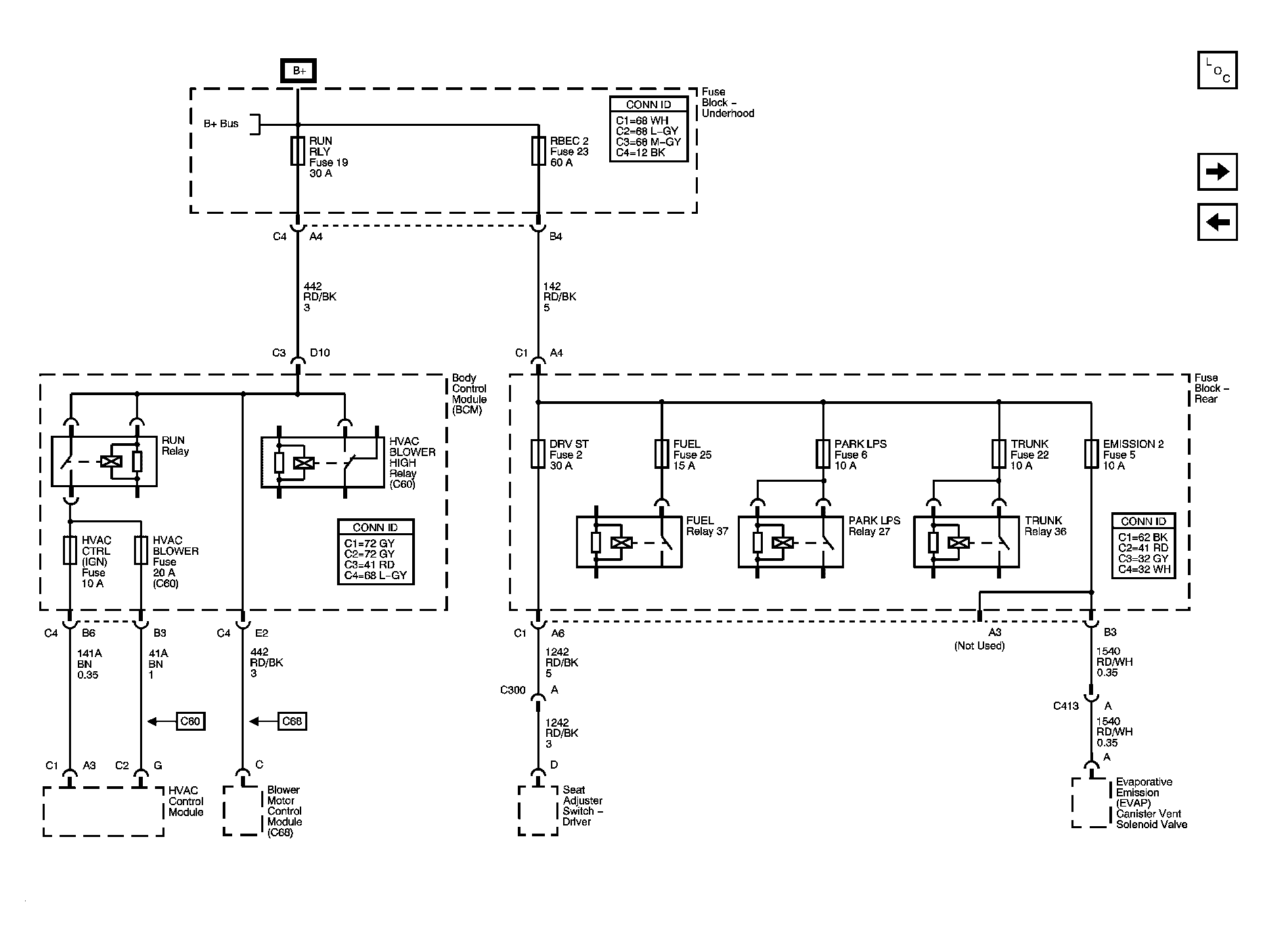

Fig 4: DRV ST, EMISSION 2, FUEL, PARK LPS, RBEC 2, RUN RLY, TRUNK Fuses and FUEL, PARK LPS, and TRUNK Relays, BCM - HVAC BLOWER, HVAC HEAD ECC Fuses, and HVAC BLOWER HIGH and RUN Relays Schematic

Courtesy of GENERAL MOTORS CORP.

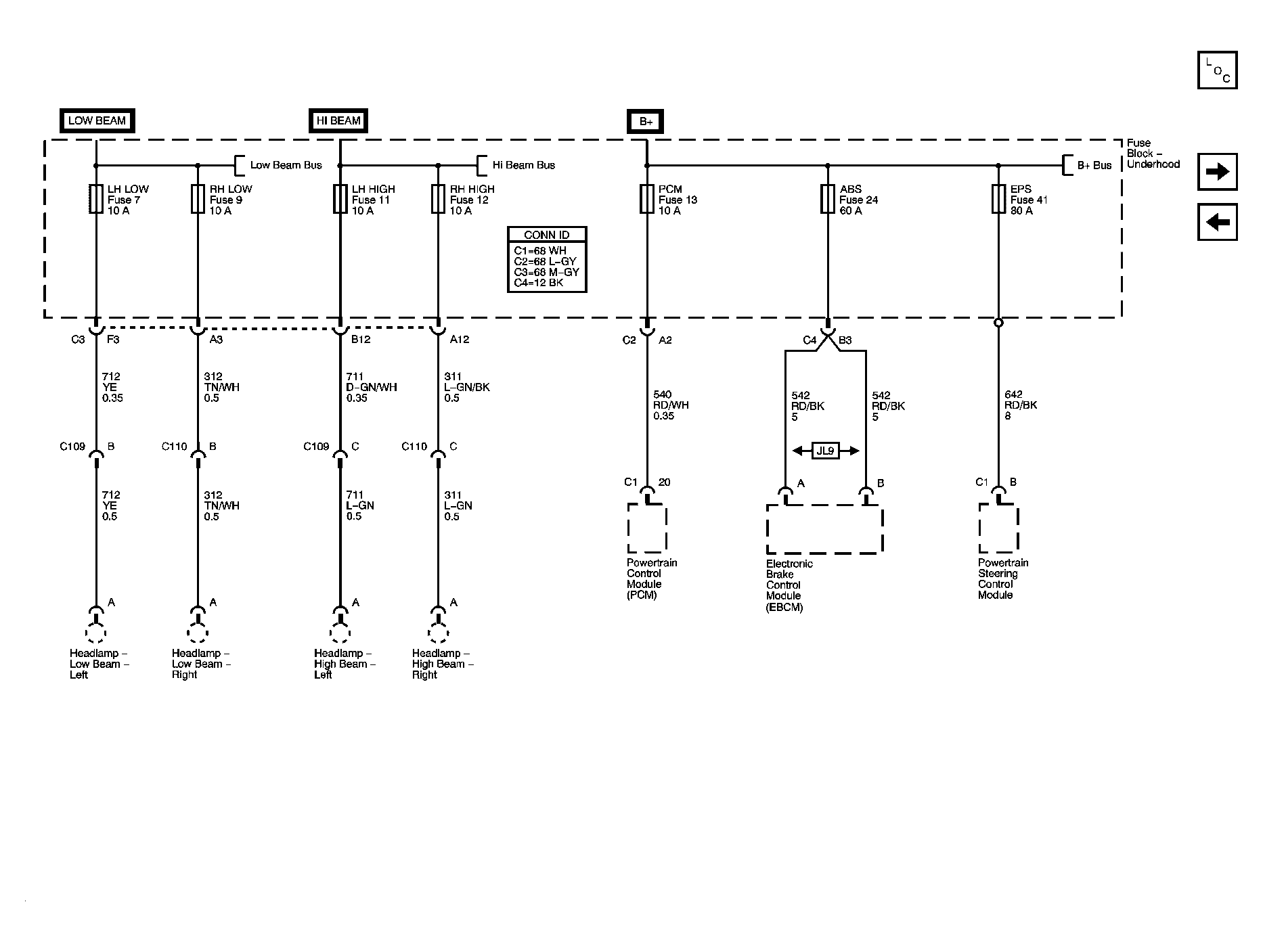

Fig 5: Fuse Block - Underhood - ABS, EPS, LH HIGH, LH LOW, PCM, RH HIGH, and RH LOW Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

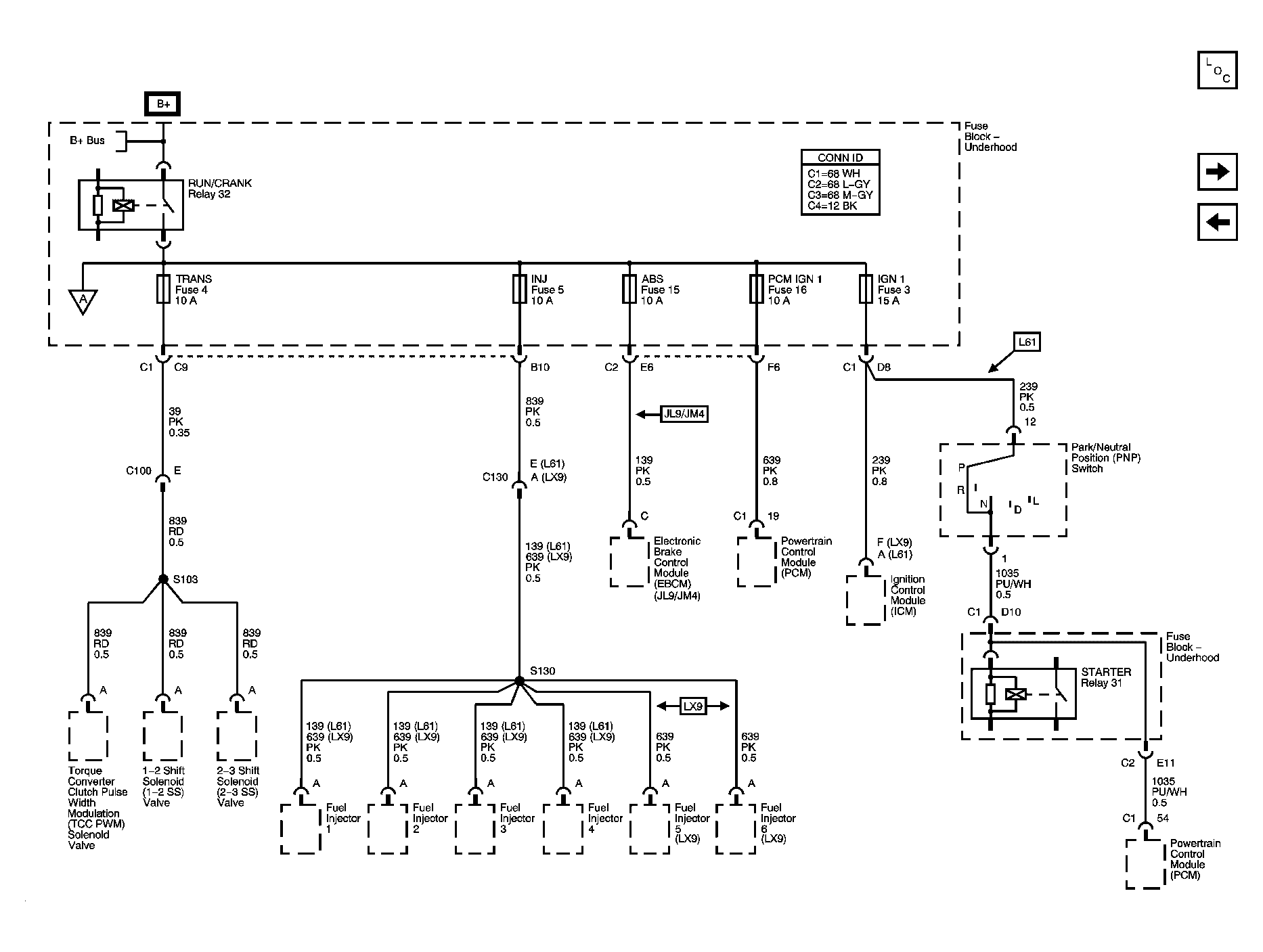

Fig 6: Fuse Block - Underhood - ABS, IGN1, INJ, PCM IGN 1, TRANS Fuses, and RUN/CRANK Relay Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: Fuse Block - Underhood - IBCM (R/C) Fuse, BCM - AIR BAG (IGN), EPS, and RUN/CRANK Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

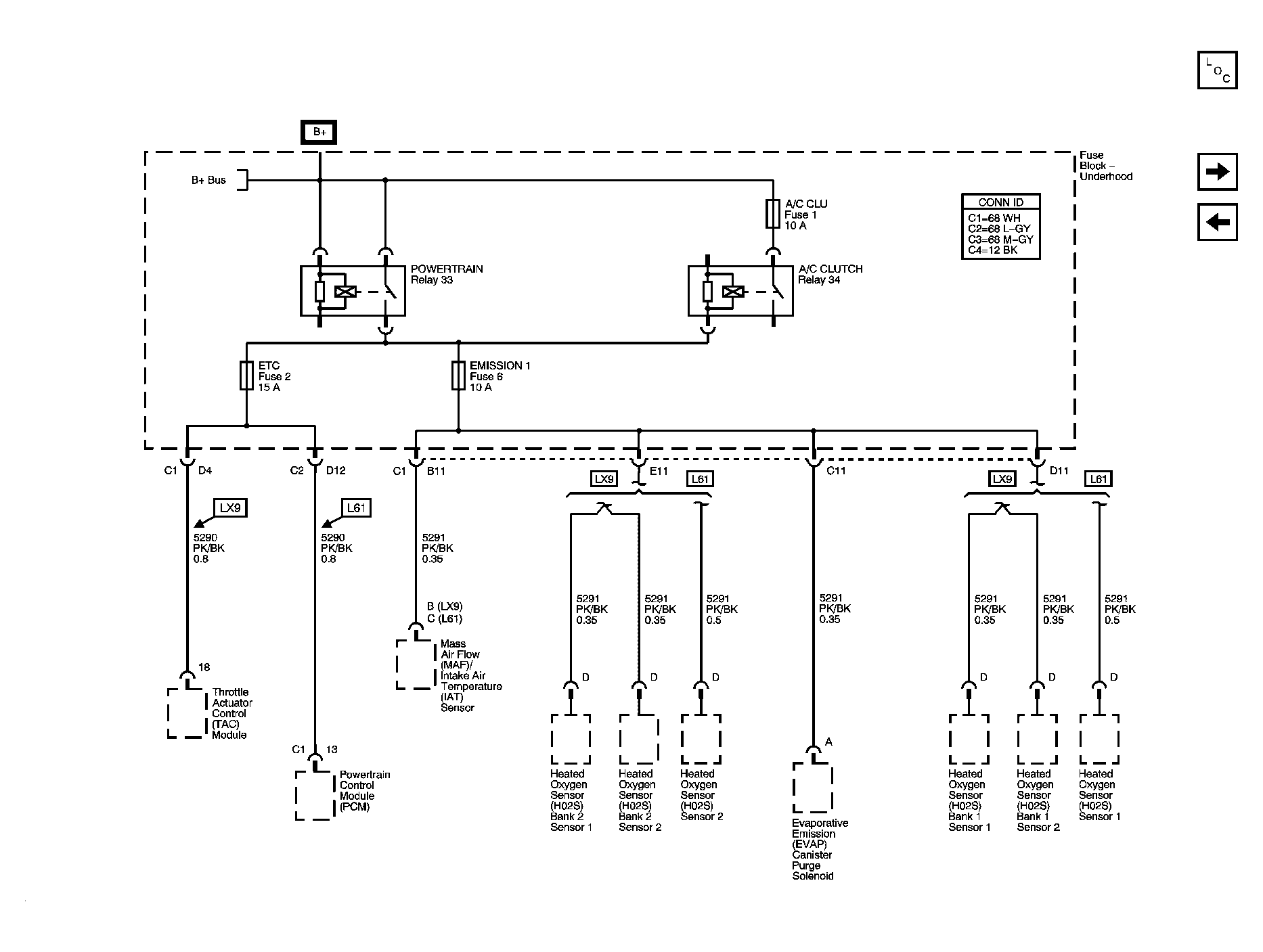

Fig 8: Fuse Block - Underhood - EMISSION 1, ETC Fuses, and A/C CLUTCH, POWERTRAIN Relays Schematic

Courtesy of GENERAL MOTORS CORP.

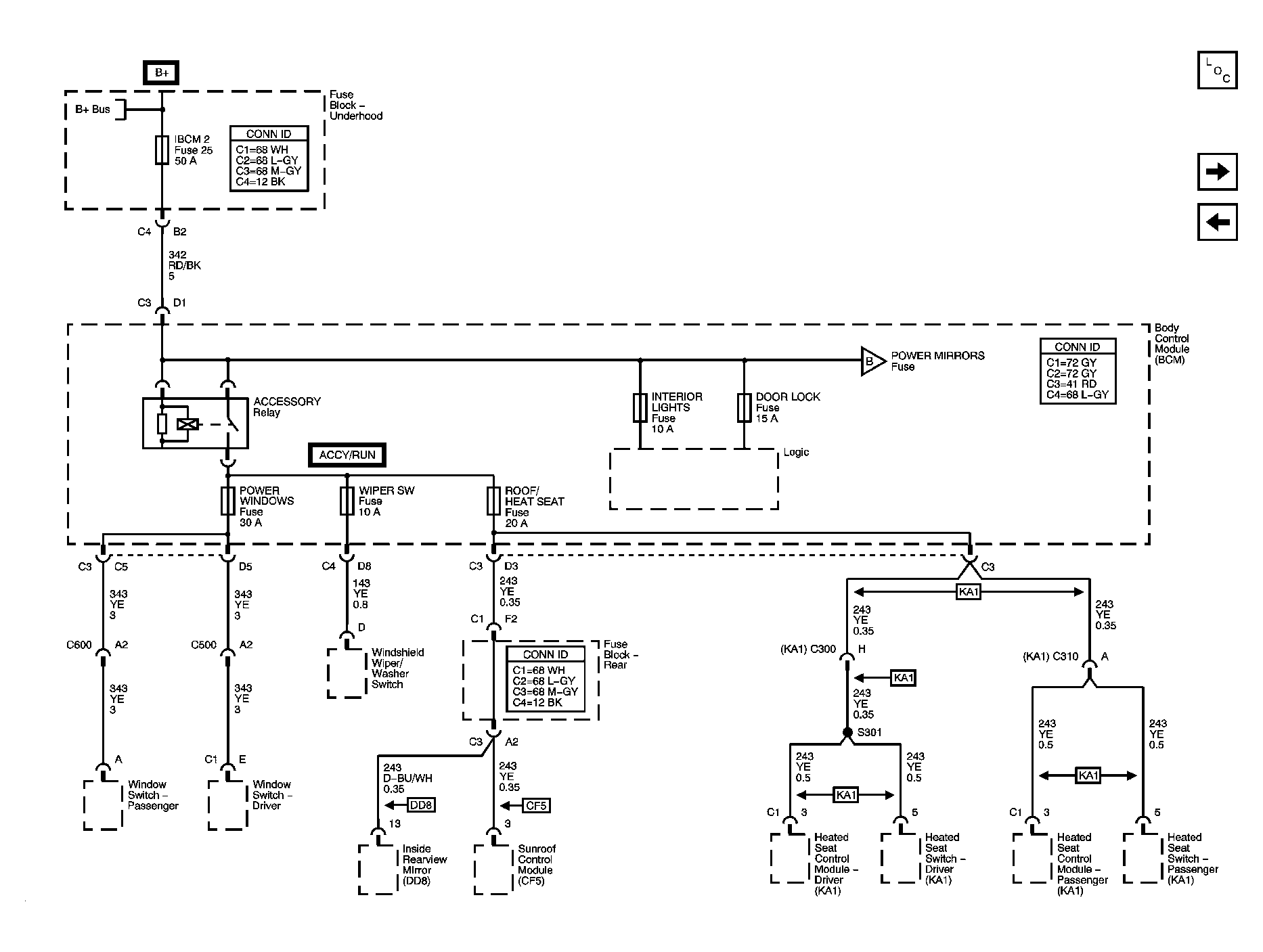

Fig 9: Fuse Block - Underhood - ICBM 2 Fuse, BCM - DOOR LOCK, INTERIOR LIGHTS, POWER WINDOWS, ROOF/HEAT SEAT, WIPER SW Fuses, and ACCESSORY Relay Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 10: BCM - ONSTAR, PEDAL, and POWER MIRRORS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.
