Fuel Hose/Pipes Routing Diagram

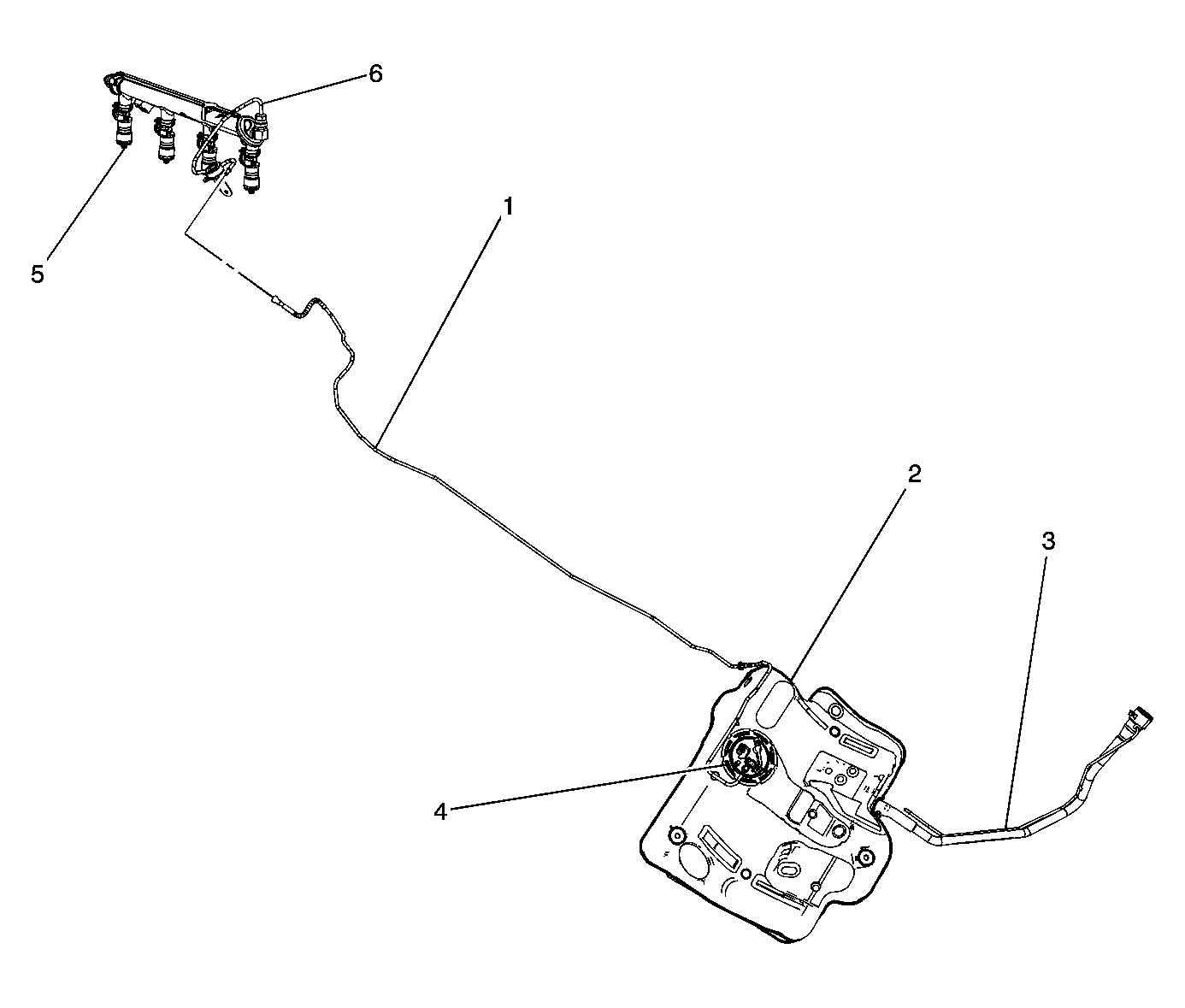

Fig 1: View Of Fuel Hose/Pipes Routing Diagram
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Chassis Fuel Feed Pipe
2
Fuel Tank
3
Fuel Fill Pipe
4
Fuel Sender Assembly
5
Fuel Rail Assembly
6
Engine Compartment Fuel Feed Pipe
