Wiper Arm Blade Replacement
WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.
Wiper Arm Blade Replacement

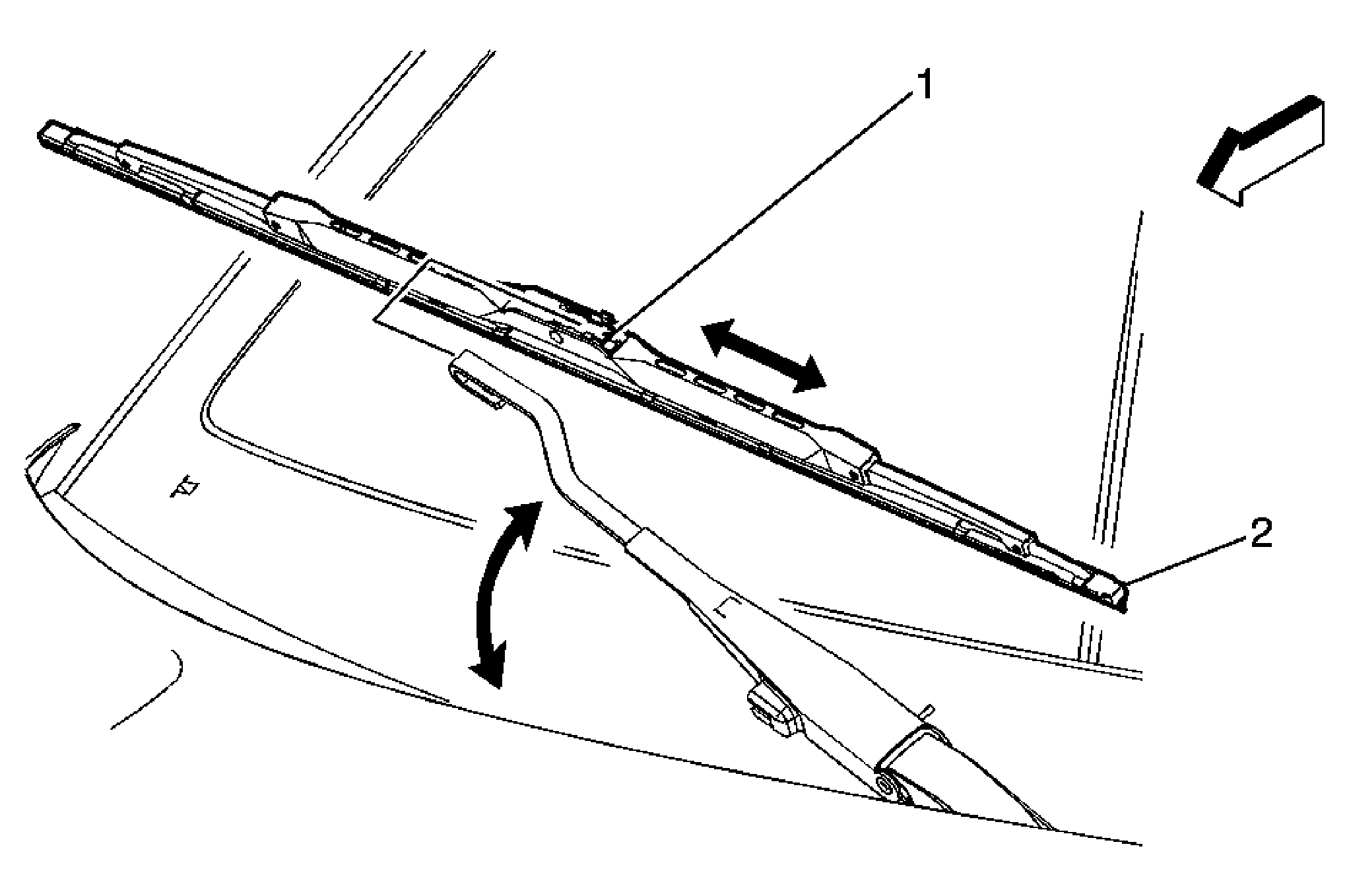

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Lift upward, "service up" the wiper arm from the windshield. |
|
| 1 | Tab, Release Tip: From the drivers side of the vehicle, apply downward pressure to the tab and pull wiper blade from the wiper arm hook. |
| 2 | Blade Assembly, Windshield Washer Tip: There is a right and left windshield washer blade assembly. |
