ABS Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
C101 |
| 2 |
G151 |
| 3 |
A/C Refrigerant Pressure Sensor |
| 4 |
C113 |
| 5 |
Electronic Brake Control Module (EBCM) |
| 6 |
Cruise Control Module (CCM) |
Courtesy of GENERAL MOTORS CORP.

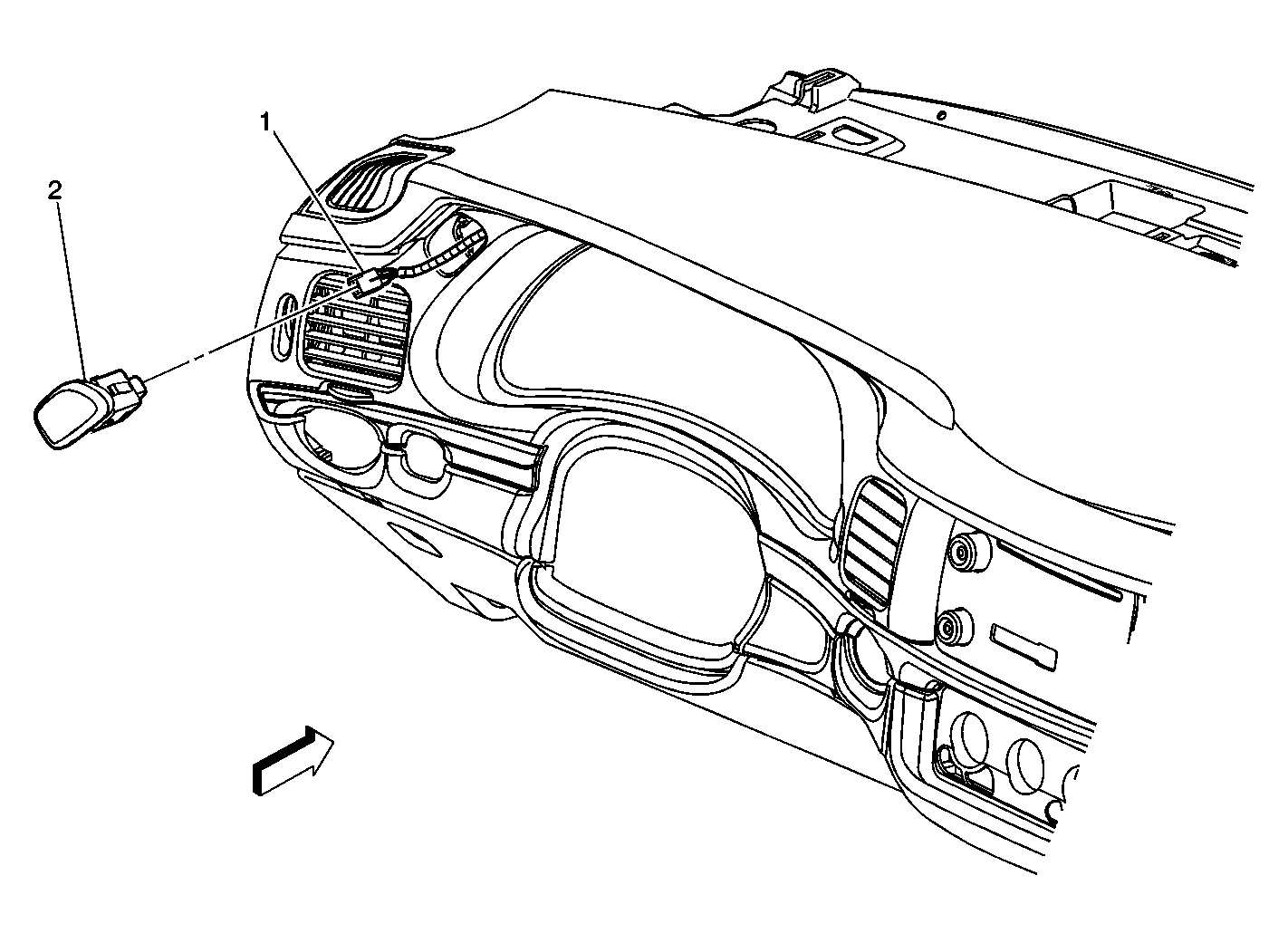

| Callout |
Component Name |
| 1 |
Traction Control Switch Connector |
| 2 |
Traction Control Switch |
Courtesy of GENERAL MOTORS CORP.

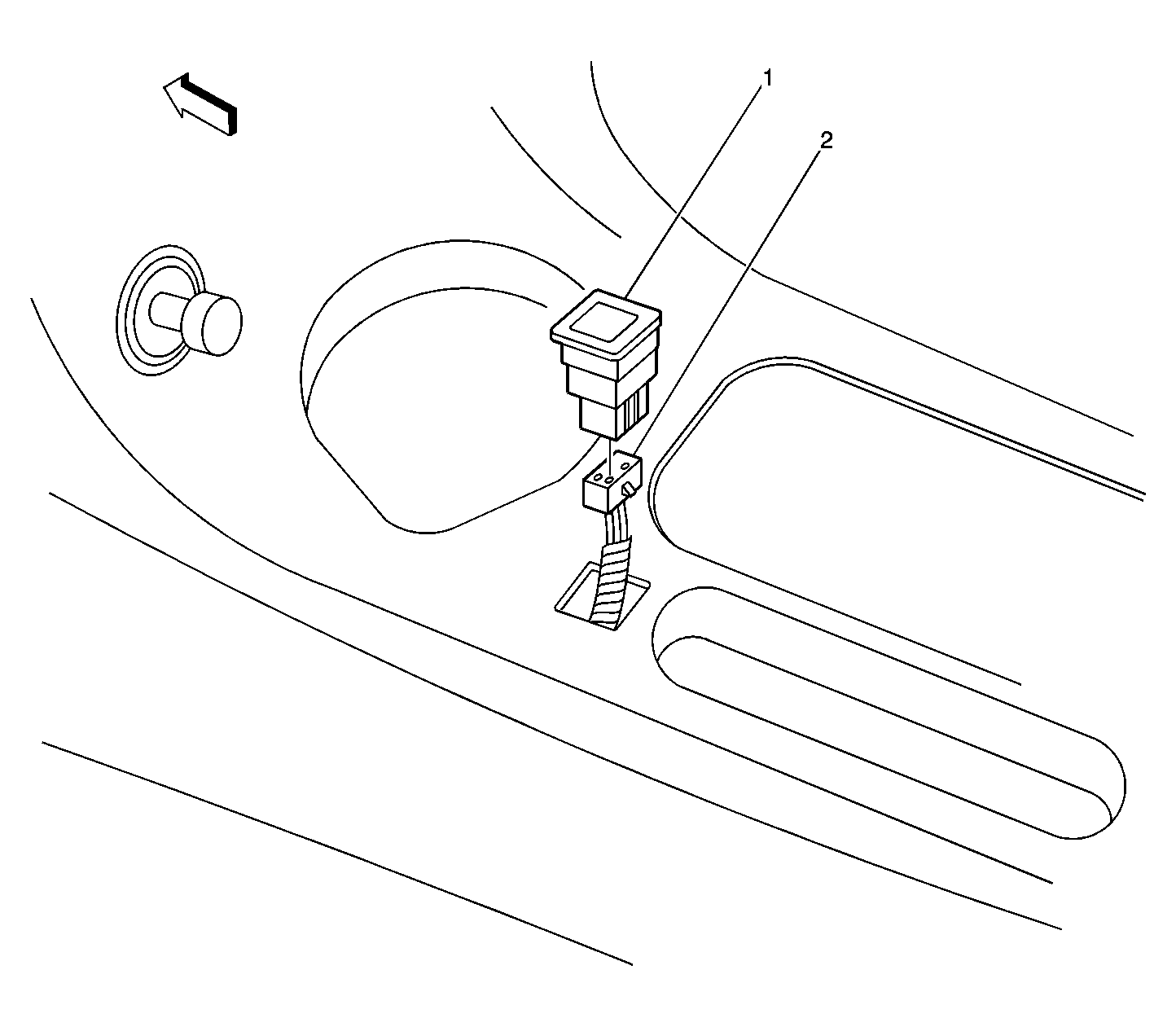

| Callout |
Component Name |
| 1 |
Traction Control Switch |
| 2 |
Traction Control Switch Connector |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |

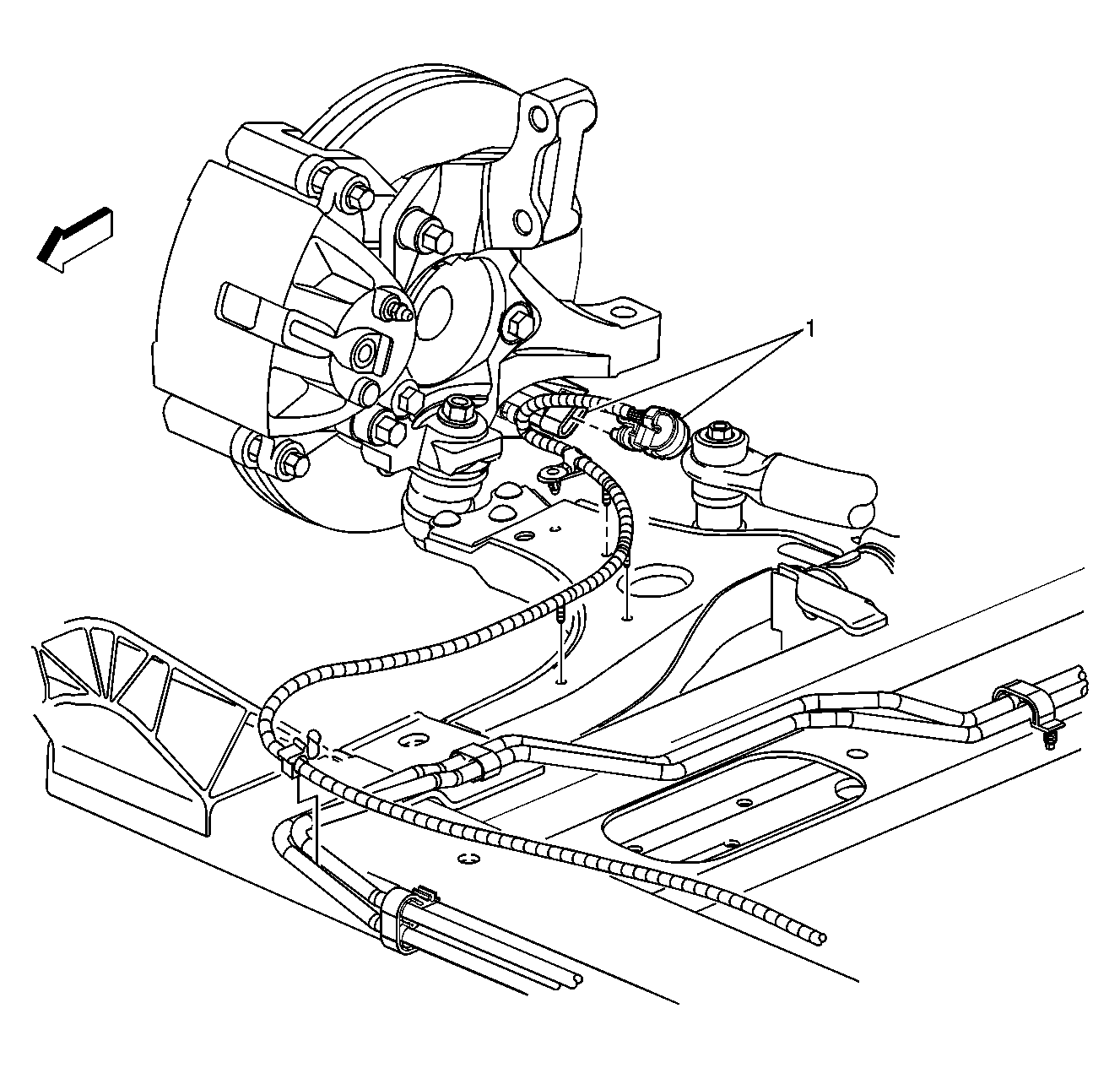

| 1 |
Wheel Speed Sensor (WSS)-RF |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Wheel Speed Sensor (WSS)-RR |
| 2 |
Strut Assembly |
