Fuel Hose/Pipes Routing Diagram (With L36)

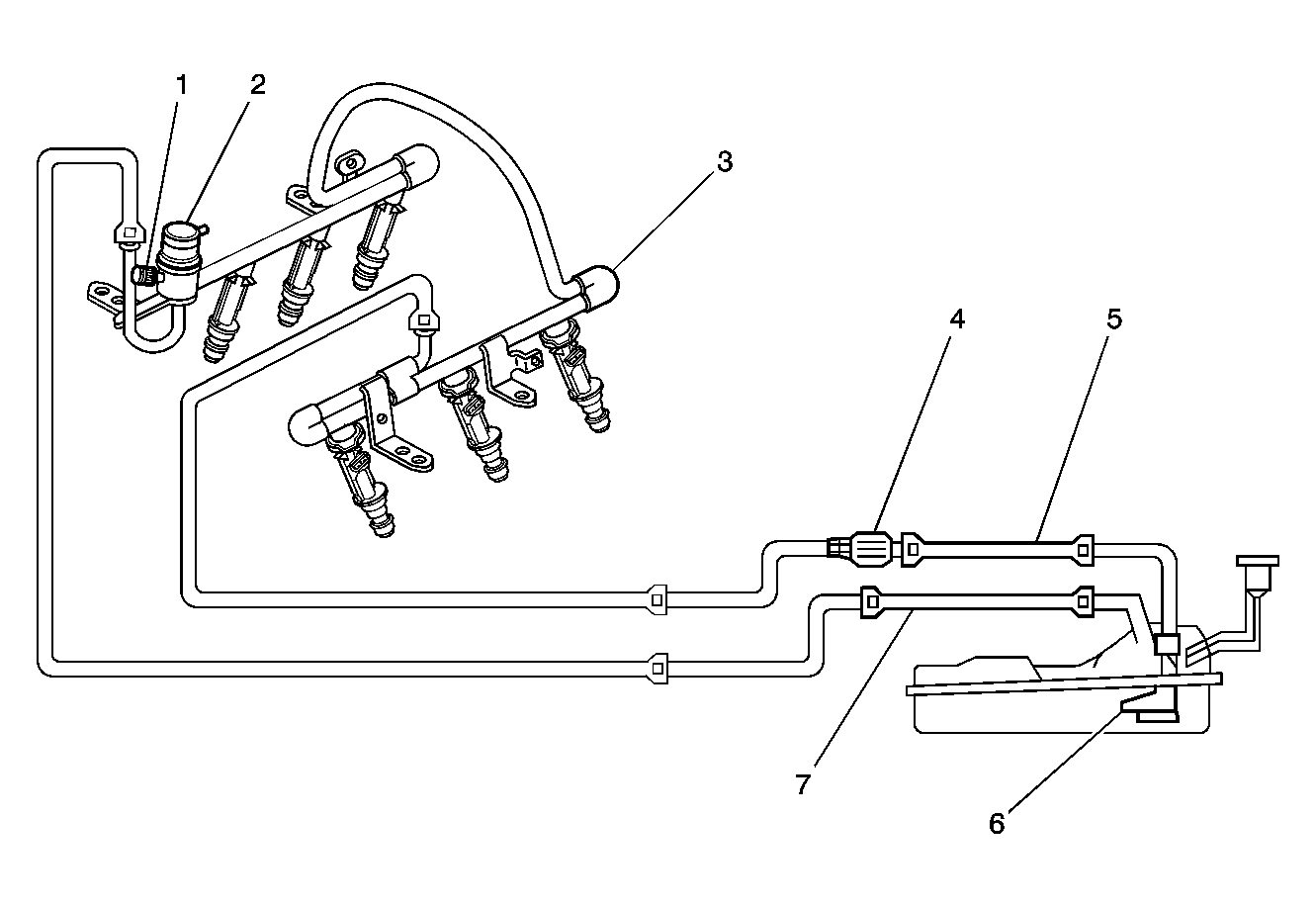

Fig 1: Fuel Hose/Pipes Routing Diagram (With L36)
GM911297Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Pressure Service Connection
2 Fuel Pressure Regulator
3 Fuel Injector Rail
4 Fuel Filter
5 Fuel Feed Pipe
6 Fuel Pump Module
7 Fuel Return Pipe
