Installation Procedure

Install the front door power mirror switch to the front door armrest pull cup. Refer to Power Mirror Switch Replacement (Impala) or Power Mirror Switch Replacement (Monte Carlo) .
Install the front and/or rear door armrest power window switch to the front and/or rear door armrest pull cup.
- For the front door refer to Power Window Switch Replacement (Impala) or Power Window Switch Replacement (Monte Carlo) .
- For the rear door refer to Power Window Switch Replacement - Rear Door (Impala) .
Install the front and/or rear door armrest pull cup to the front and/or rear inner door trim panel pressing into place until fully seated.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the screws to the front and/or rear door armrest pull cup
Tighten: Tighten the screws to the front and/or rear door armrest pull cup to 6 N.m (53 lb in).

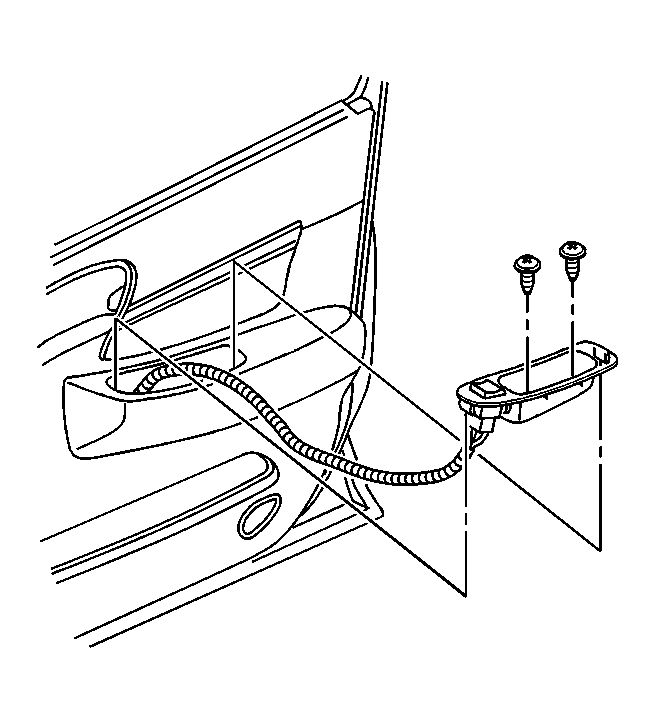

Fig 1: Armrest Pull Cup (Impala)

Courtesy of GENERAL MOTORS CORP.
