Front Frame

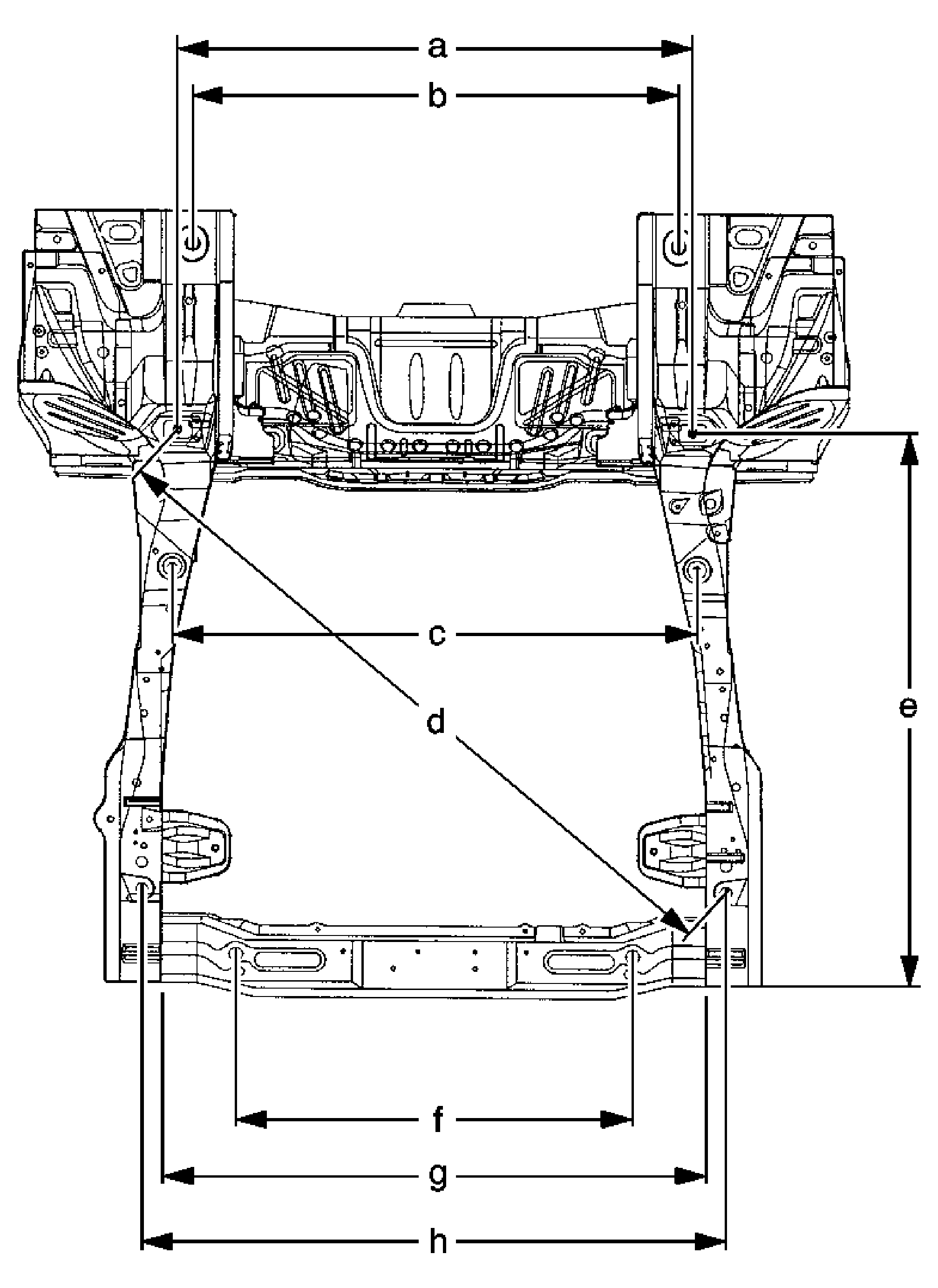

Fig 1: View Of Front Frame Dimensions

Courtesy of GENERAL MOTORS CORP.

Points	Dimensions (mm)	Dimensions (in)
IMPORTANT: Reference dimensions show the distance between the center of positioning holes shown in illustrations.
A	909	35.8
B	860	33.9
C	925	36.4
D	1,300	51.2
E	870	34.3
F	687	27.0
G	956	37.6
H	1028	40.5
