September 30: LEMON manuals is back up on a temporary server! Slowness is possible

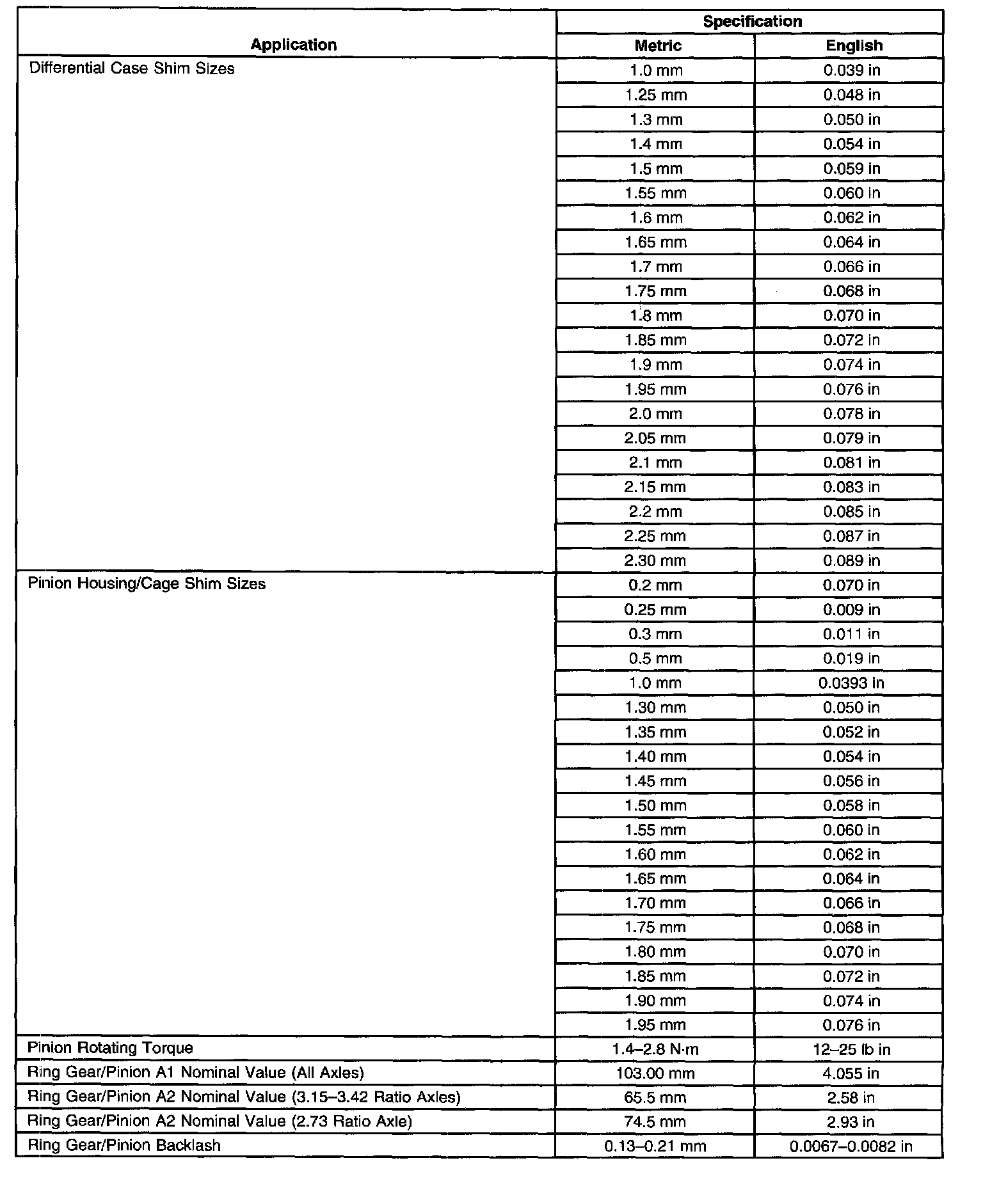

Rear Axle Specifications
Rear Axle Specifications
Rear Axle Specifications
Rear Axle Usage
Available Axle Ratios
