Drive/Propeller Shaft

Driveline Disassembled Views

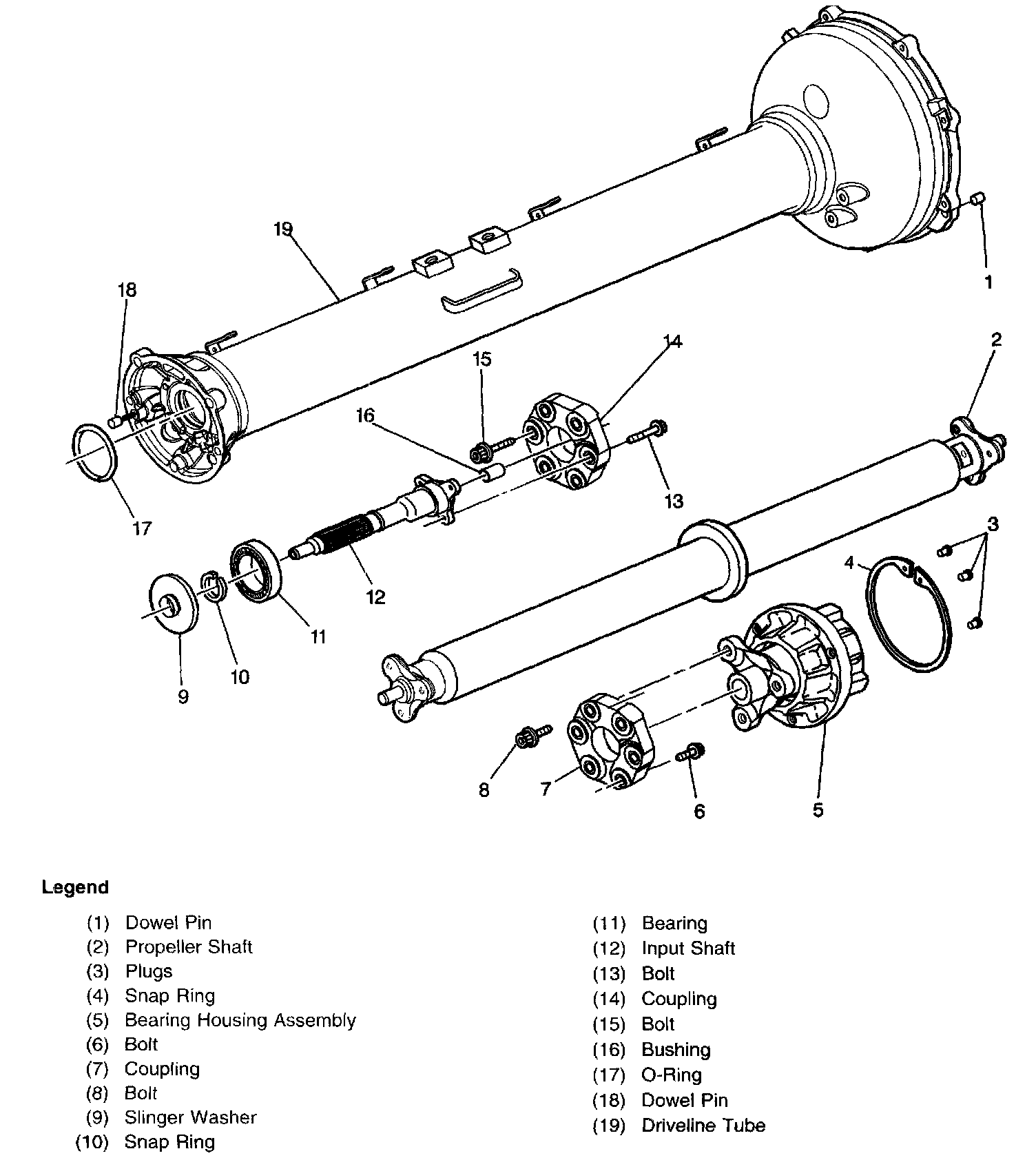

Driveline Assembly (Manual Transmission)

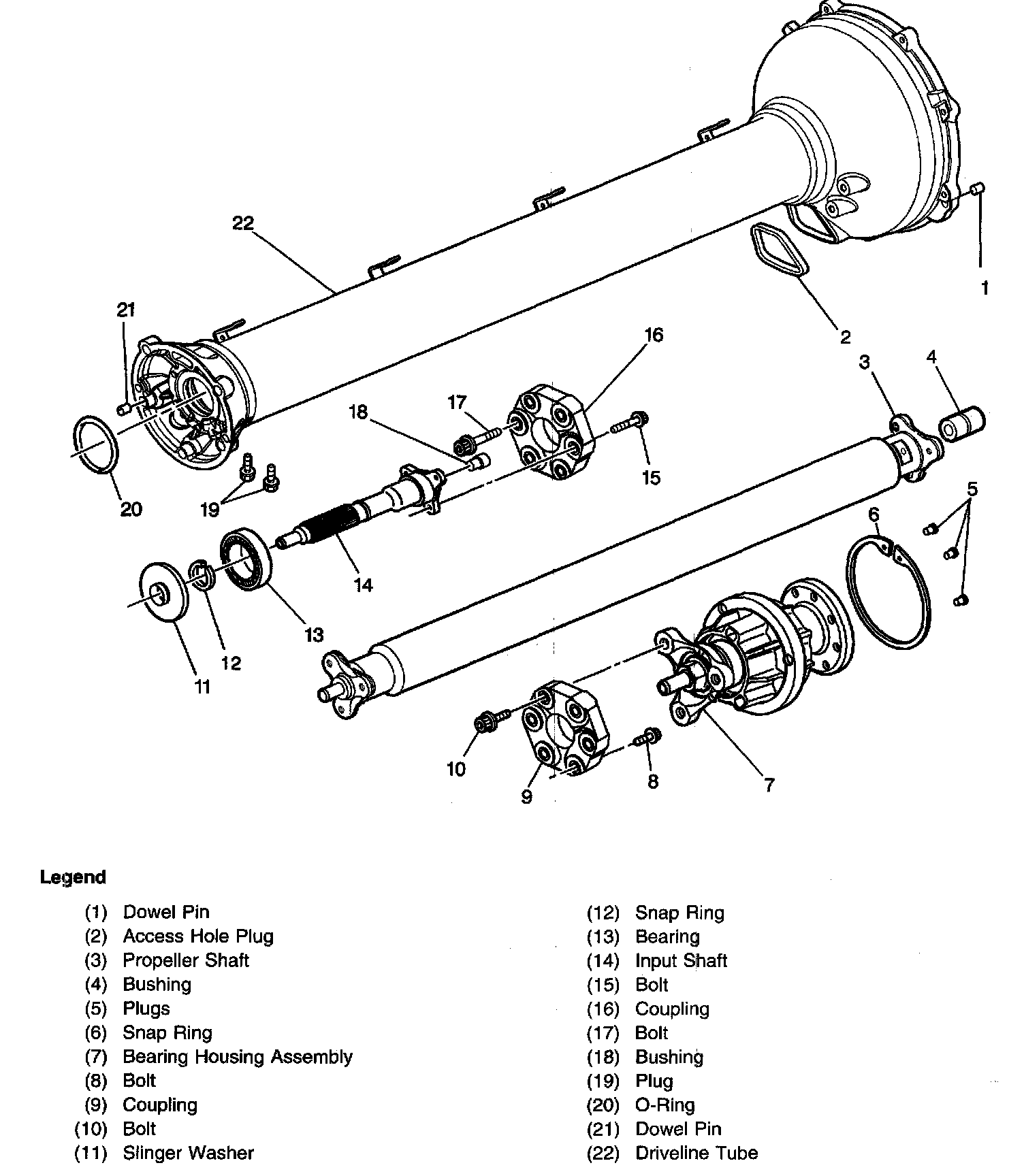

Driveline Assembly (Automatic Transmission)

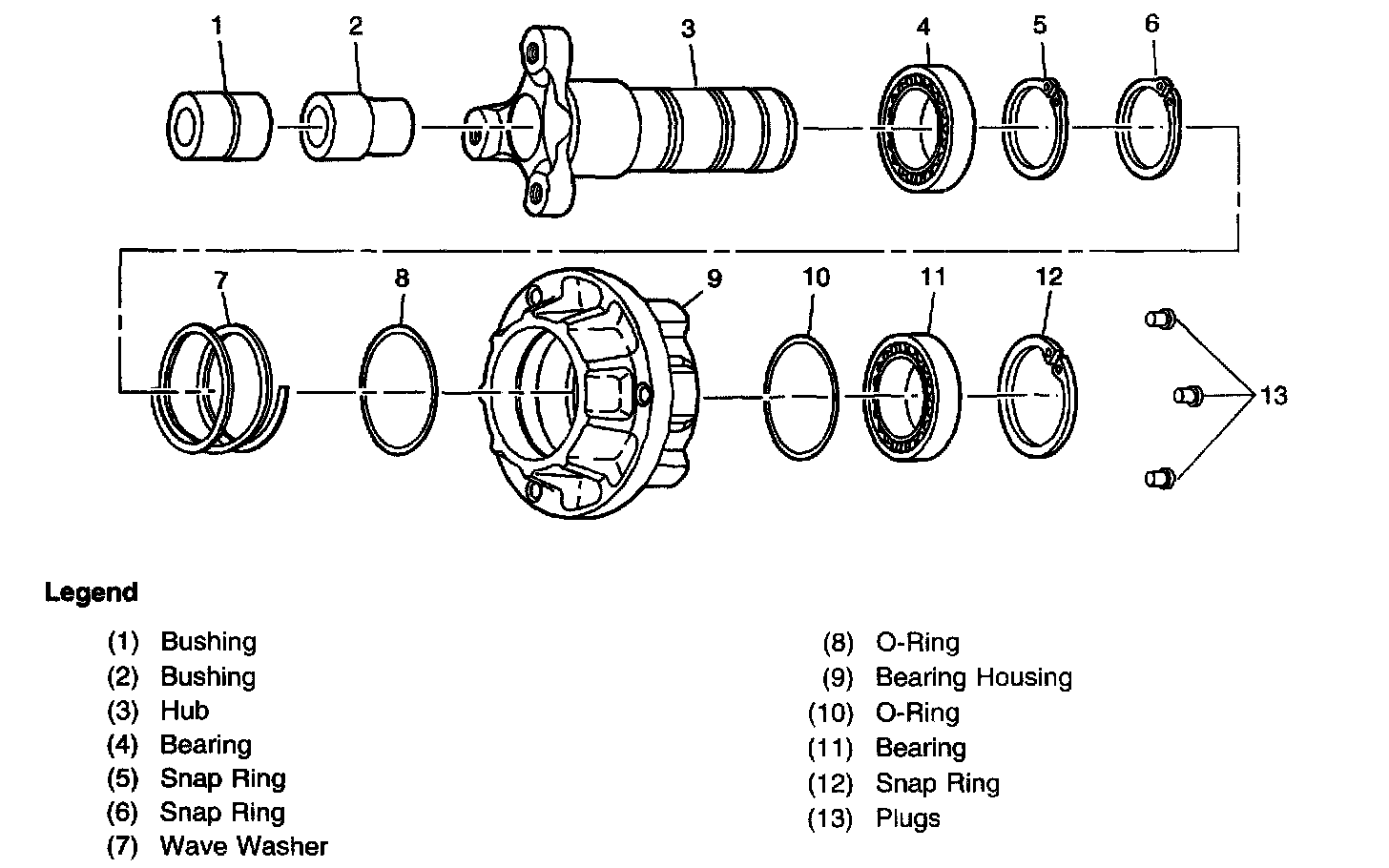

Rear Bearing Housing Assembly (Manual Transmission)

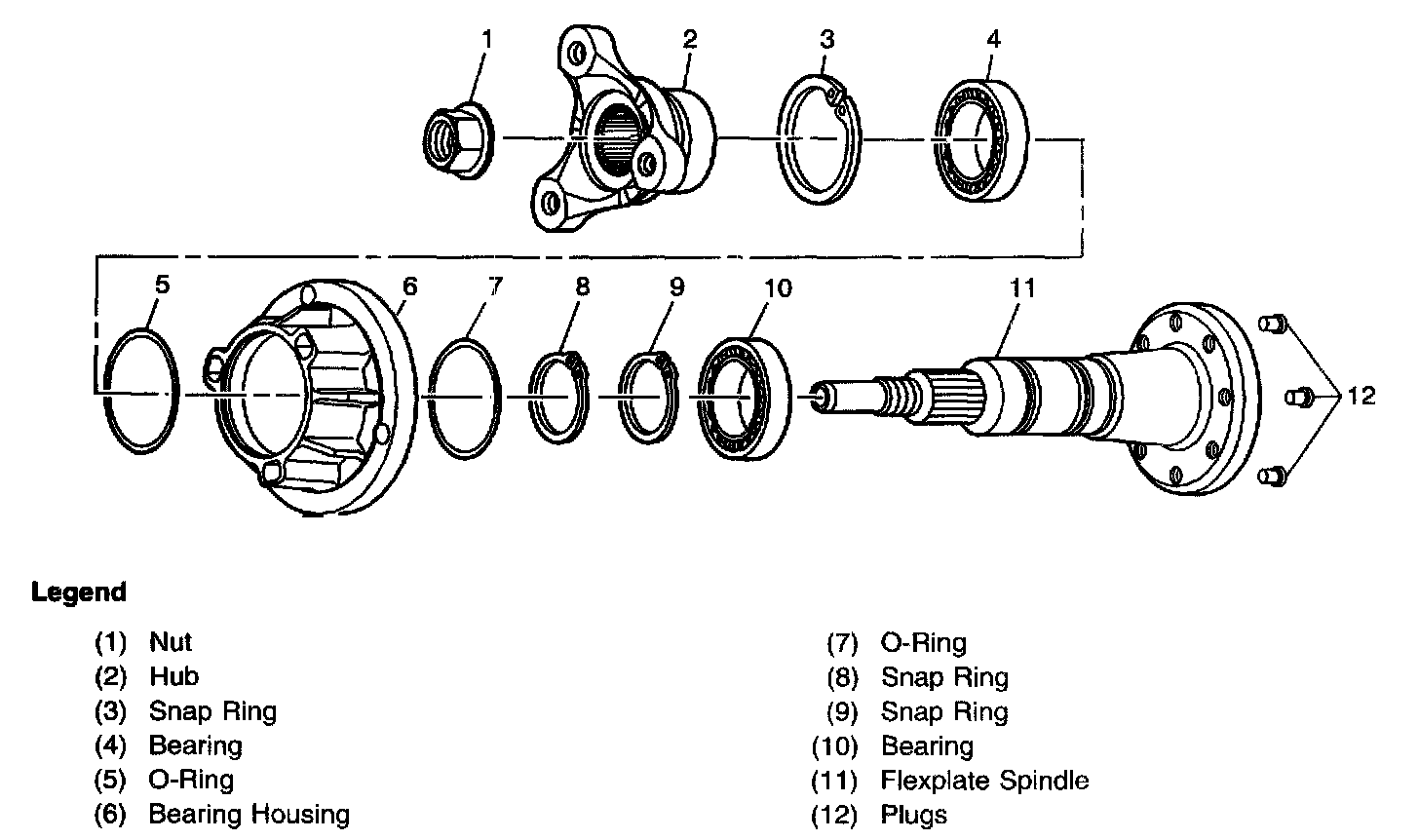

Rear Bearing Housing Assembly (Automatic Transmission)
