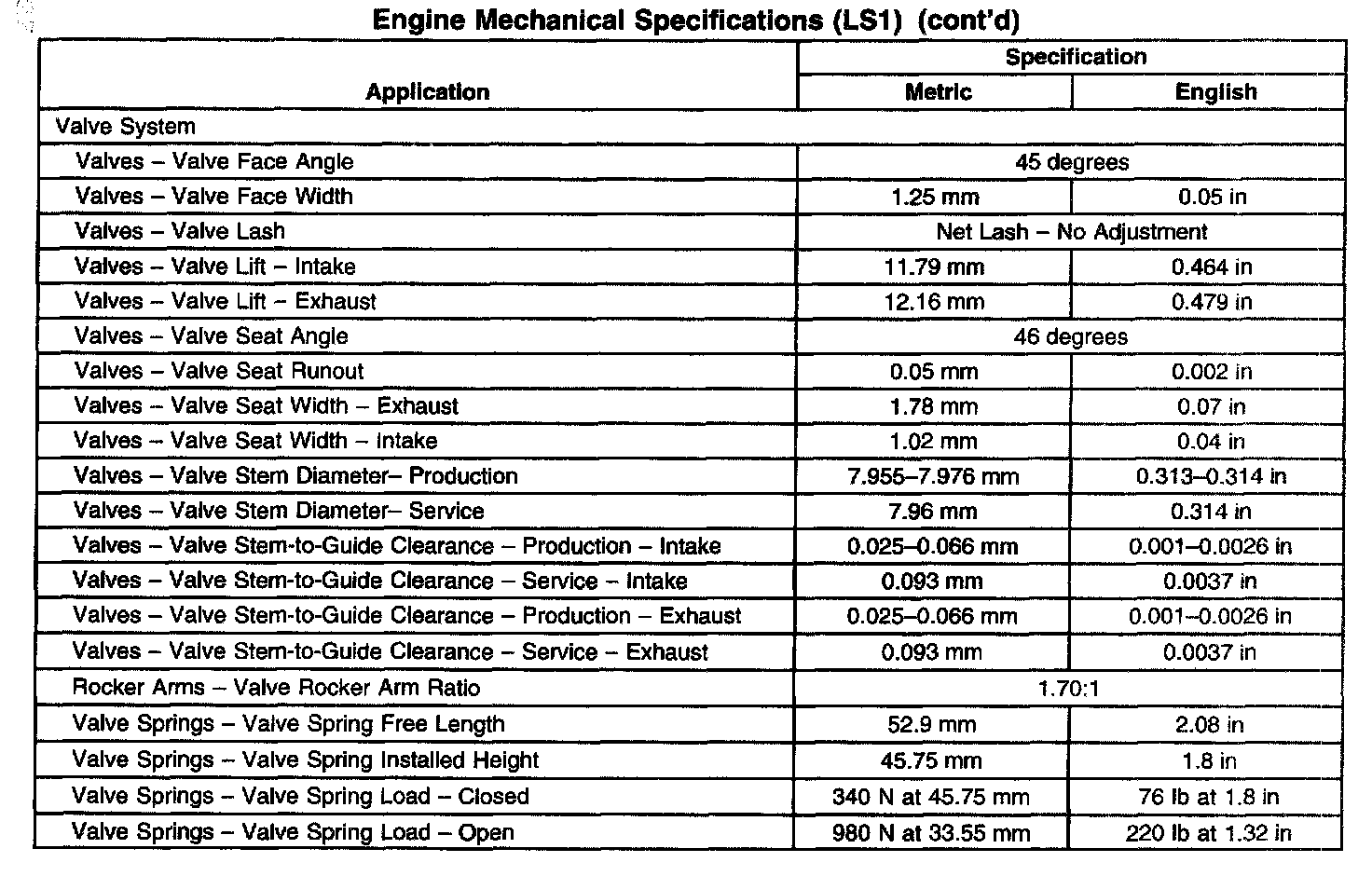

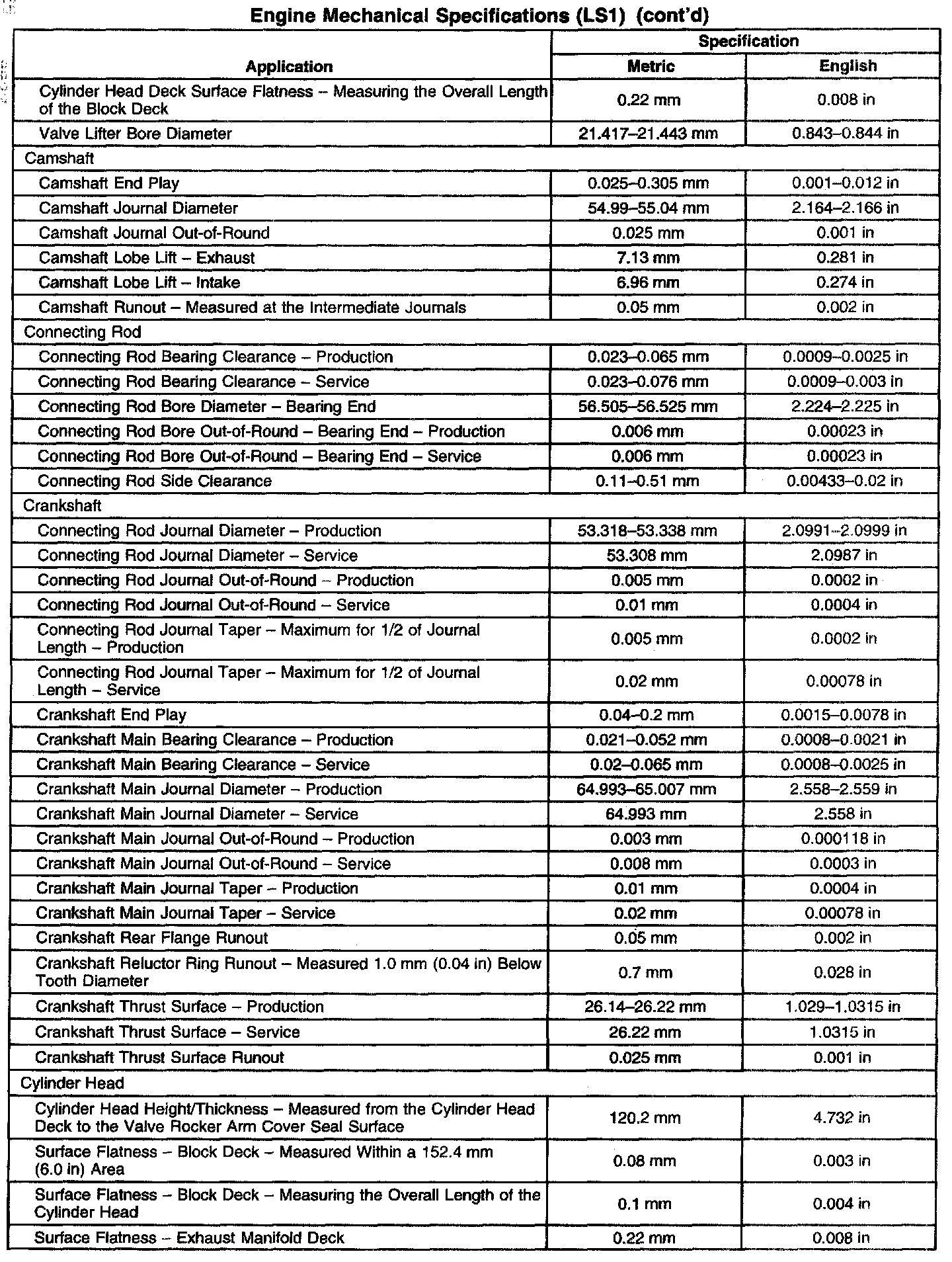

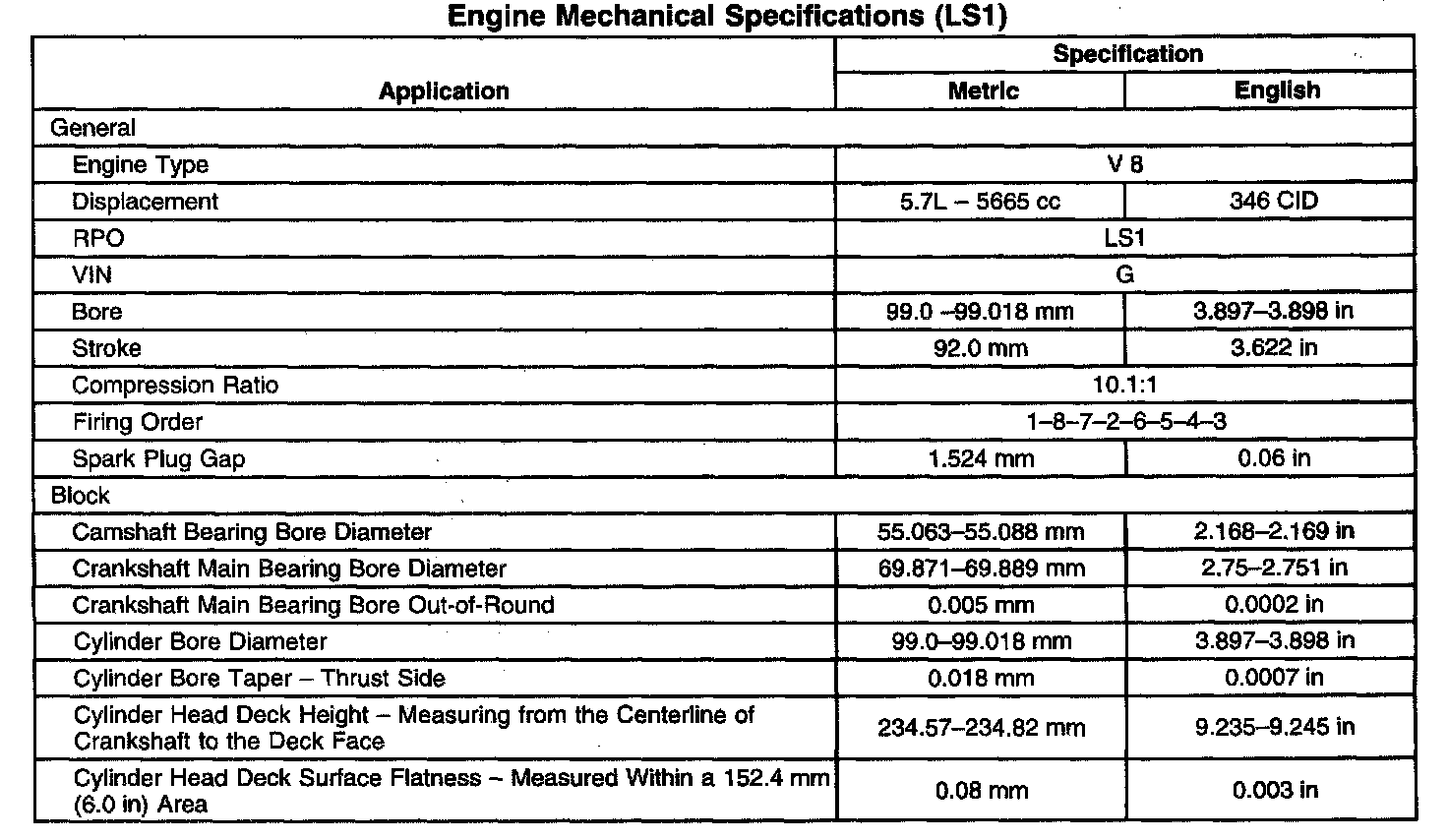

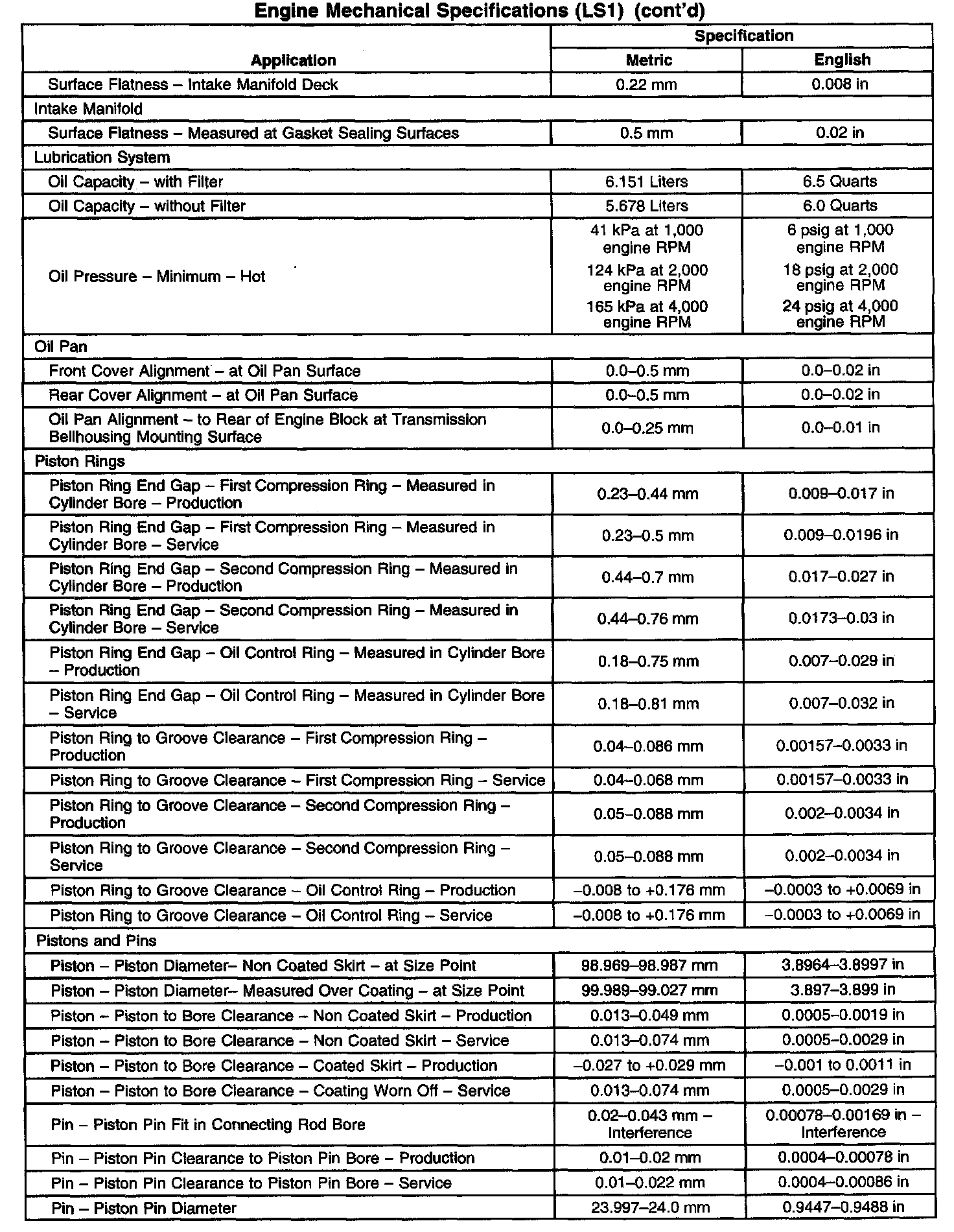

Engine Mechanical Specifications

Engine General Specifications




1 of 4




2 of 4




3 of 4




4 of 4
