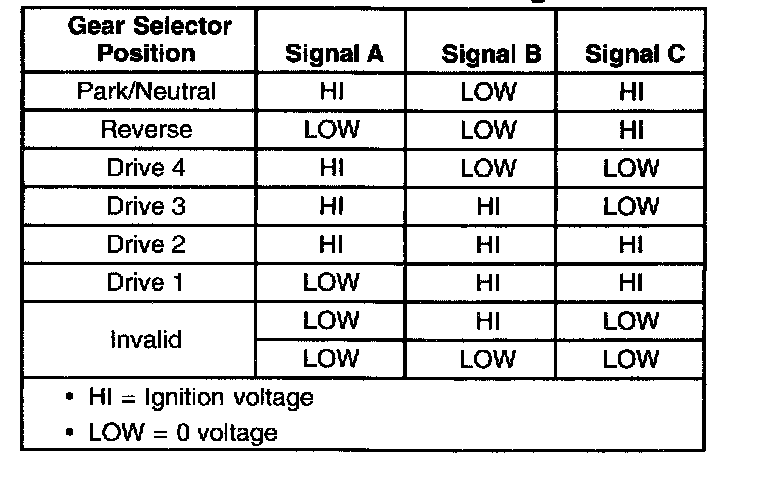

Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic

Transmission Fluid Pressure (Tfp) Manual Valve Position Switch Logic:
