A/T Inline 20-Way Connector End View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

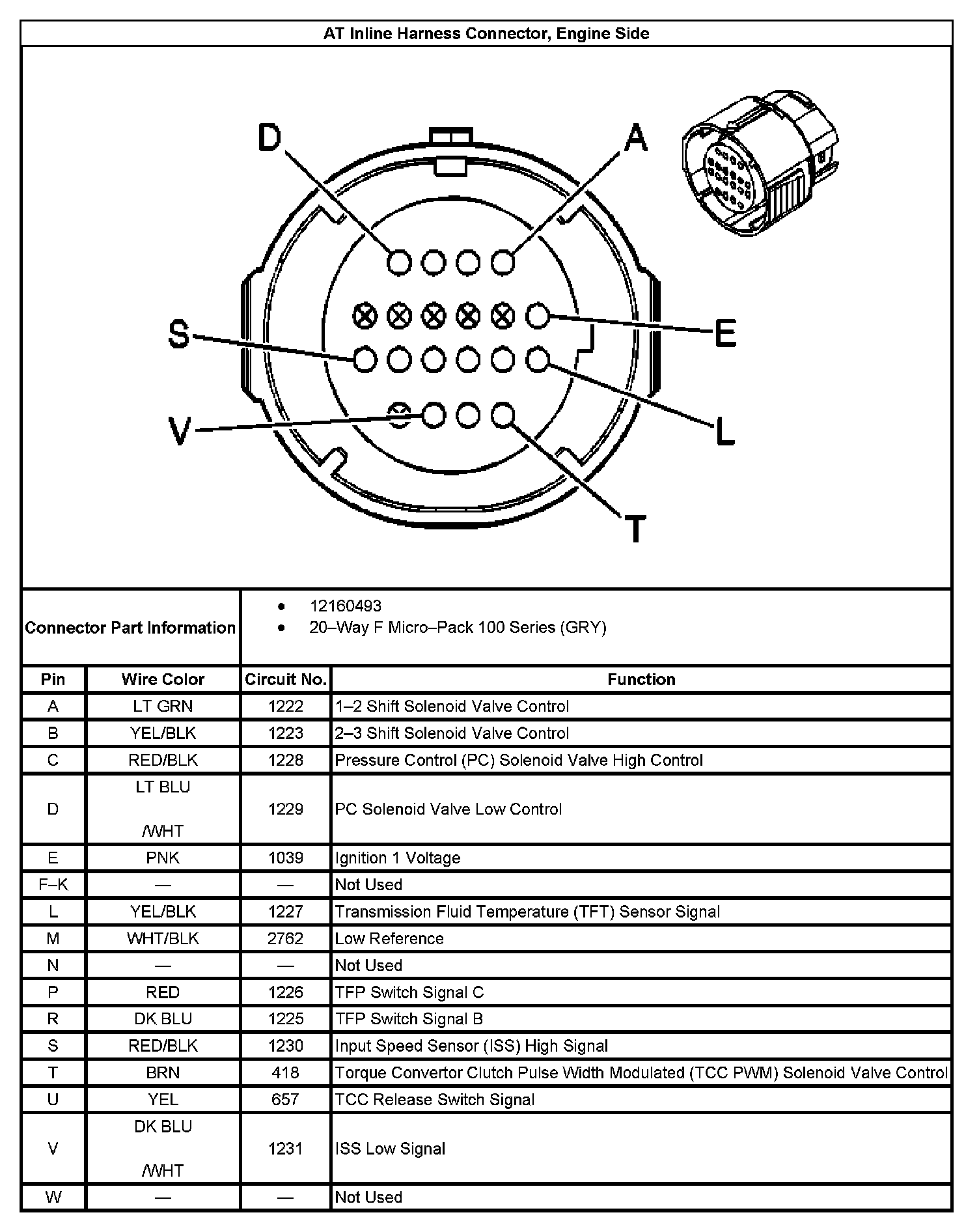

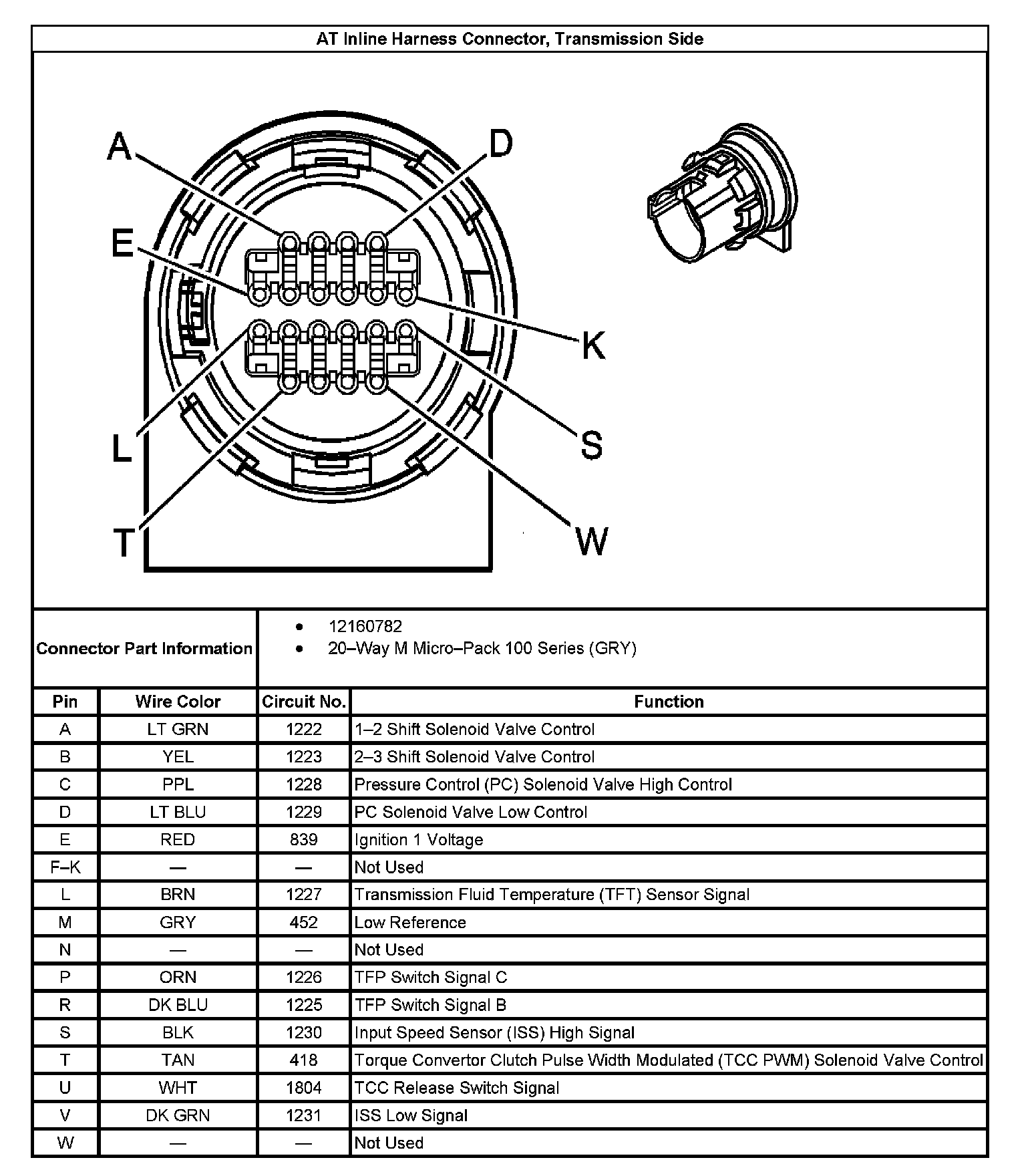

A/T Inline 20-Way Connector End View
