Cellular Communication Component Views

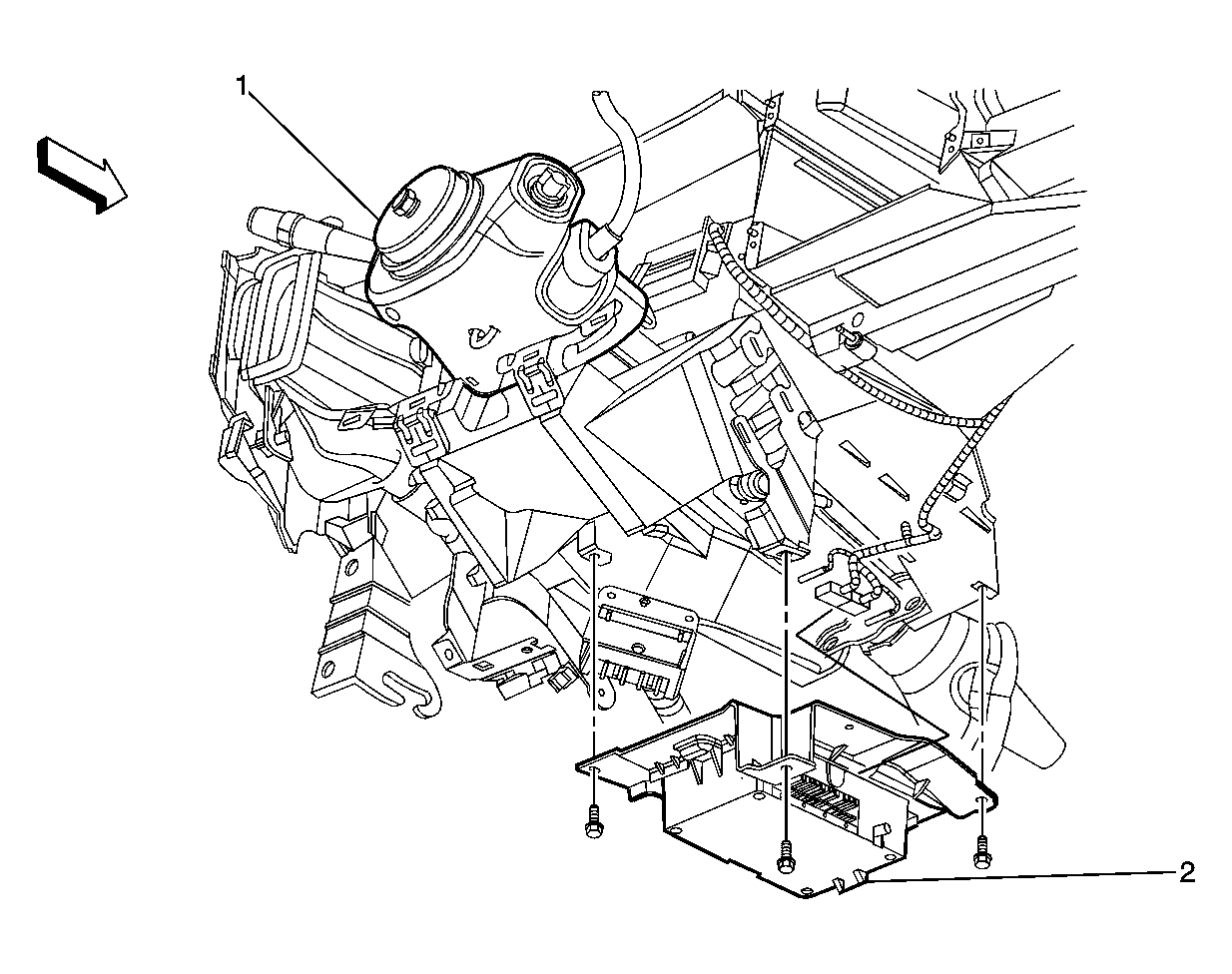

Fig 1: Lower Left Of The I/P Component View
GM1460019Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Column
2 Vehicle Communication Interface Module (VCIM)

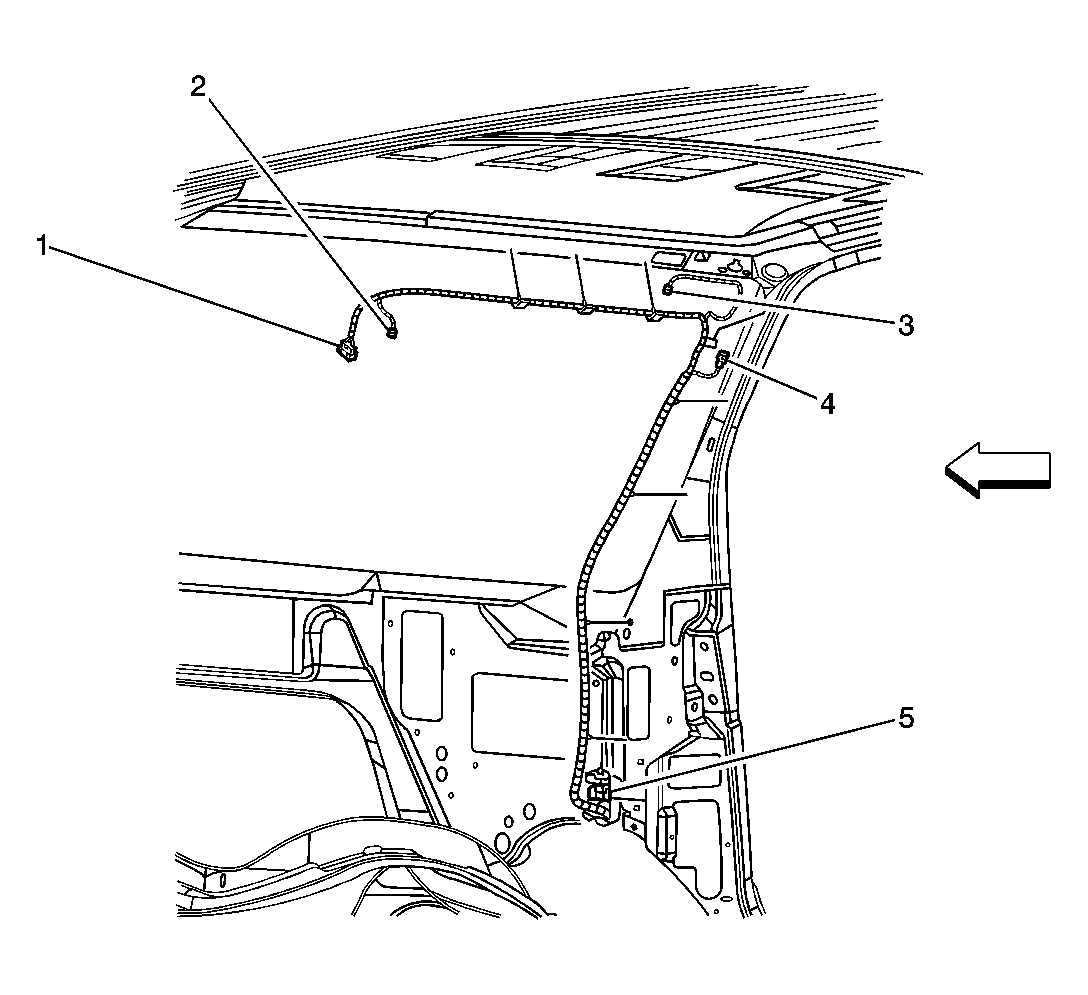

Fig 2: Mobile Telephone, Navigation & Inside Rearview Mirror Harness Component View
GM883904Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Rearview Mirror Connector (DF5/UE1)
2 Navigation Antenna Connector (UE1)
3 Cellular Antenna Connector (UE1)
4 Cellular Telephone Microphone Connector (UE1)
5 C225 (DF5/UE1)
