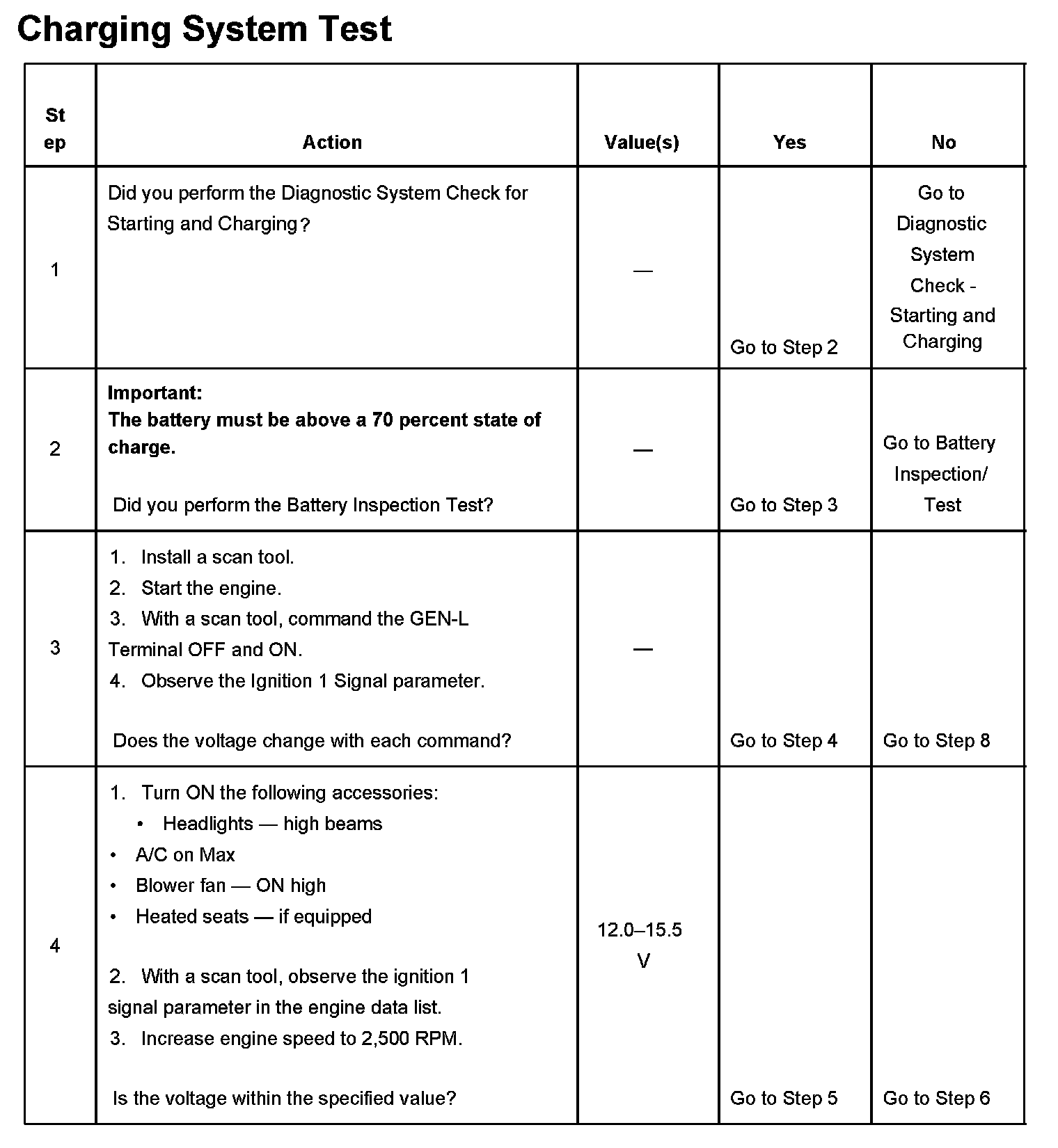

Charging System Test

Steps 1 - 4:



Steps 5 - 6:



Steps 7 - 9:



Steps 10 - 15:



Steps 16 - 19:
