Automatic Transmission/Transaxle

Specifications

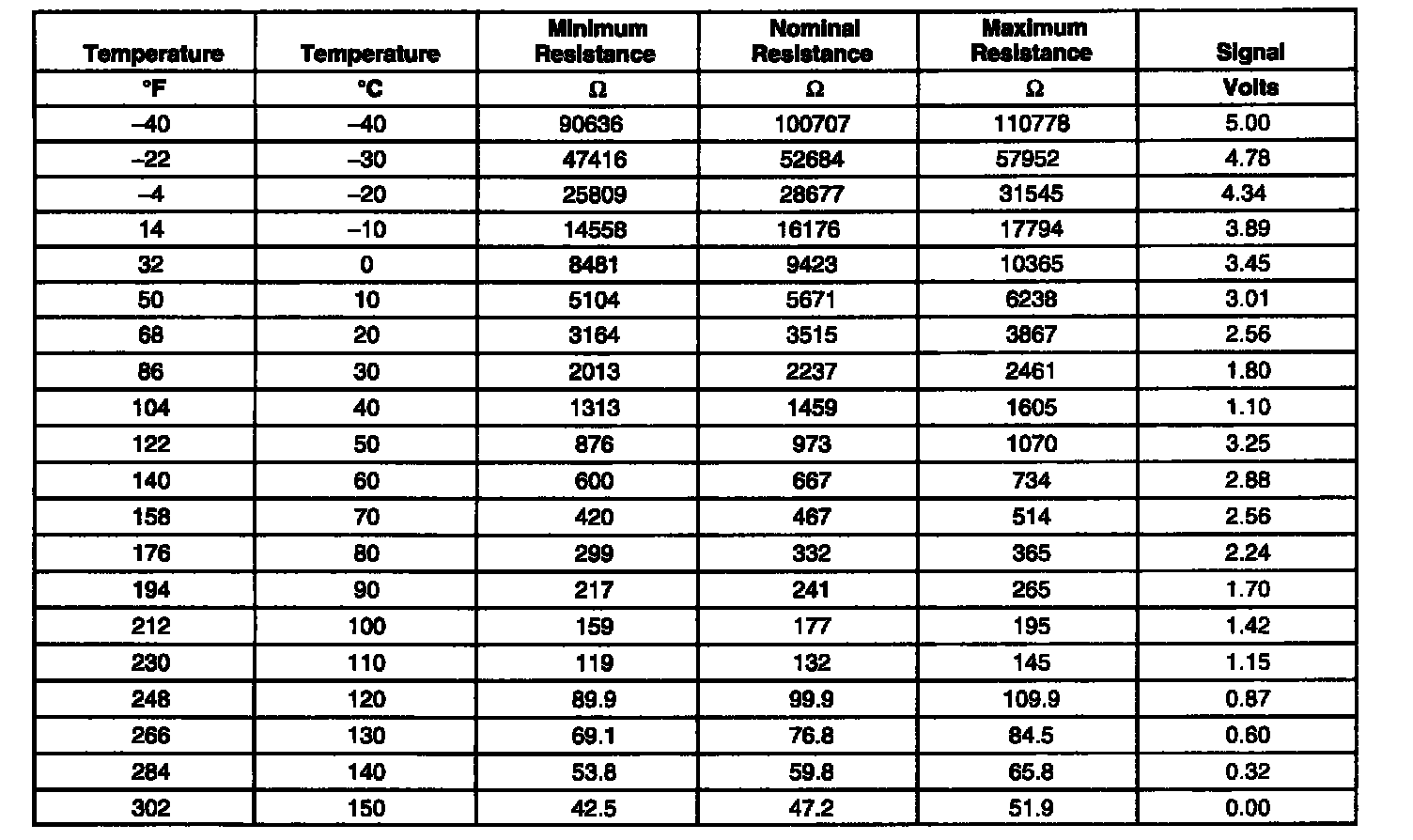

Transmission Fluid Temperature (TFP) Sensor Specifications






Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic






Transmission Range Switch Logic

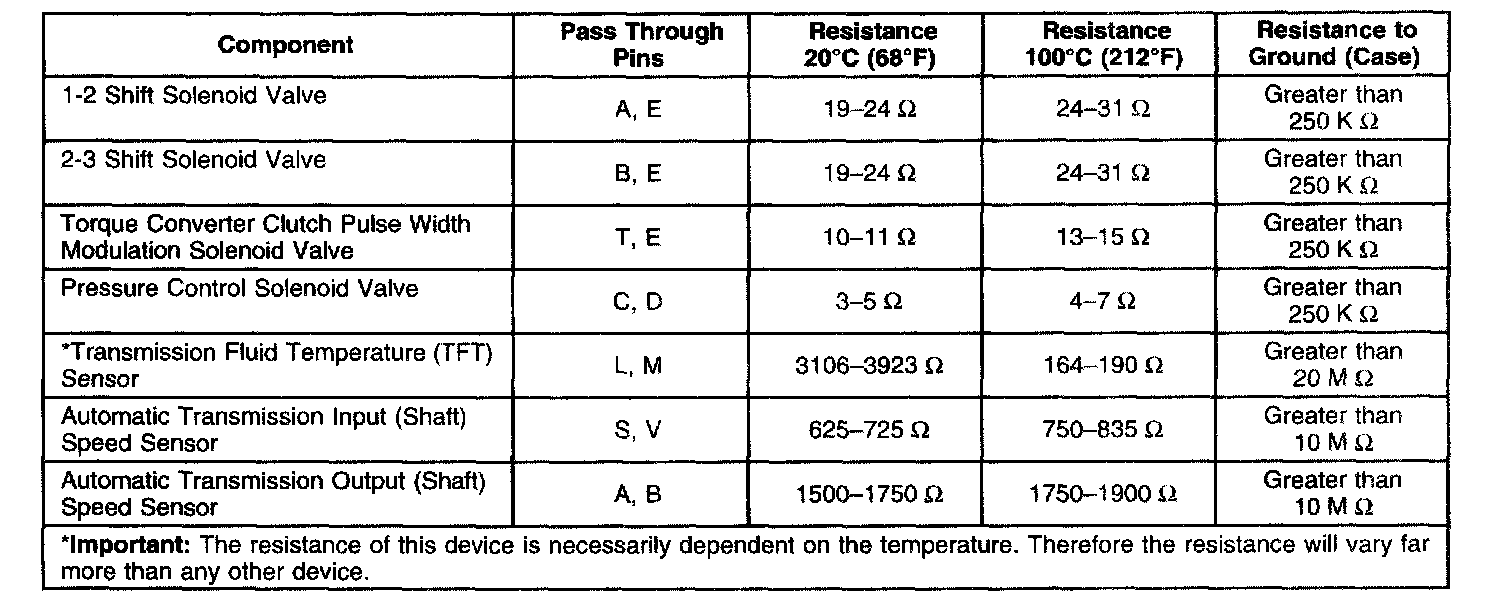

Component Resistance
