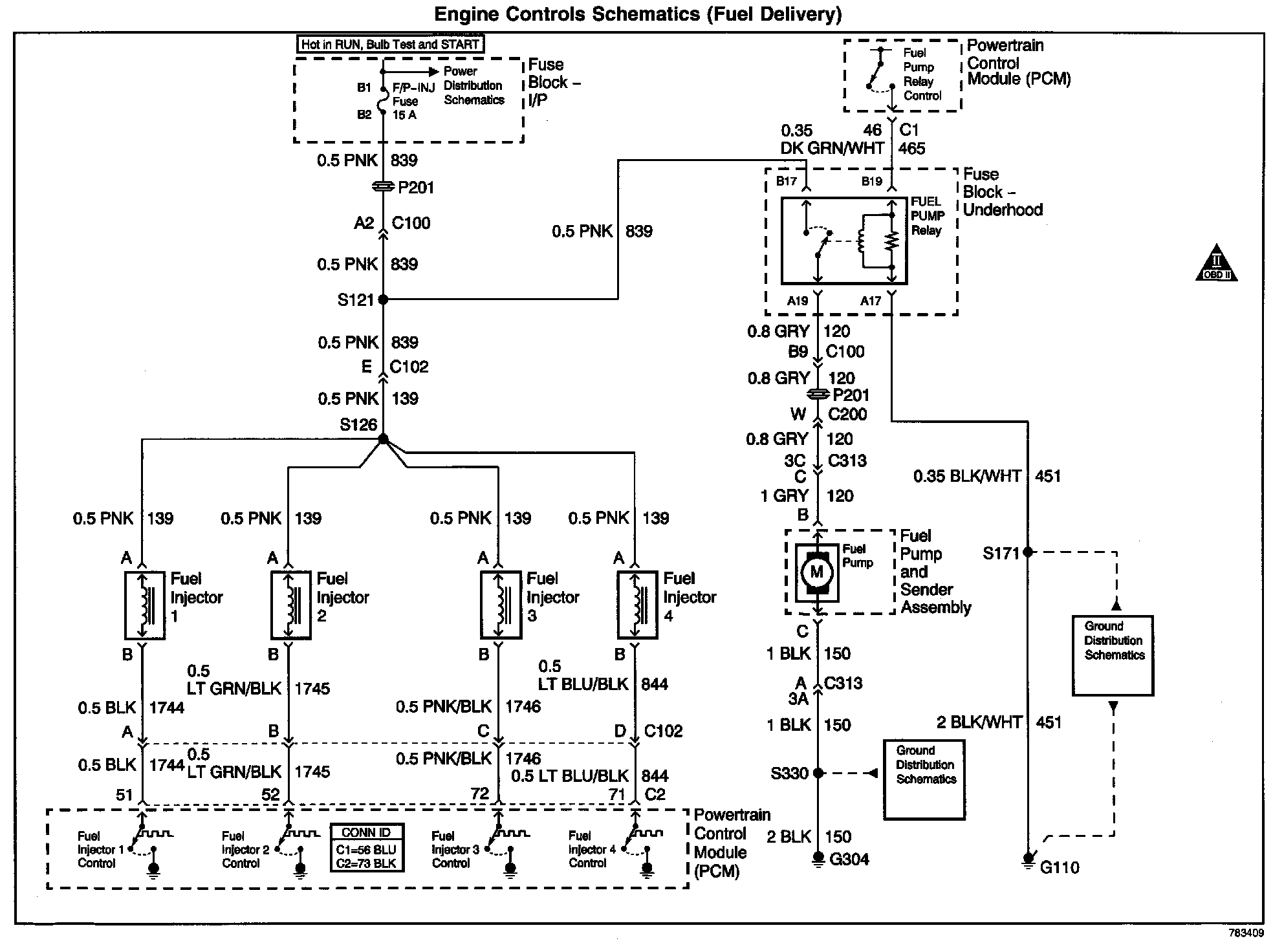

Engine Controls Diagram 6

Engine Controls Diagram 6:






Next Diagram Engine Controls Diagram 7

Previous Diagram Engine Controls Diagram 5
