Door Lock/Indicator Schematics

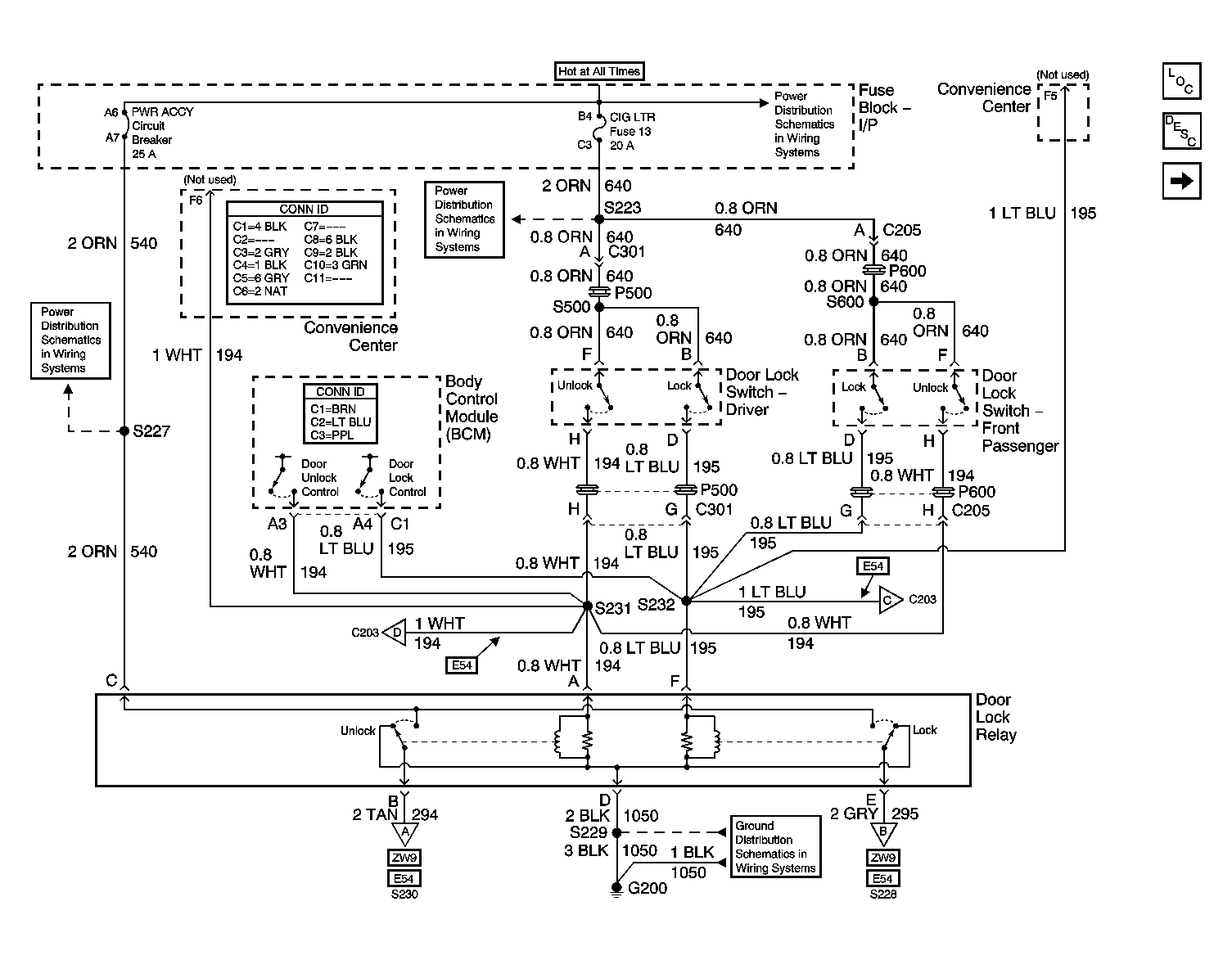

Fig 1: Door Lock Switches and Relay Schematic

Courtesy of GENERAL MOTORS CORP.

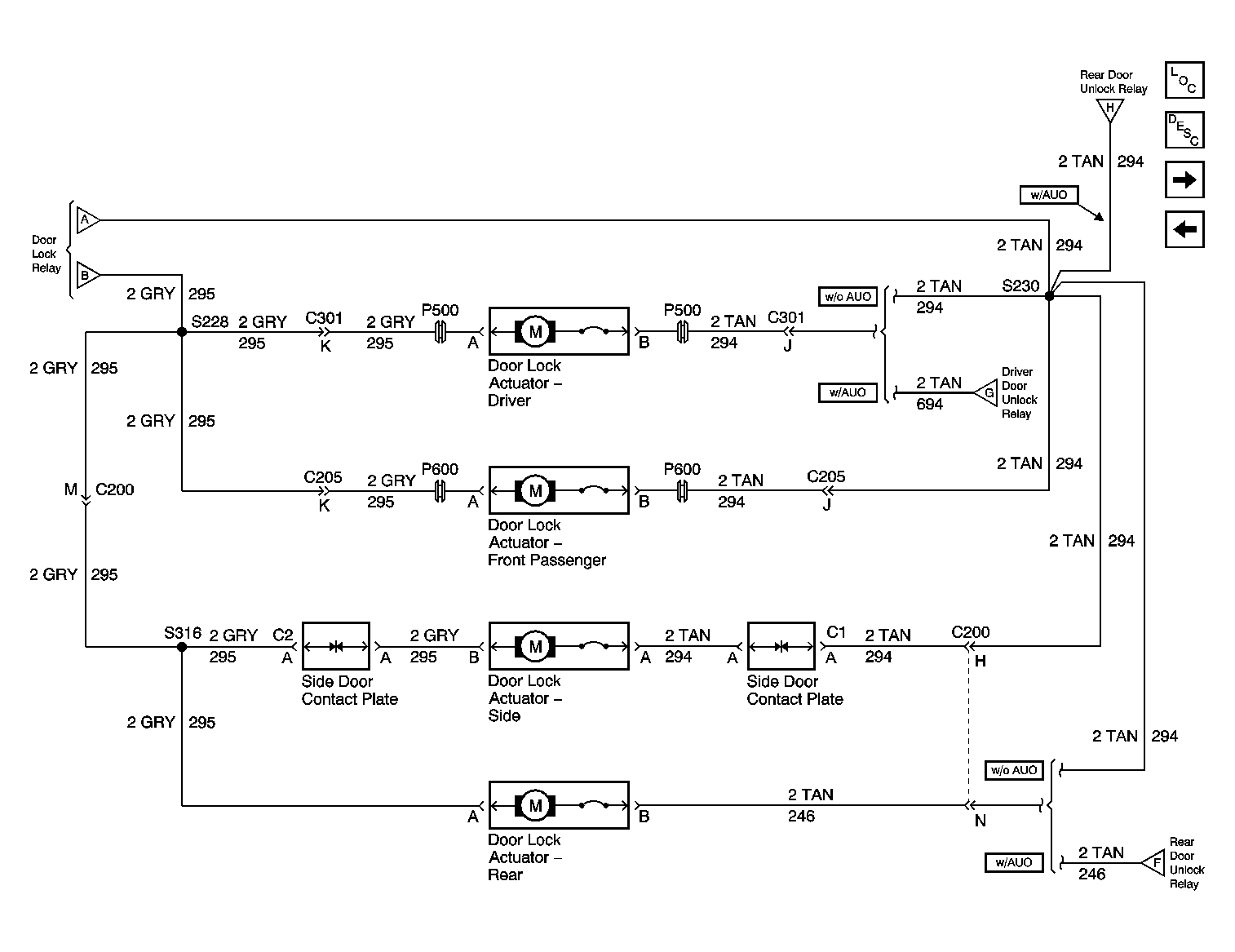

Fig 2: Door Lock Actuators (ZW9) Schematic

Courtesy of GENERAL MOTORS CORP.

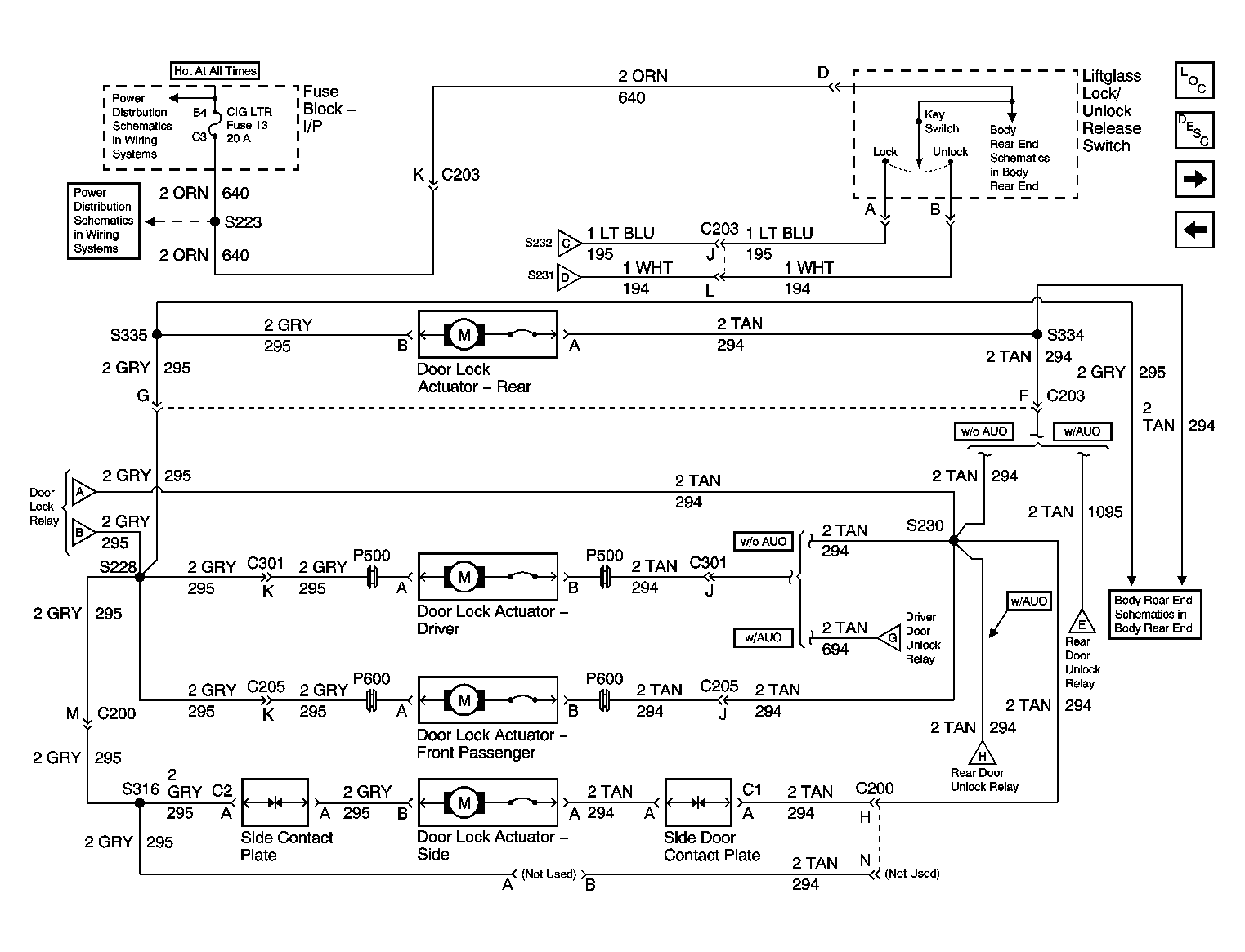

Fig 3: Door Lock Actuators (E54) Schematic

Courtesy of GENERAL MOTORS CORP.

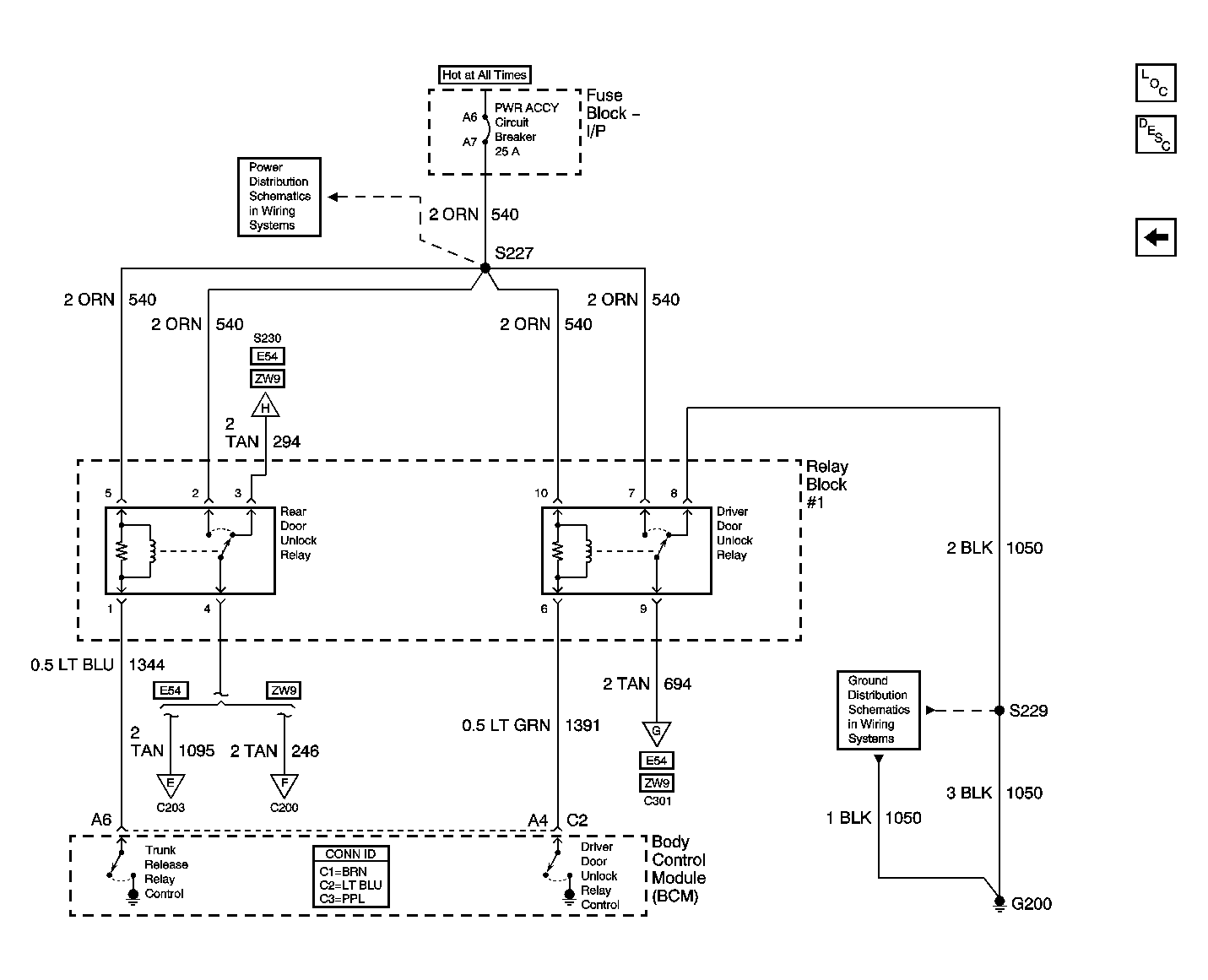

Fig 4: Door Unlock Relays Schematic

Courtesy of GENERAL MOTORS CORP.
