Marker Lamp

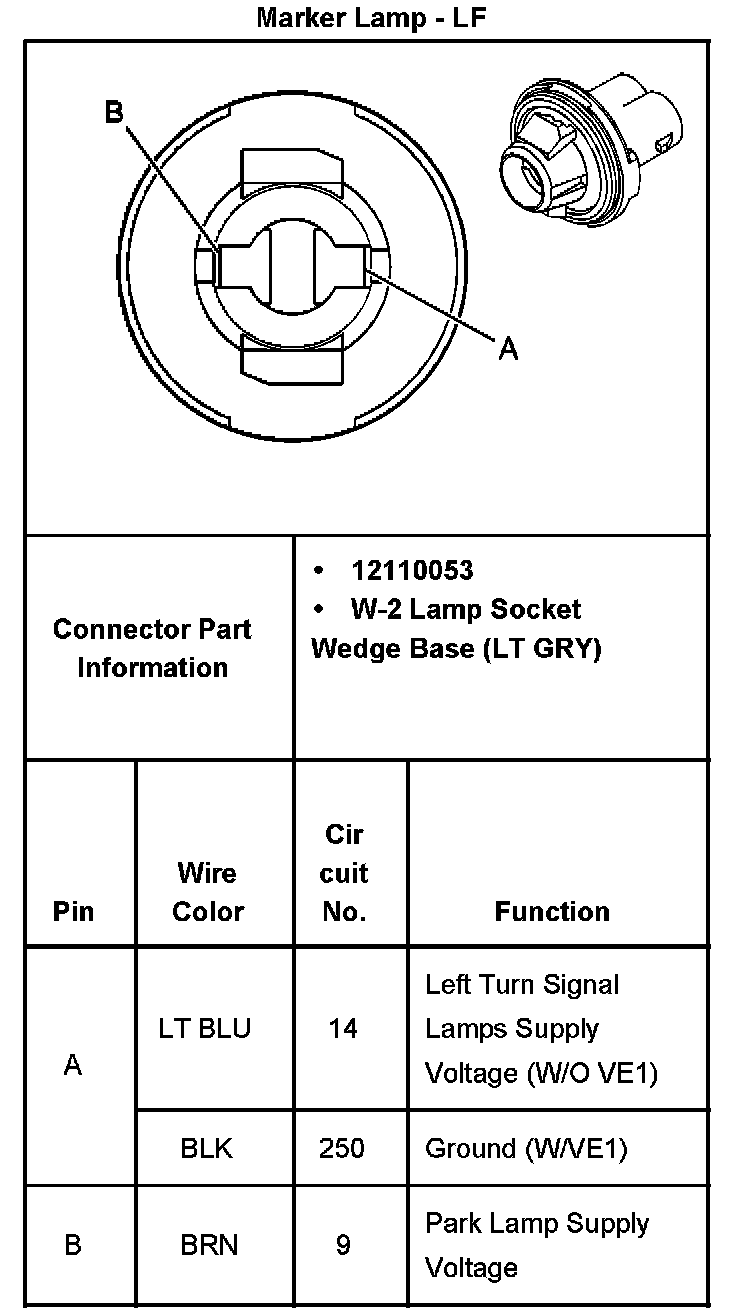

Marker Lamp - LF:

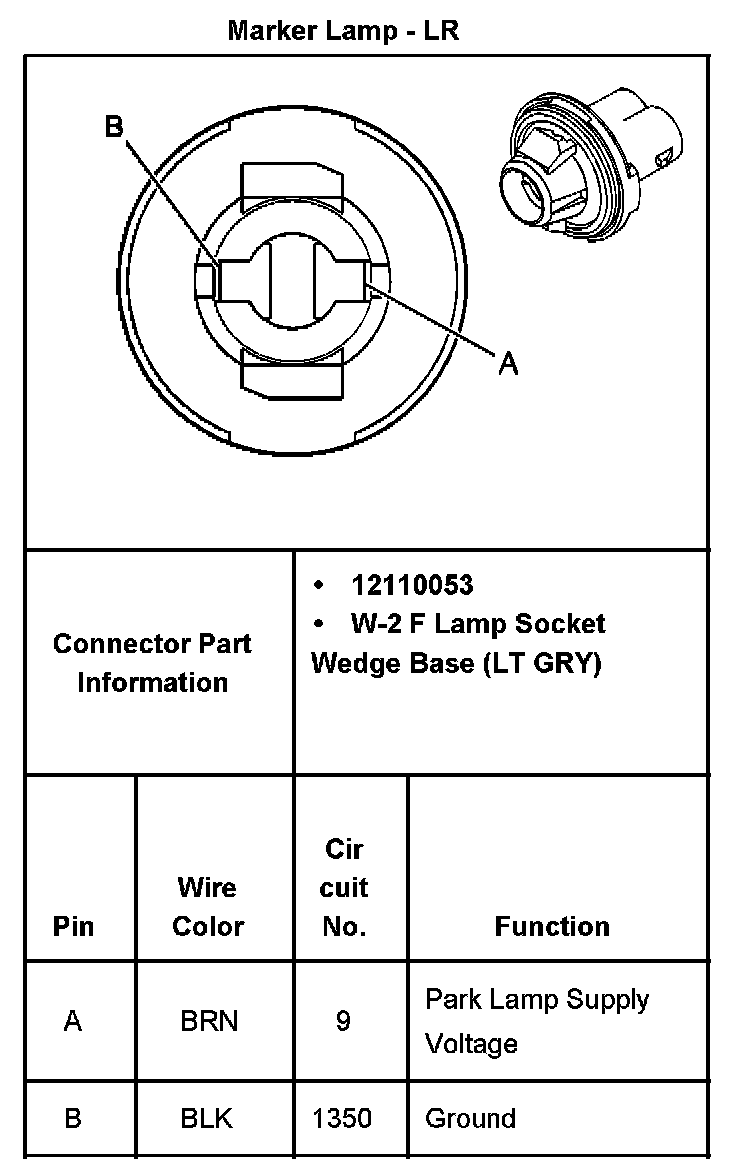

Marker Lamp - LR:

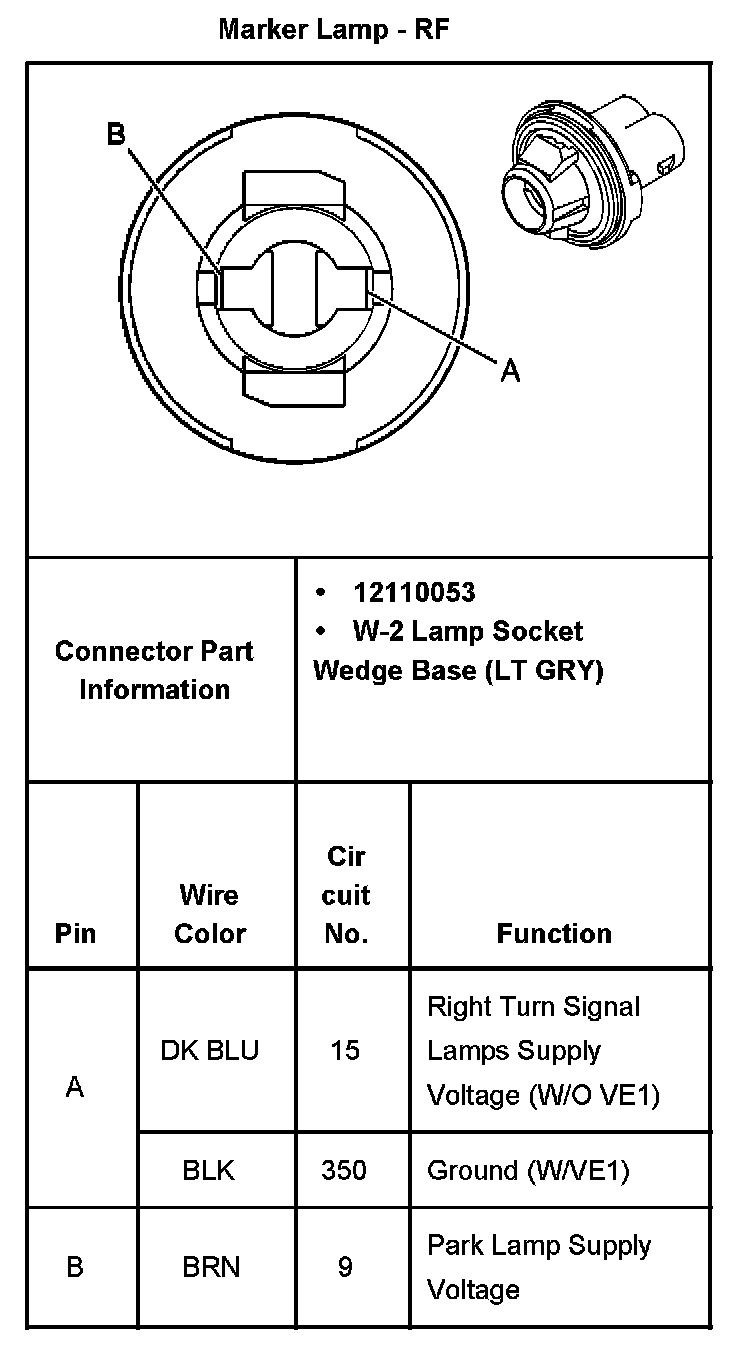

Marker Lamp - RF:

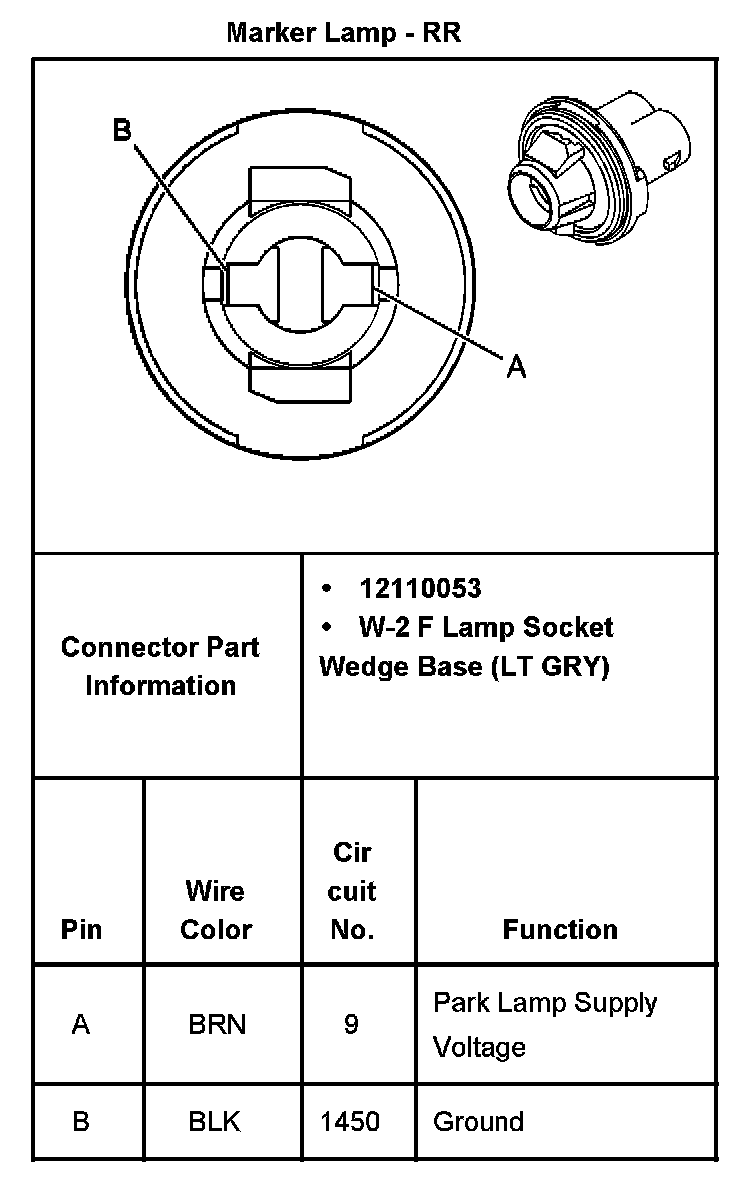

Marker Lamp - RR:

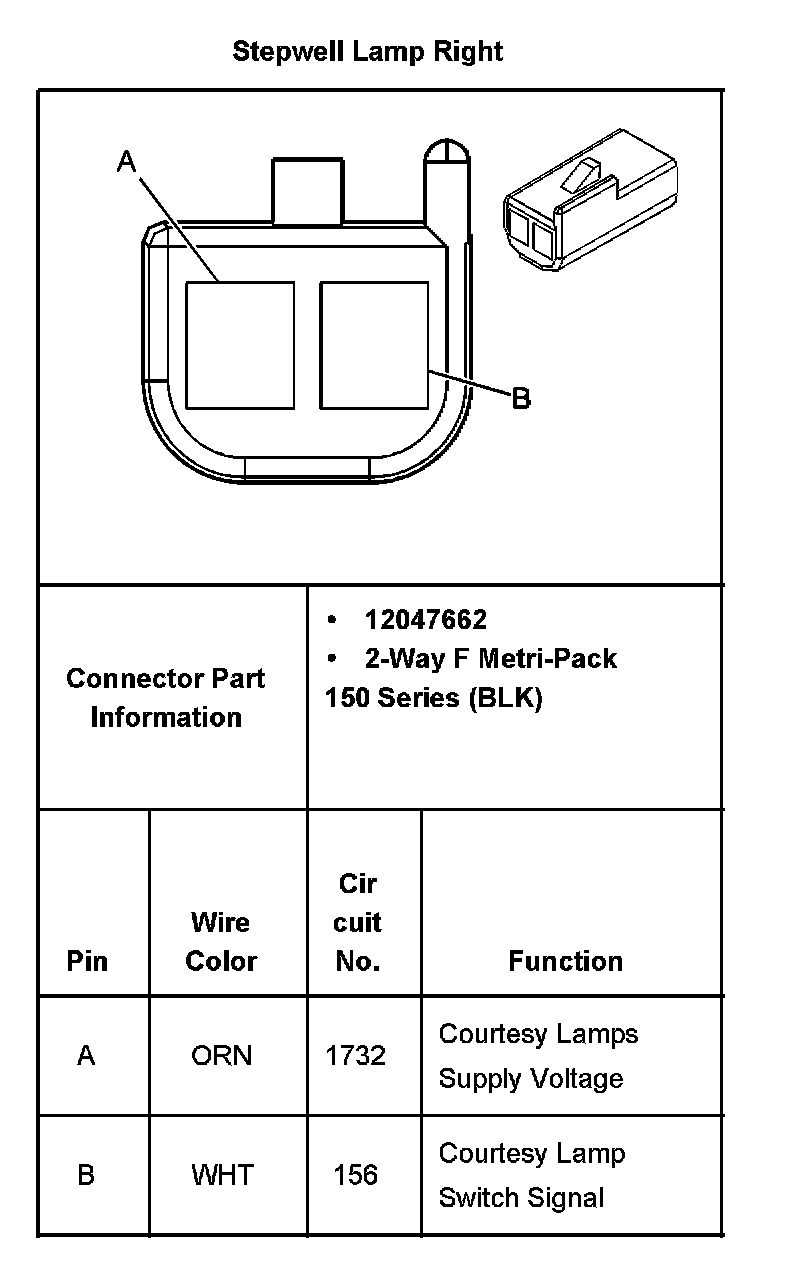

Stepwell Lamp Right:
