Power Door Lock Switch

Door Lock Switch - Driver:

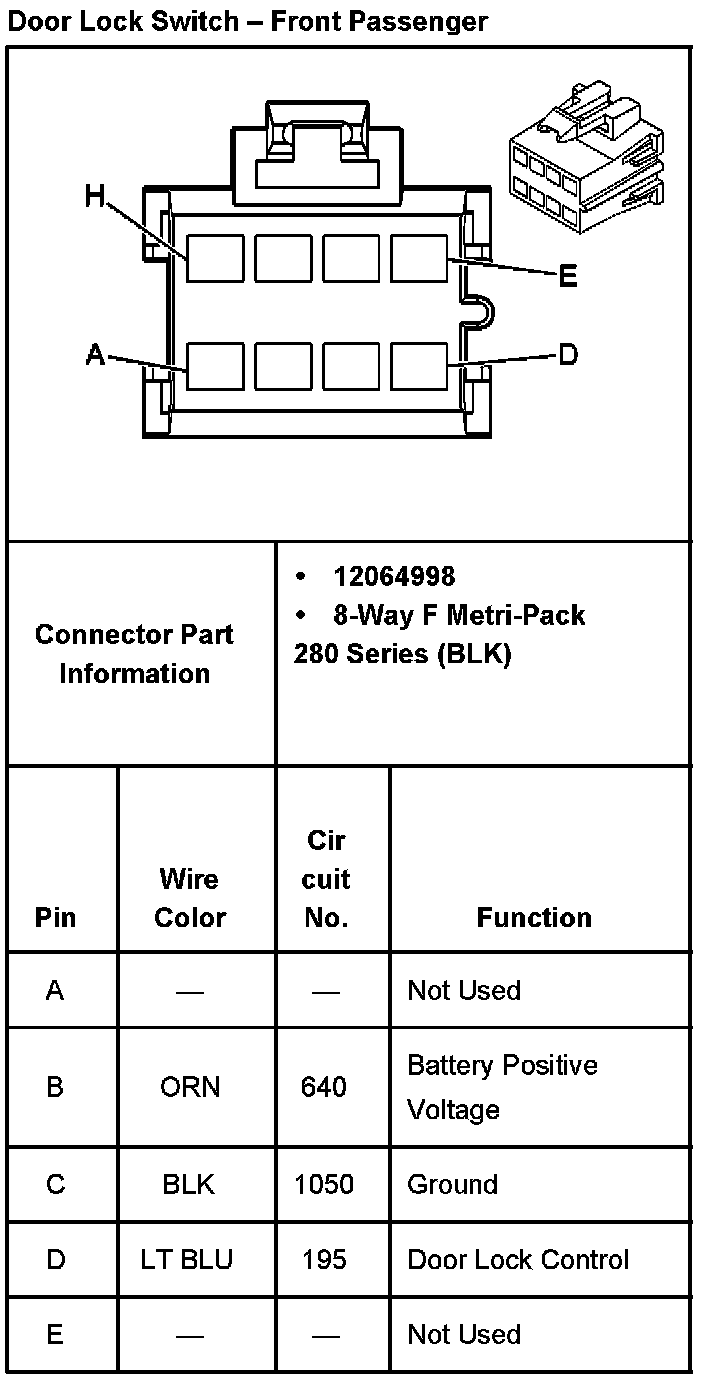

Door Lock Switch - Front Passenger Part 1:

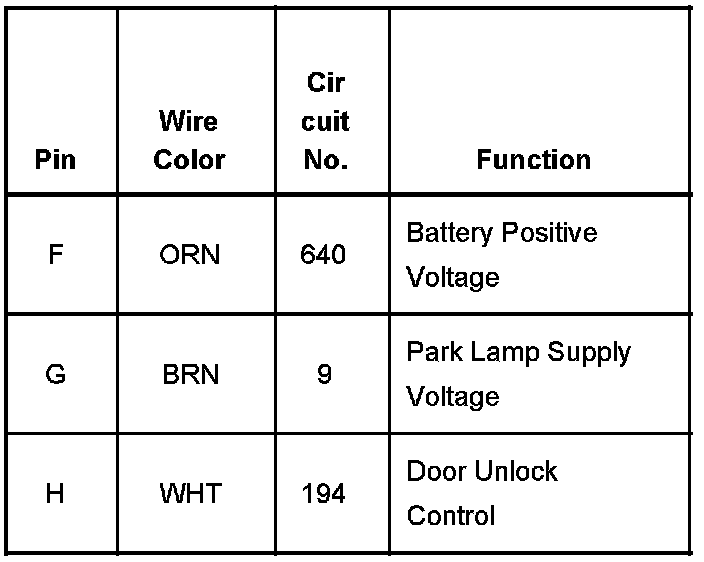

Door Lock Switch - Front Passenger Part 2:
