Rear Video/Audio/HVAC Module - C1
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

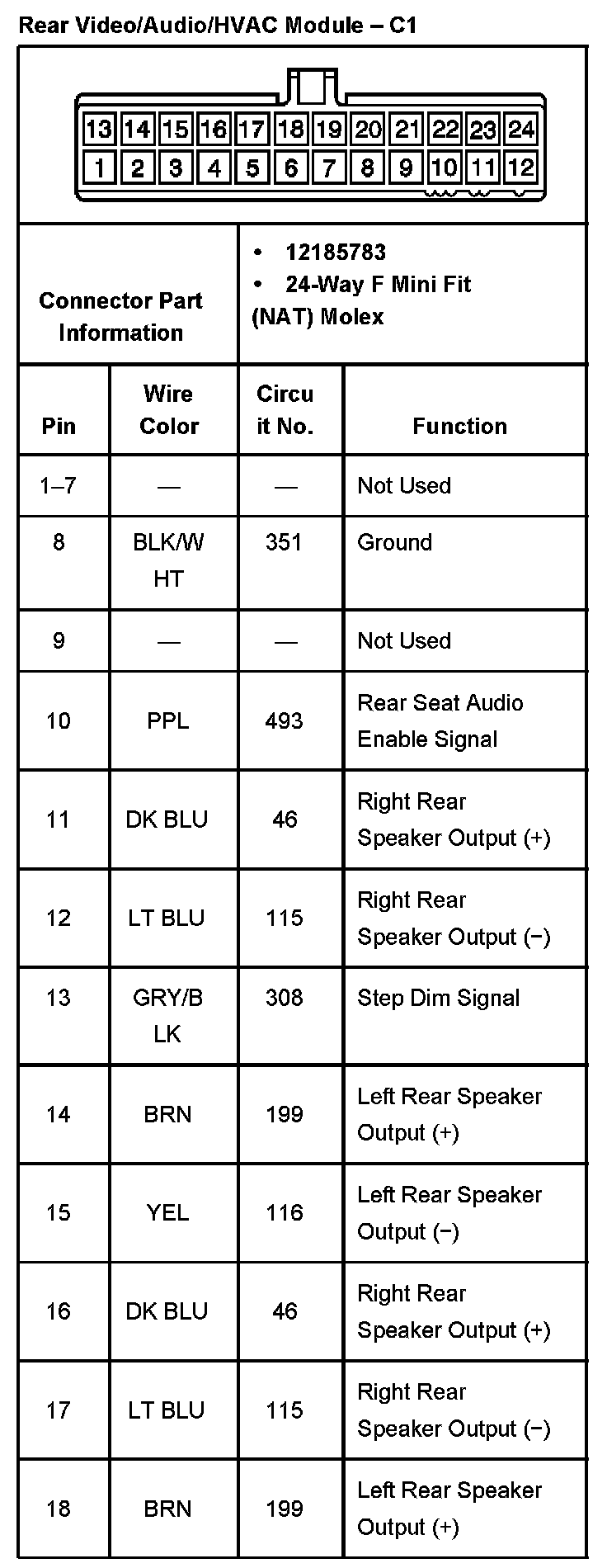

Rear Video/Audio/HVAC Module - C1
Rear Video/Audio/HVAC Module - C1 Part 1:
Rear Video/Audio/HVAC Module - C1 Part 2:
