Test Description

The numbers below refer to the step numbers on the diagnostic table.

5. This step tests to see if there is a short to voltage in the seat belt indicator supply voltage circuit

7. This step tests to see if there is an open, high resistance, or a short to ground in the seat belt indicator supply voltage circuit

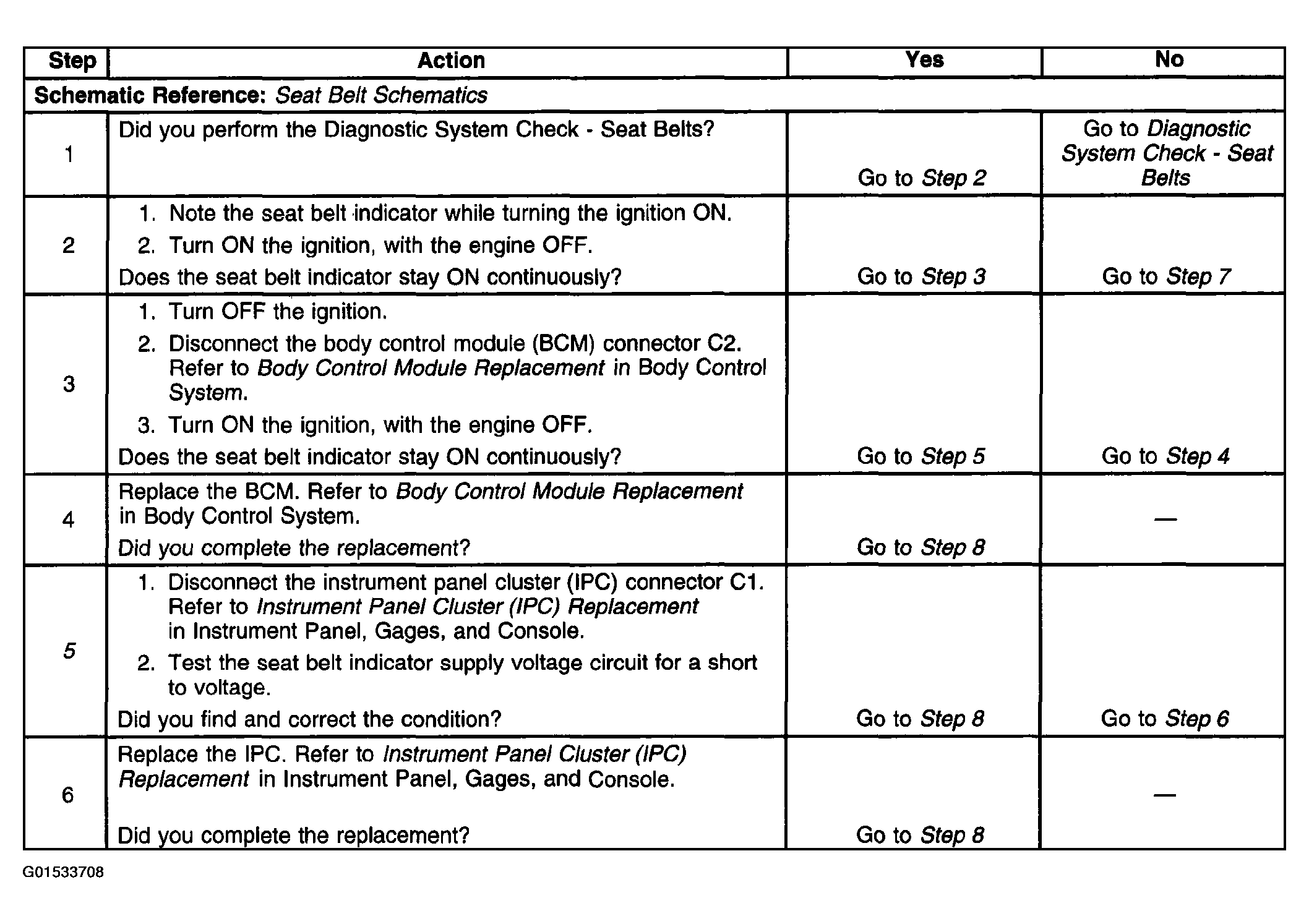

Fig 1: DTC 001 Diagnostic Specifications (1 Of 2)
G01533708Courtesy of GENERAL MOTORS CORP.

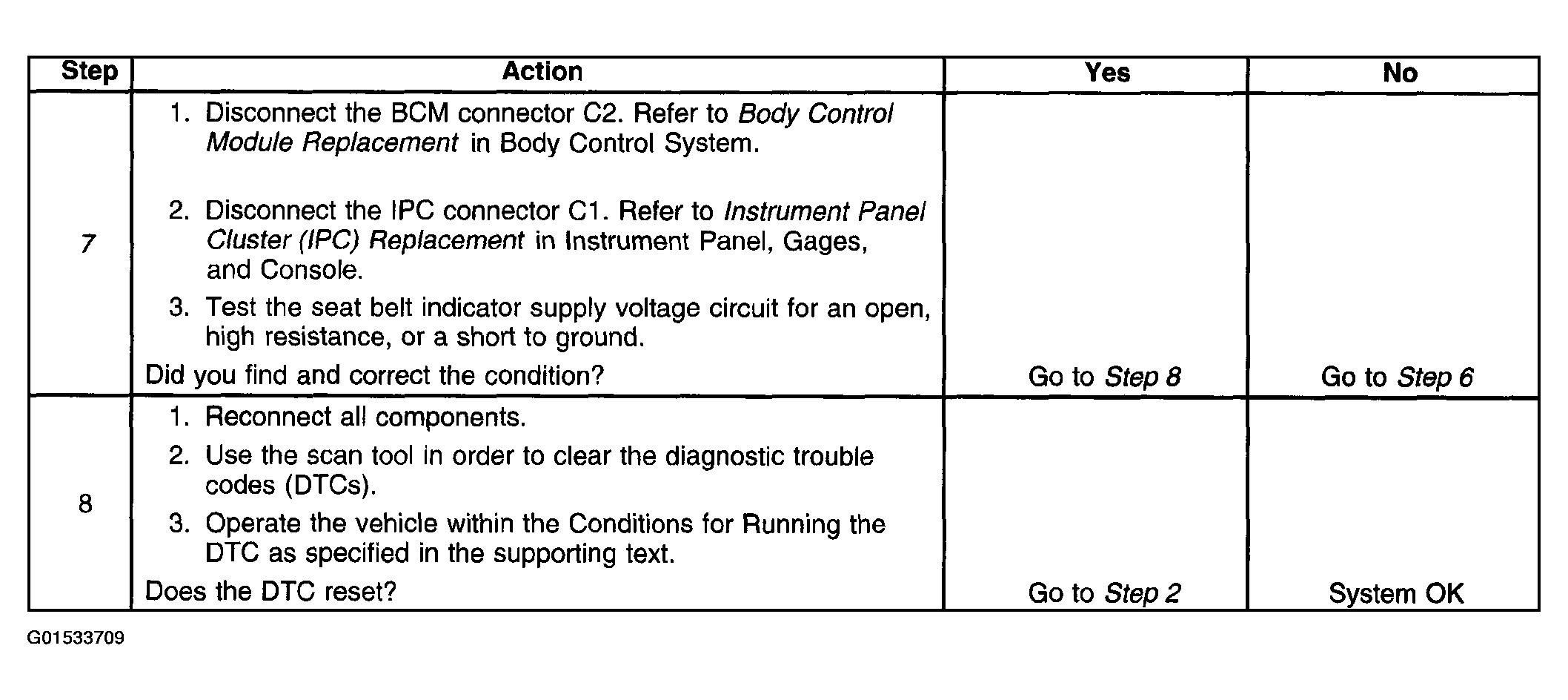

Fig 2: DTC 001 Diagnostic Specifications (2 Of 2)
G01533709Courtesy of GENERAL MOTORS CORP.
