Schematic and Routing Diagrams

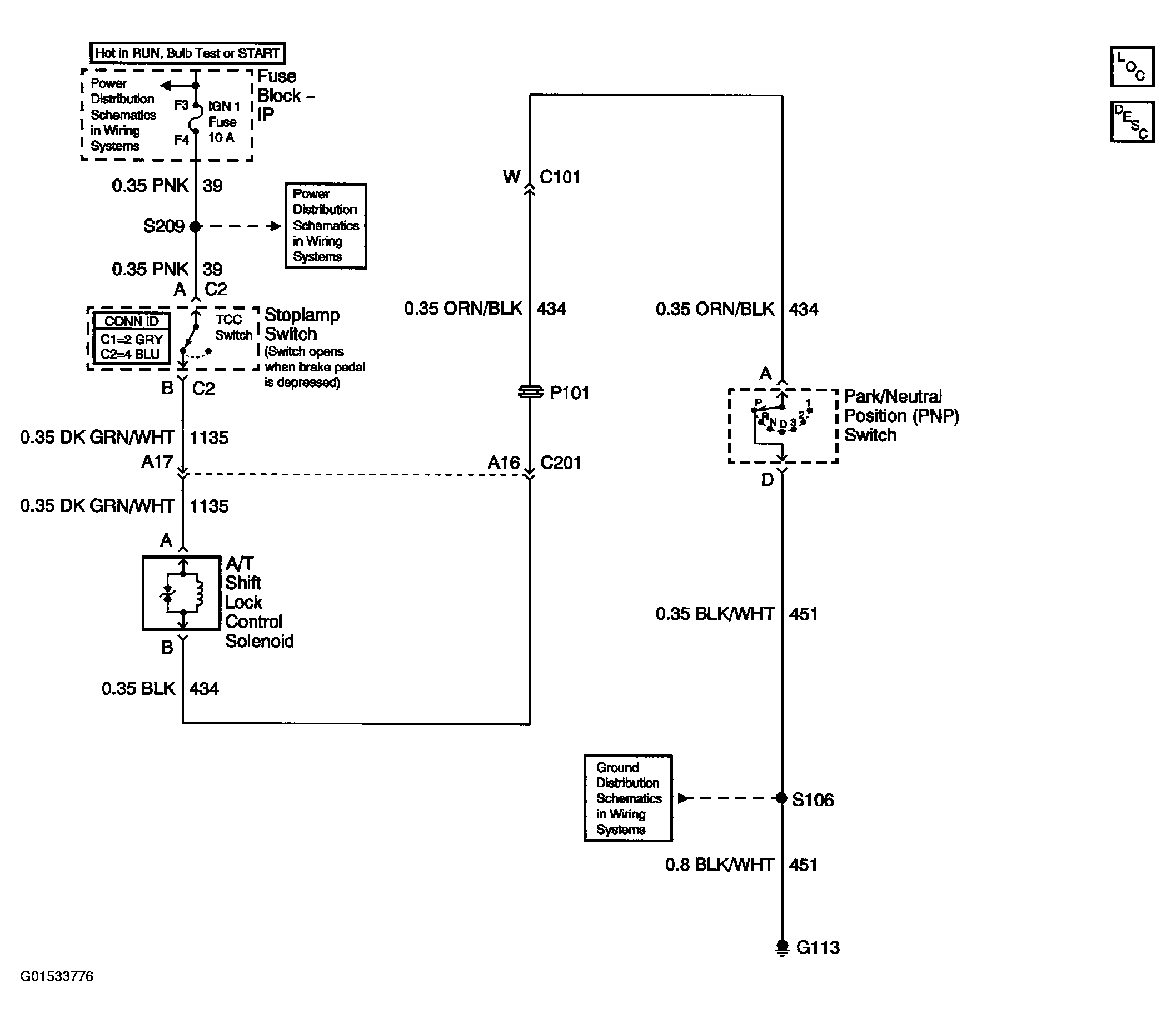

Fig 1: Automatic Transmission Shift Lock Control Schematics
G01533776Courtesy of GENERAL MOTORS CORP.
