Installation Procedure

  1. Install the shoulder belt guide adjuster bracket (1) to the B-pillar (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Use the J 29843-9  in order to install the bolts (3) to the shoulder belt guide adjuster bracket (1).

    Tighten

    Tighten the front shoulder belt guide adjuster bracket bolts to 50 N.m (37lb ft).

  3. Install the center pillar upper trim panel. Refer to INTERIOR TRIM  in interior Trim.
  4. Install the nut securing the upper guide loop anchor nut.

    Tighten

    Tighten the front seat belt upper guide loop anchor nut to 29 N.m (21 lb ft).

  5. Install the plastic cover to the shoulder belt guide.

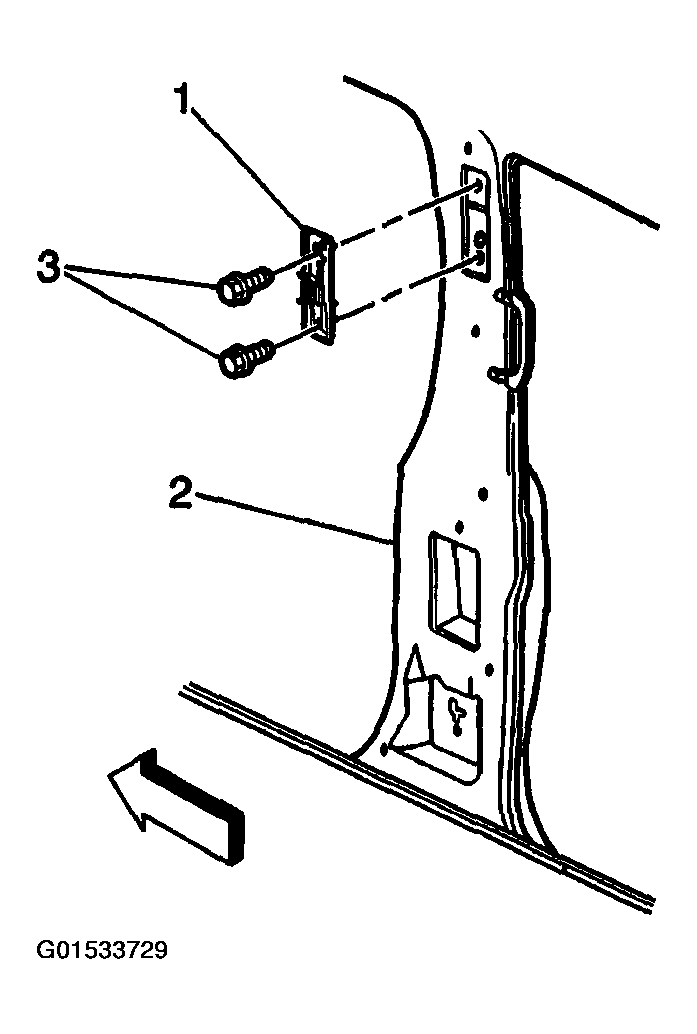

    Fig 1: Installing Shoulder Belt Guide Adjuster Bracket To B-Pillar
    G01533729Courtesy of GENERAL MOTORS CORP.
