Liftgate Door Lock Connector End View C1 - Ajar Indicator Switch

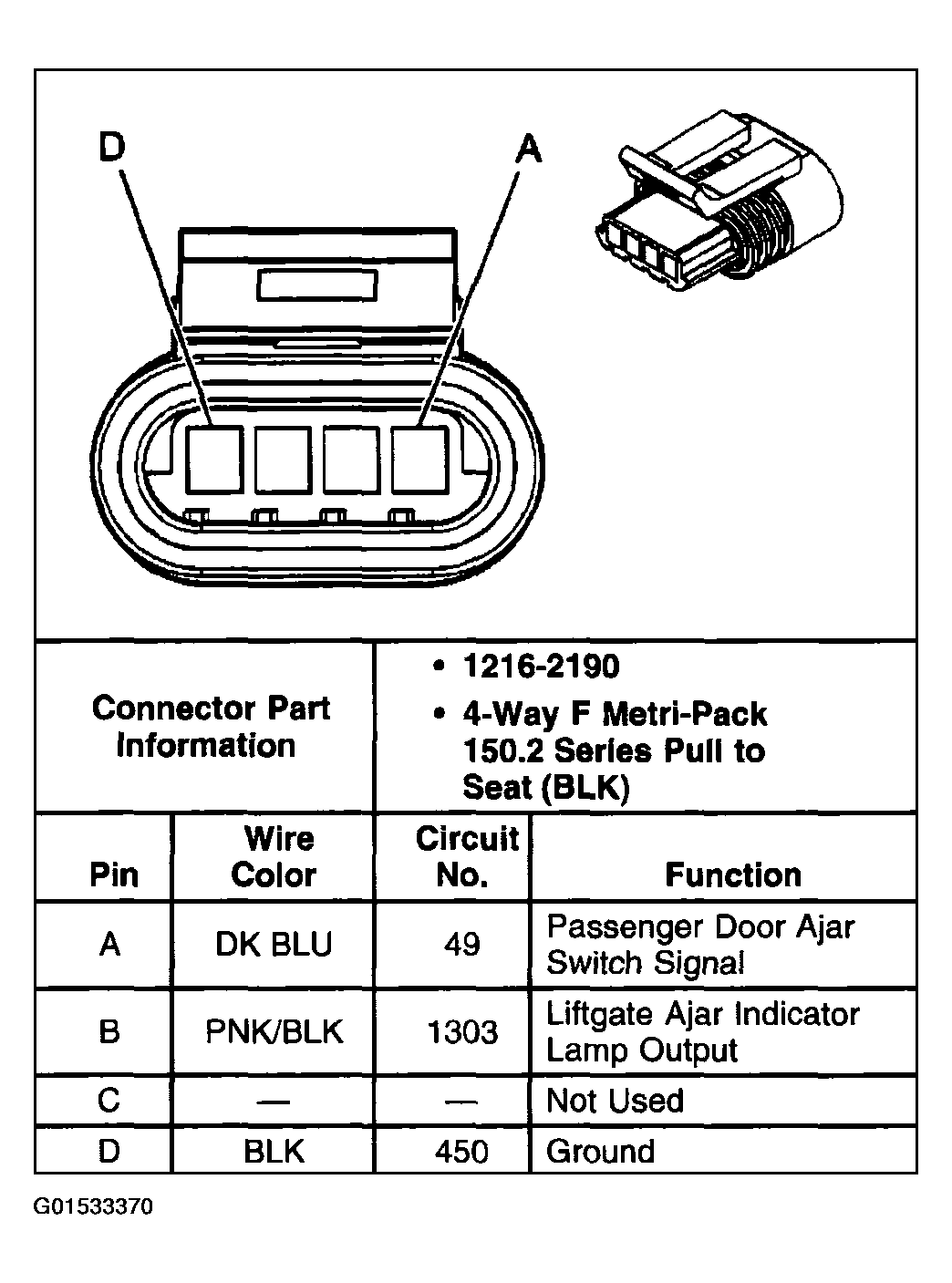

Fig 1: Liftgate Door Lock Connector End View C1 - Ajar Indicator Switch
G01533370Courtesy of GENERAL MOTORS CORP.
