Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

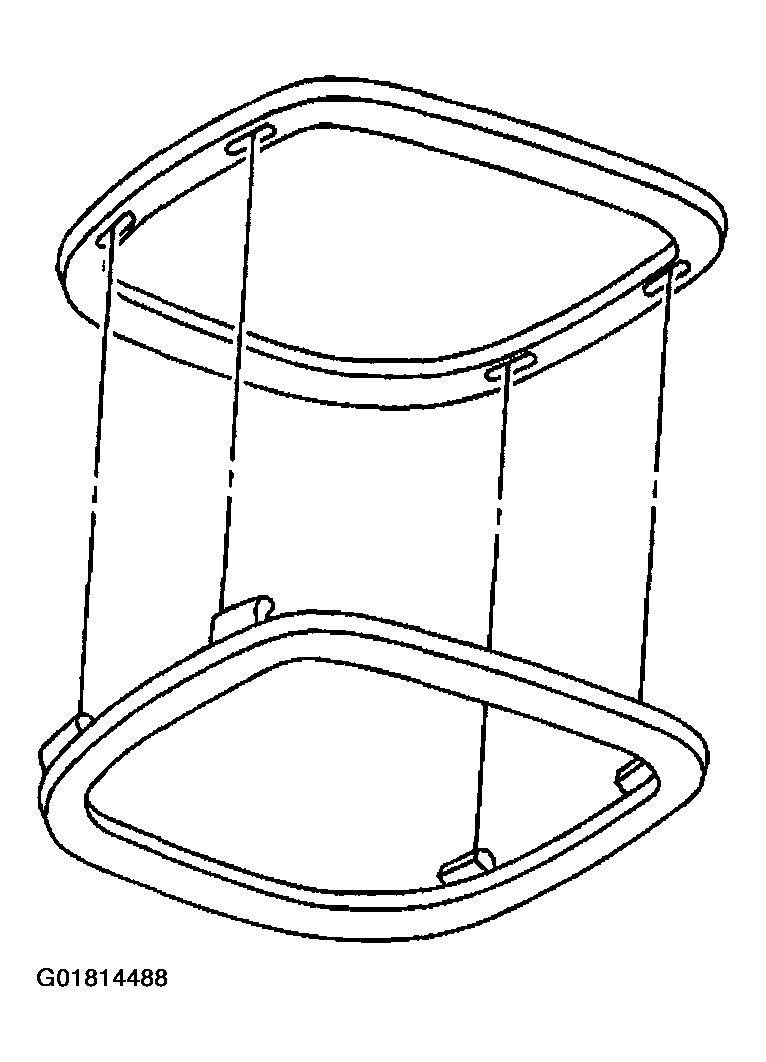

Fig 1: Installing Overhead Console To Headliner (CF5)
G01814488Courtesy of GENERAL MOTORS CORP.
  1. Install the overhead console to the headliner.
  2. Install the overhead console retainers into the overhead console bracket.
  3. Connect the electrical connectors to the interior lamp/multifunction switch.

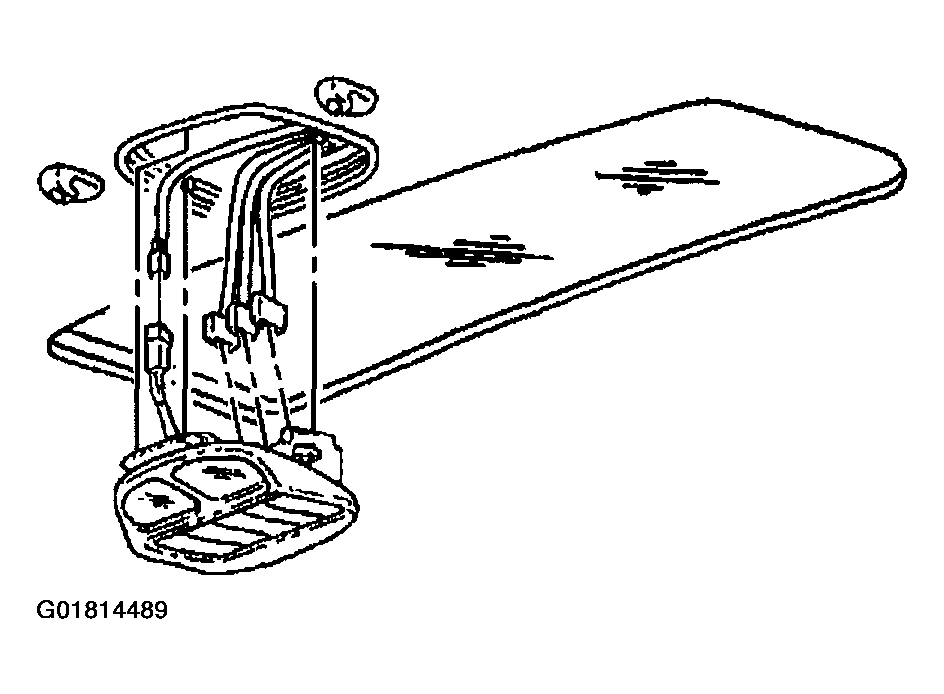

    Fig 2: Connecting Electrical Connectors To Interior Lamp/Multifunction Switch (CF5)
    G01814489Courtesy of GENERAL MOTORS CORP.
  4. Align the retaining tabs on the interior lamp/multifunction switch/reading lamp housing with the overhead console.
  5. Press up on the interior lamp/multifunction switch/reading lamp housing in order to install the housing into the overhead console.
