Stationary Windows Connector End Views

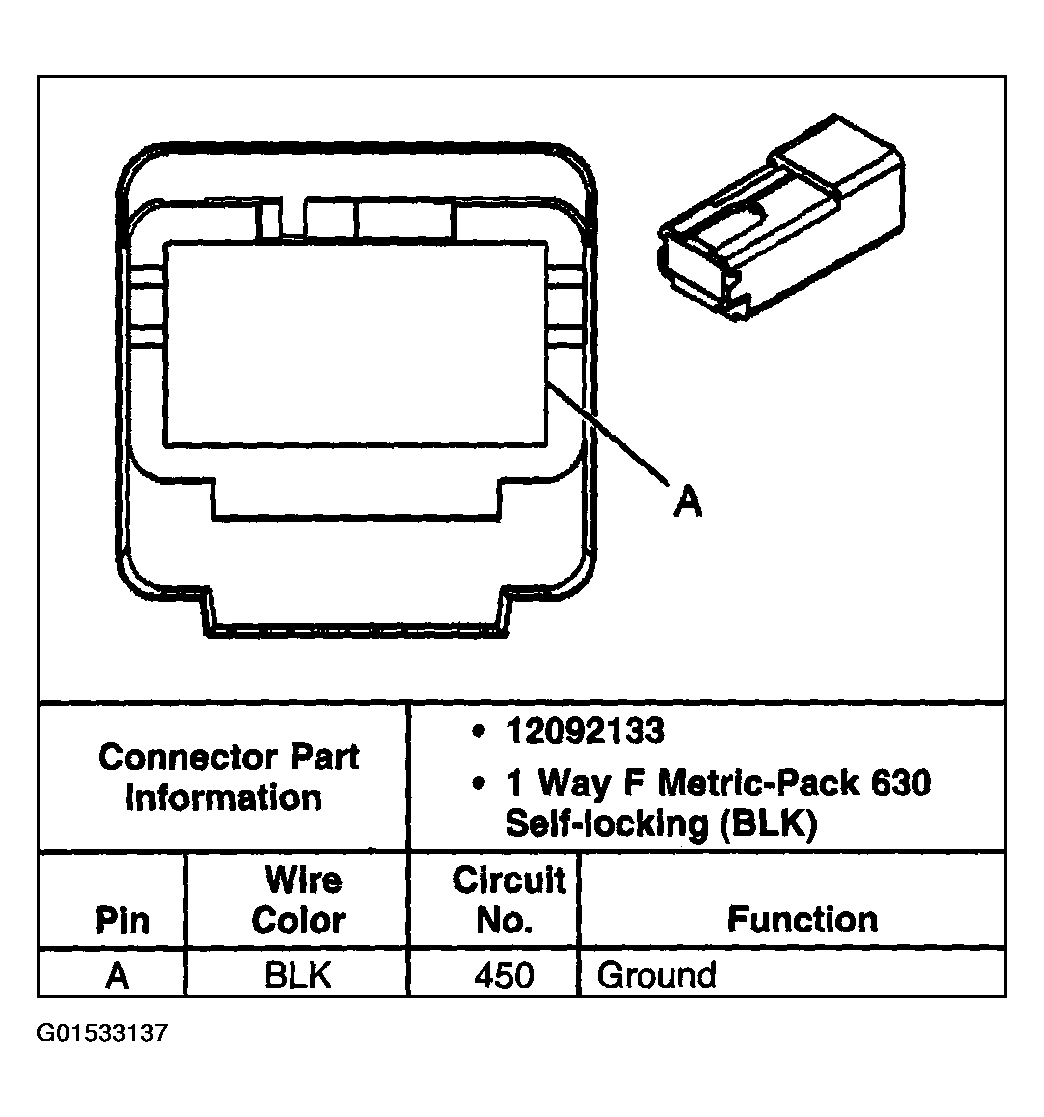

Fig 1: Rear Window Defogger Grid (C1) Connector End View
G01533137Courtesy of GENERAL MOTORS CORP.

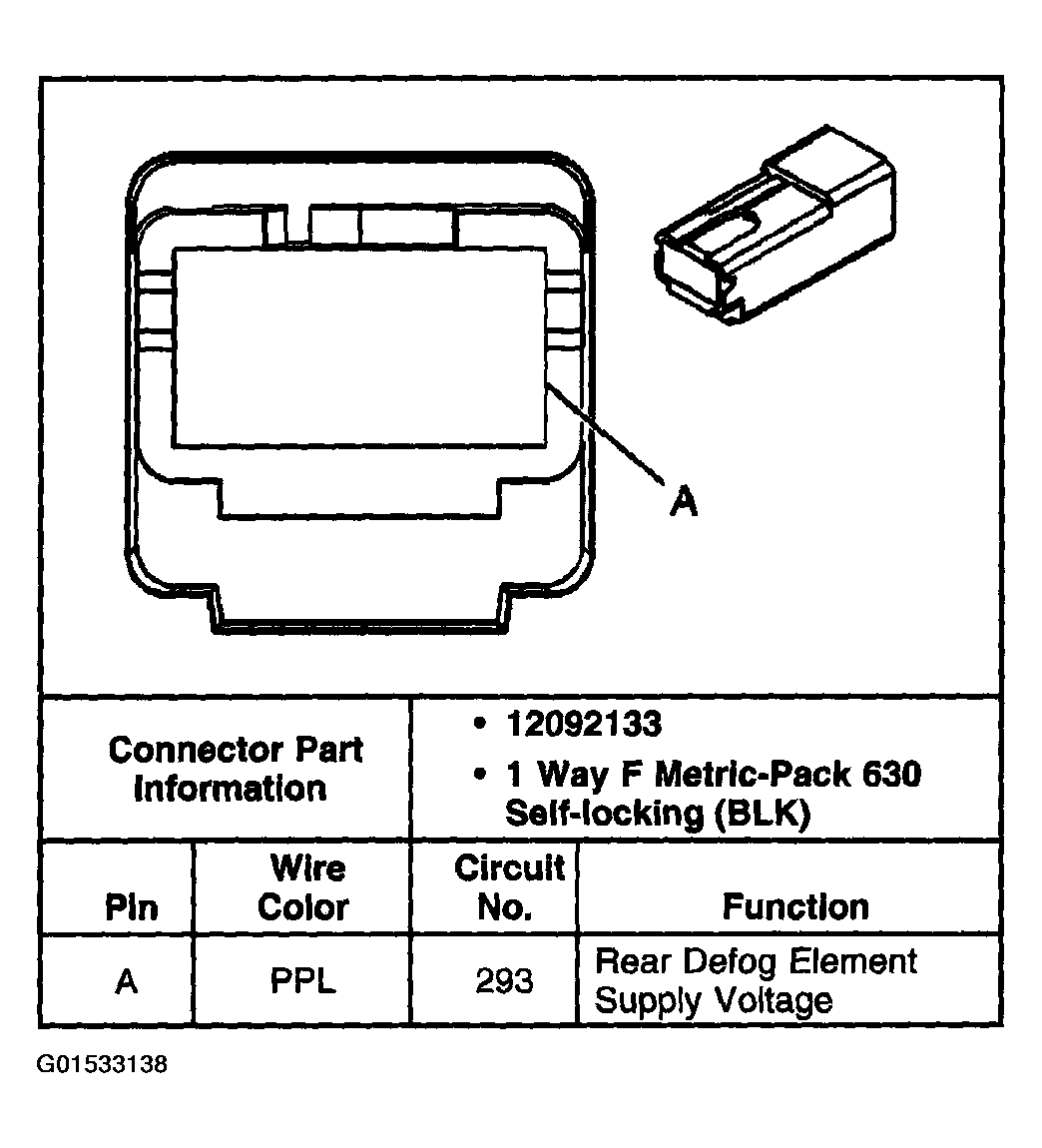

Fig 2: Rear Window Defogger Grid (C2) Connector End View
G01533138Courtesy of GENERAL MOTORS CORP.
