Removal Procedure

  1. Open the sliding door half way.
  2. Remove the bolt for the sliding door catch with the reinforcement channel from the sliding door lower track.
  3. Remove the sliding door catch with the reinforcement channel from the sliding door lower track.

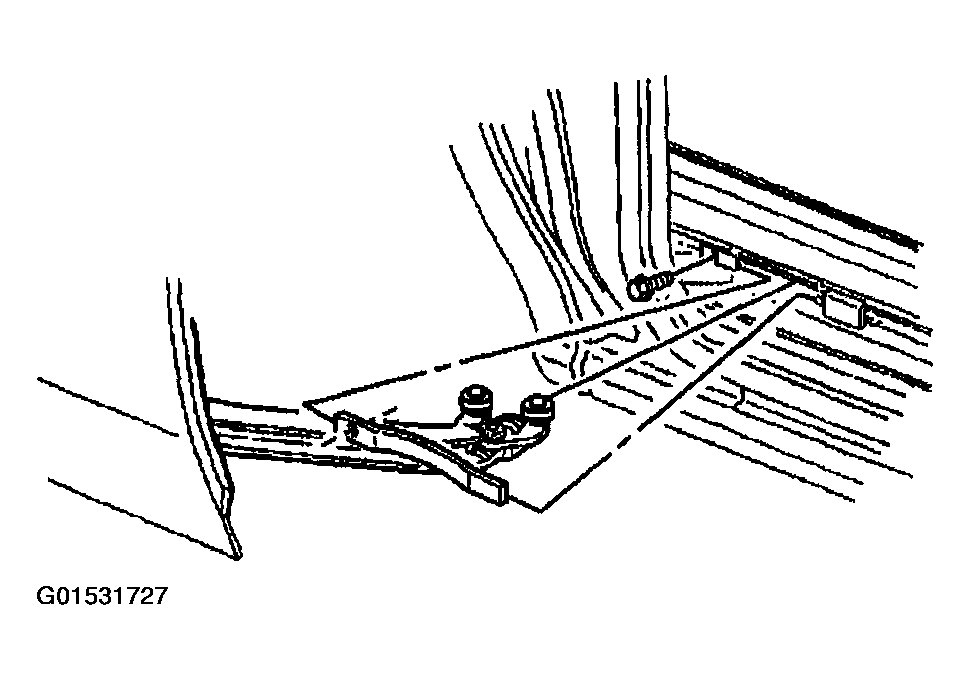

    Fig 1: Removing Sliding Door Catch With Reinforcement Channel
    G01531727Courtesy of GENERAL MOTORS CORP.
