Removal Procedure

  1. Remove the instrument panel upper trim. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER  in Instrument Panel, Gages and Console.
  2. Remove the security indicator lamp from the instrument panel upper trim:
    1. Rotate the lamp counterclockwise to approximately 1/4 turn.
    2. Pull the lamp out.
  3. Disconnect the security indicator lamp electrical connector from the security indicator lamp.

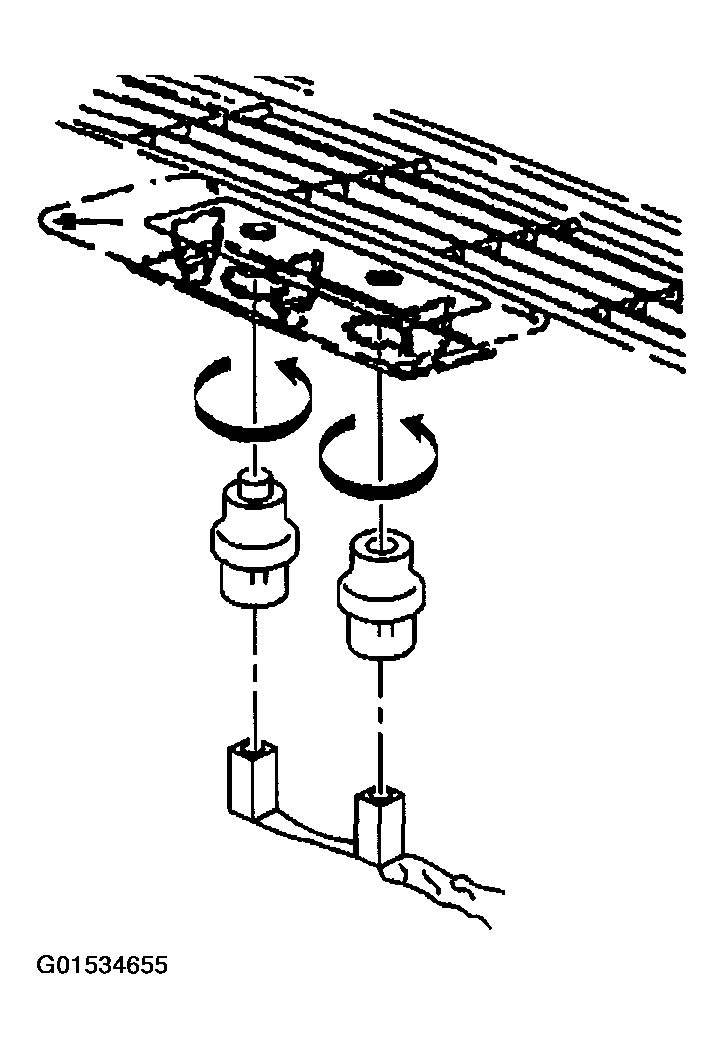

    Fig 1: Removing Security Indicator Lamp From Instrument Panel Upper Trim
    G01534655Courtesy of GENERAL MOTORS CORP.
