Installation Procedure

  1. Install the microphone to the headliner.
  2. Connect the microphone electrical connector.

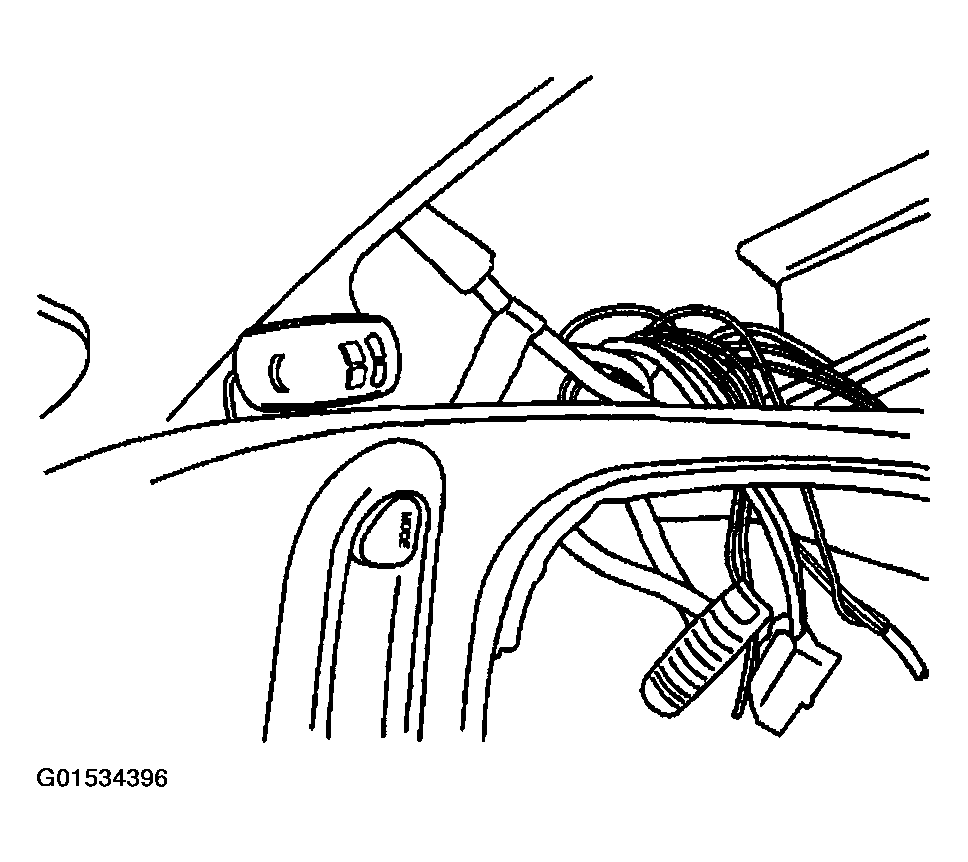

    Fig 1: Installing Microphone To Headliner
    G01534396Courtesy of GENERAL MOTORS CORP.
  3. Install the overhead console. Refer to CONSOLE REPLACEMENT -- OVERHEAD (SINGLE) or CONSOLE REPLACEMENT -- OVERHEAD (DUAL) or CONSOLE REPLACEMENT -- OVERHEAD (CF5) in Interior Trim.

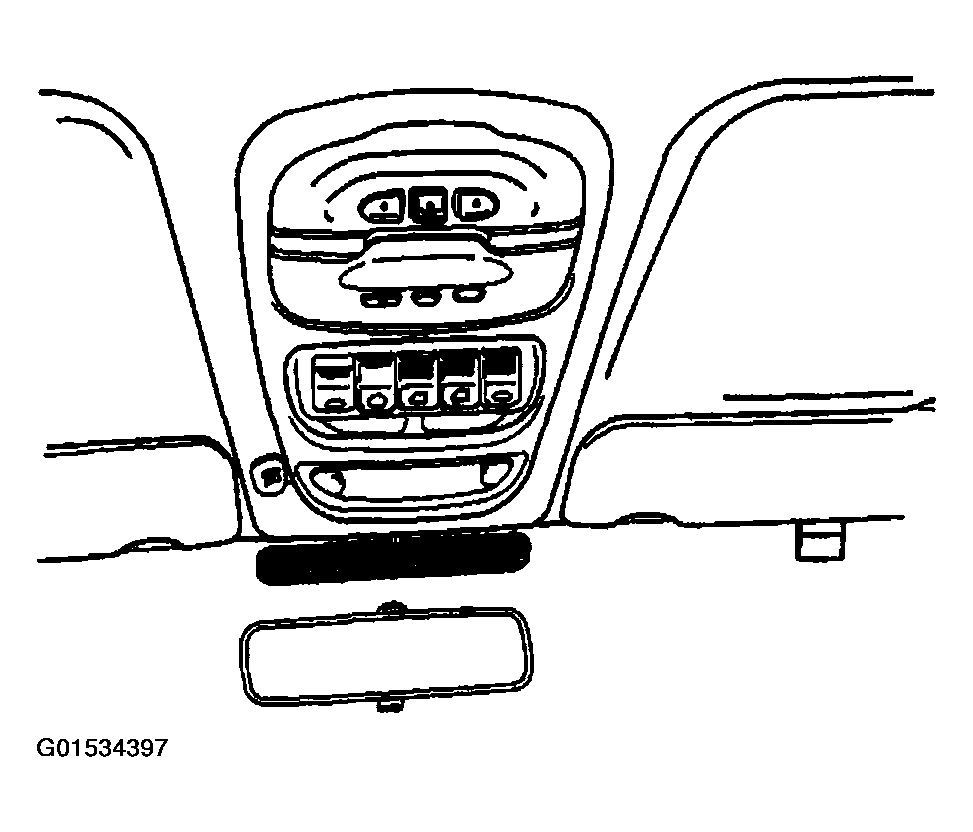

    Fig 2: Installing Overhead Console
    G01534397Courtesy of GENERAL MOTORS CORP.
