Power Steering System Test Procedure

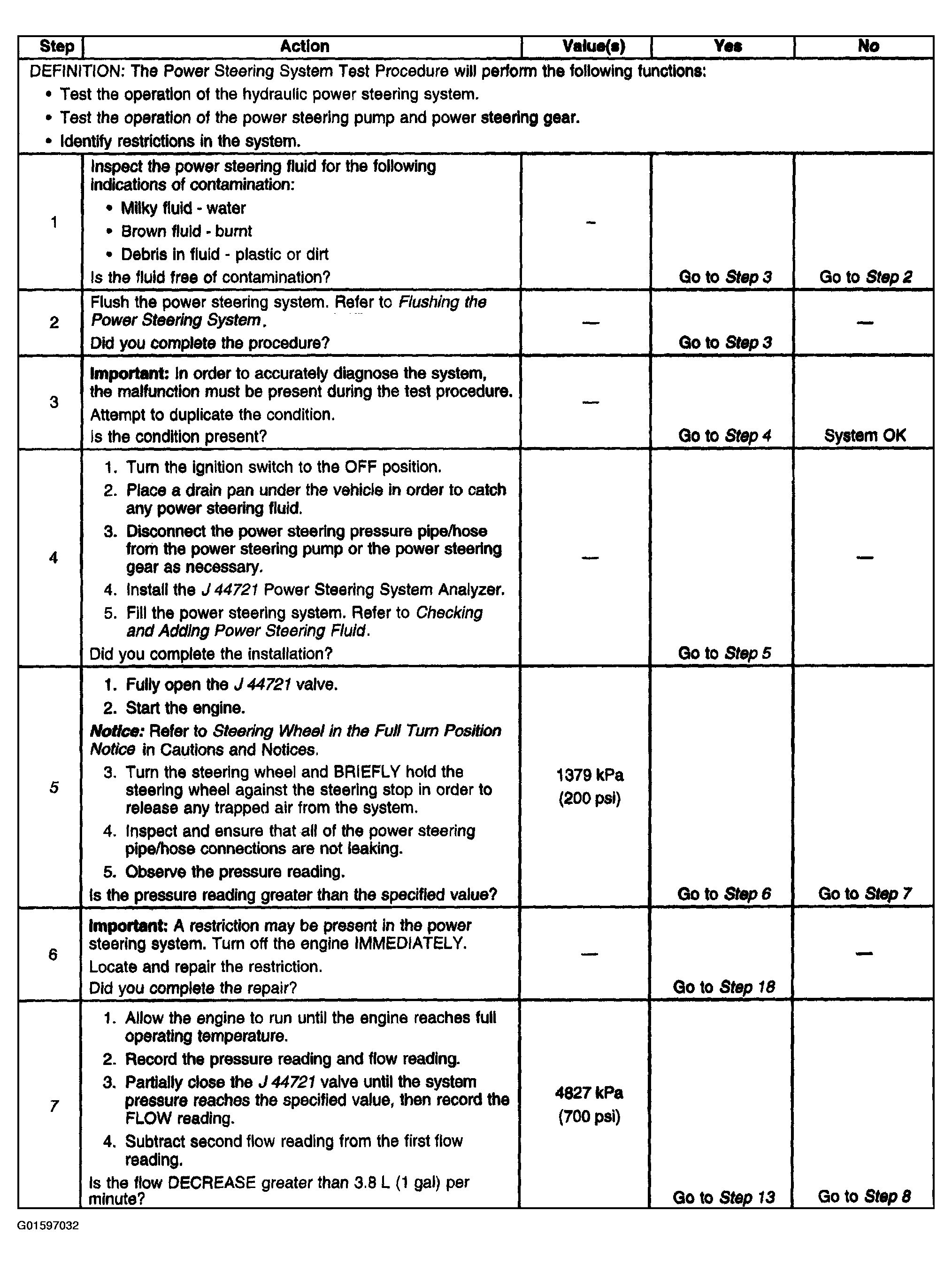

Fig 1: Symptom Diagnostic Procedure Chart - Power Steering System Test (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Symptom Diagnostic Procedure Chart - Power Steering System Test (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

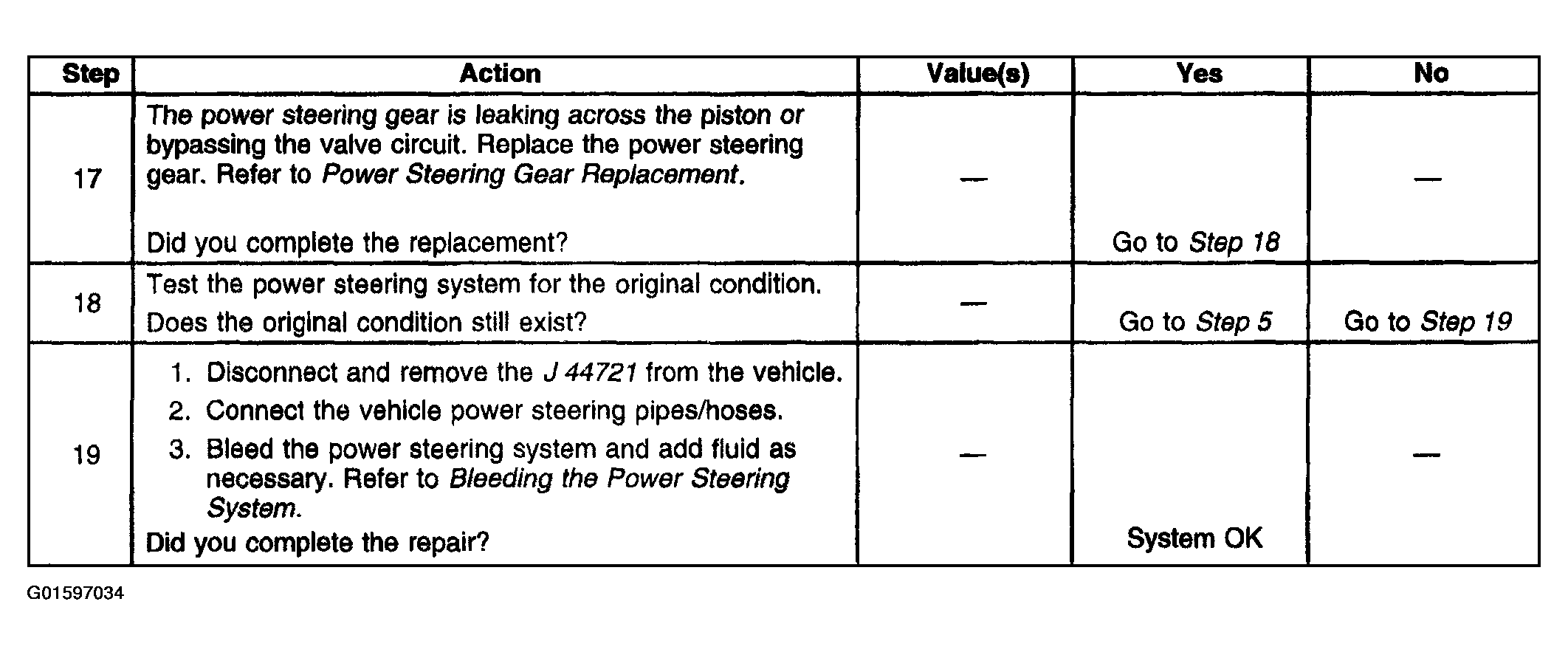

Fig 3: Symptom Diagnostic Procedure Chart - Power Steering System Test (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
