Scan Tool Output Controls

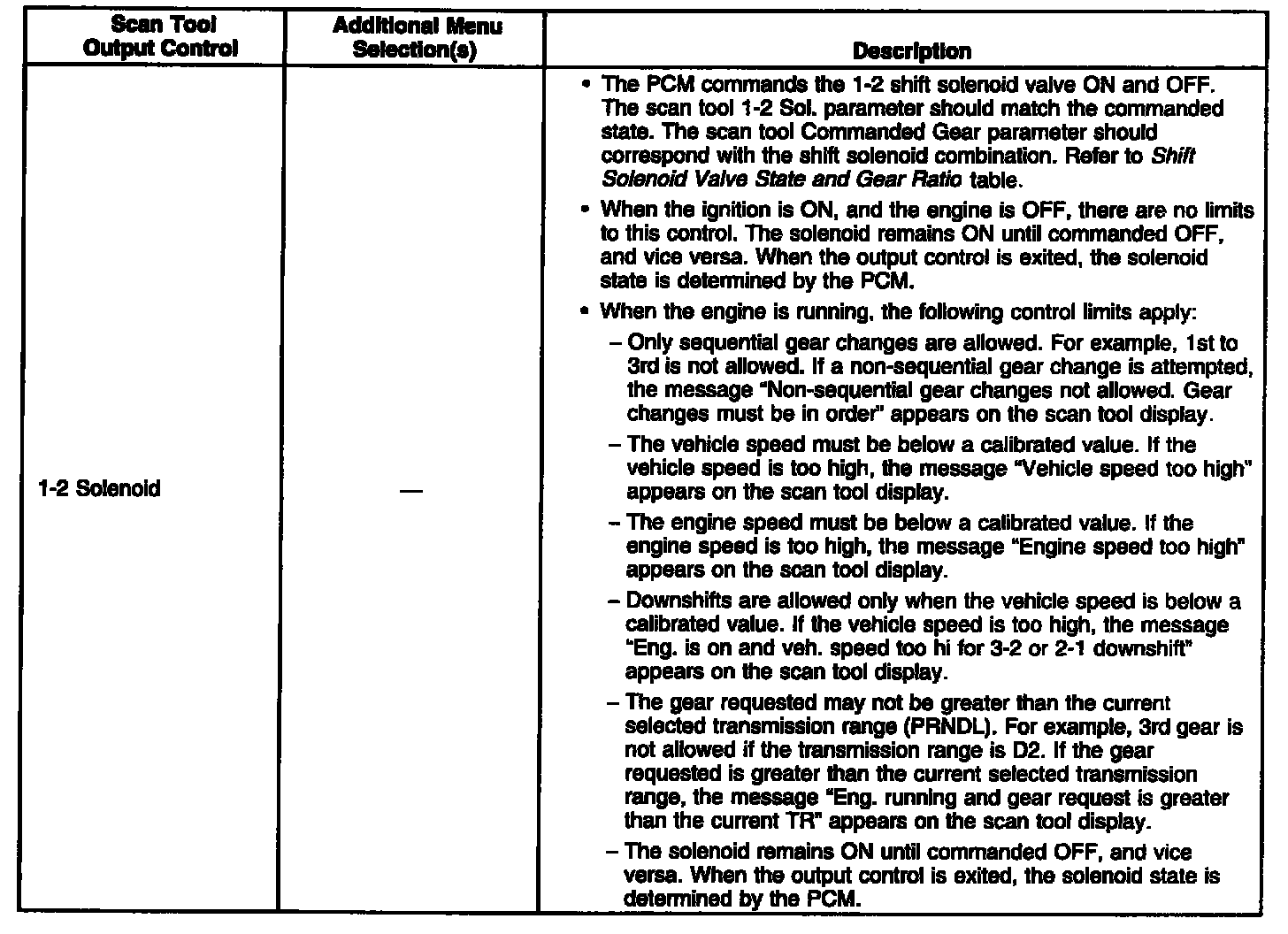

Scan Tool Cutout Controls Part 1 Of 4:

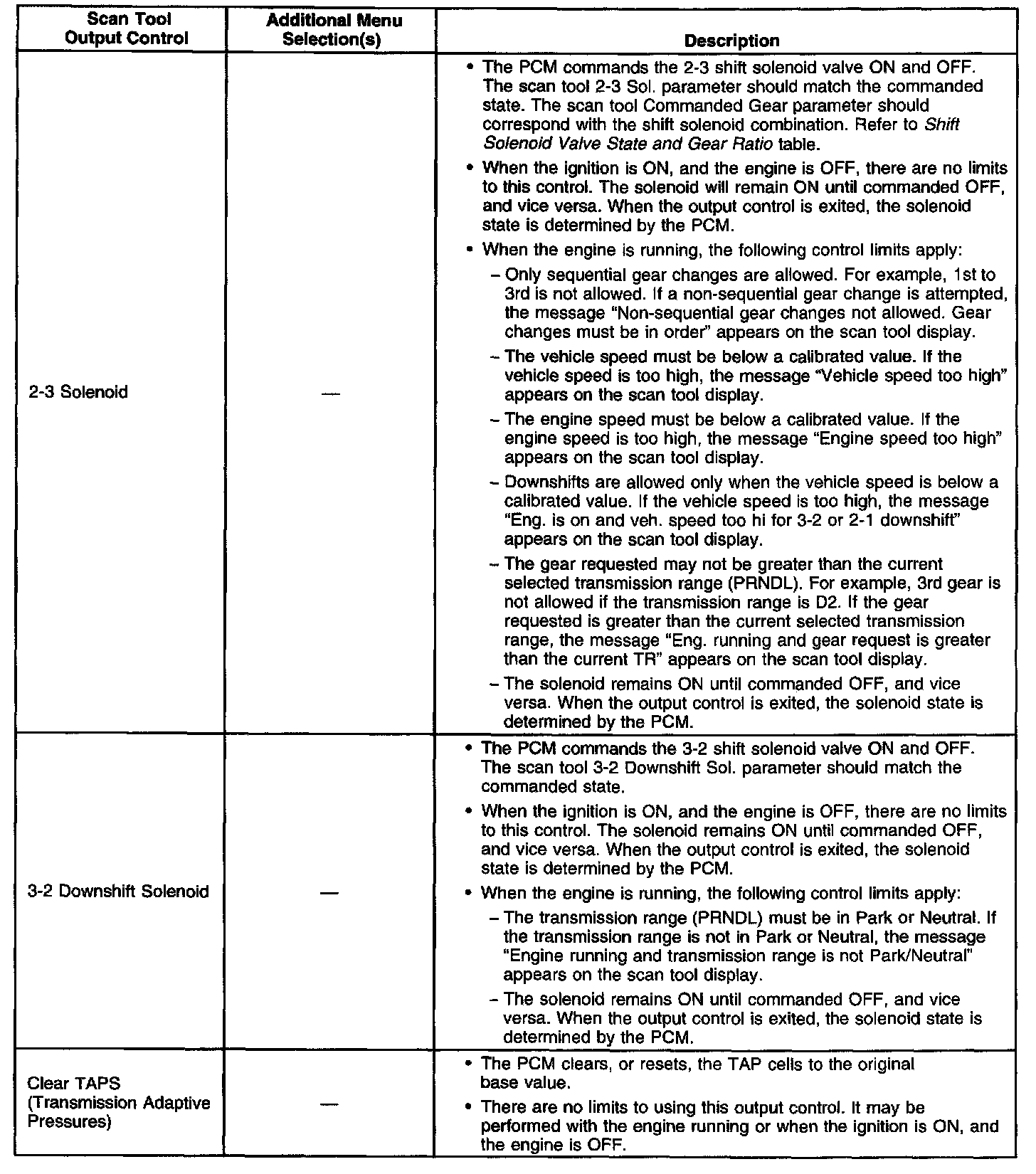

Scan Tool Cutout Controls Part 2 Of 4:

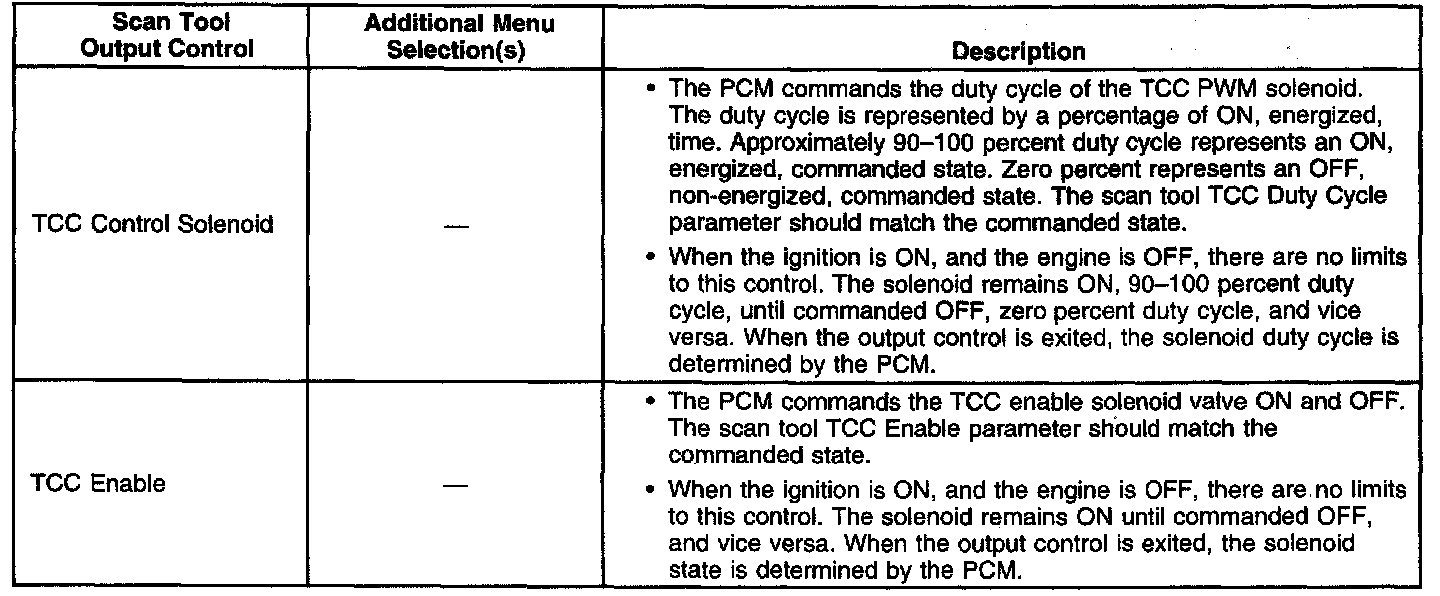

Scan Tool Cutout Controls Part 3 Of 4:

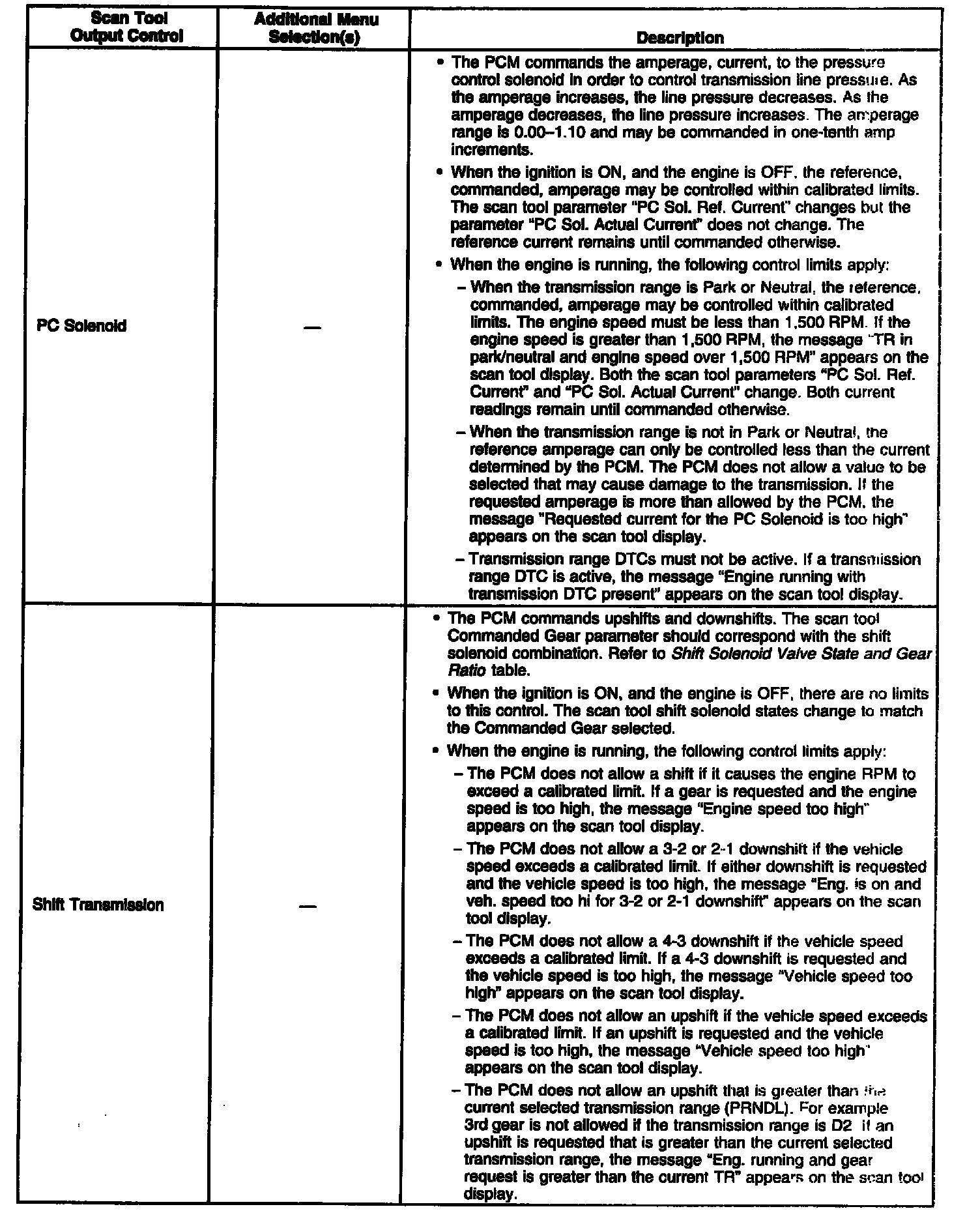

Scan Tool Cutout Controls Part 4 Of 4:
