TAC Module to Accelerator Pedal
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
TAC Module to Accelerator Pedal

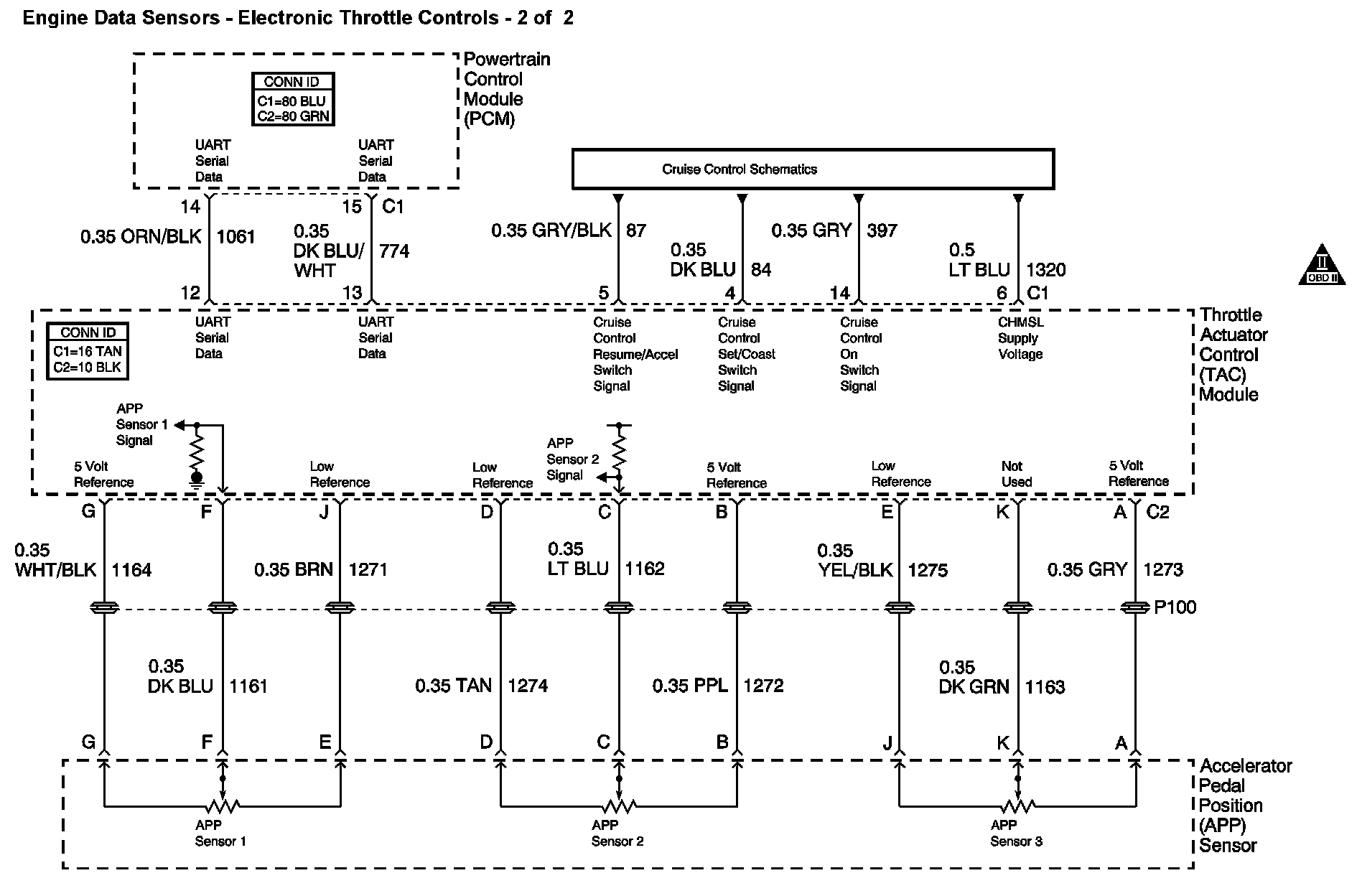

Diagram 5 - Engine Data Sensors - Electronic Throttle Controls:
