Installation Procedure

  1. Install the PTO switch to the housing
  2. Connect the wire connector to the switch.
  3. Install the switch housing to the I/P till it clicks into place.
  4. Install the I/P cluster bezel. Refer to BEZEL REPLACEMENT-INSTRUMENT PANEL (I/P) CLUSTER .

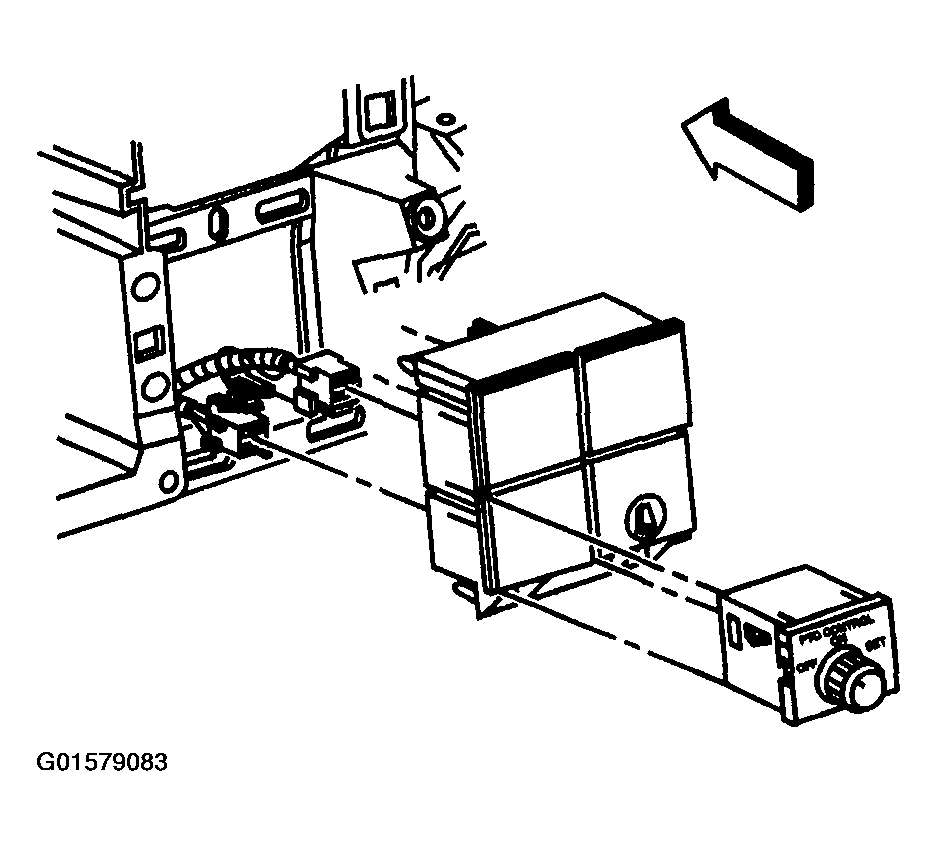

    Fig 1: Installing Power Take-Off Switch
    G01579083Courtesy of GENERAL MOTORS CORP.
