Engine Views

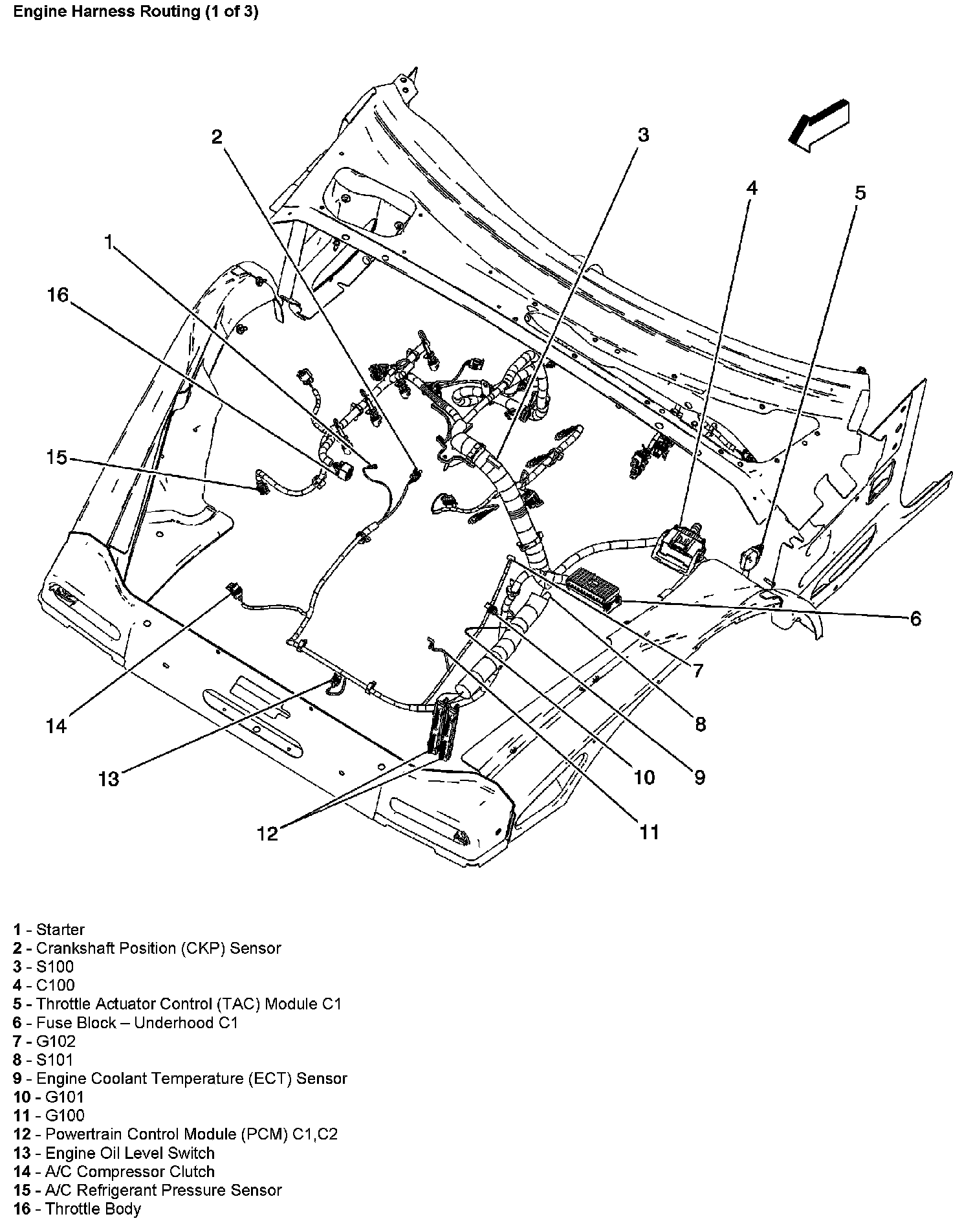

Engine Harness Routing (Part 1):

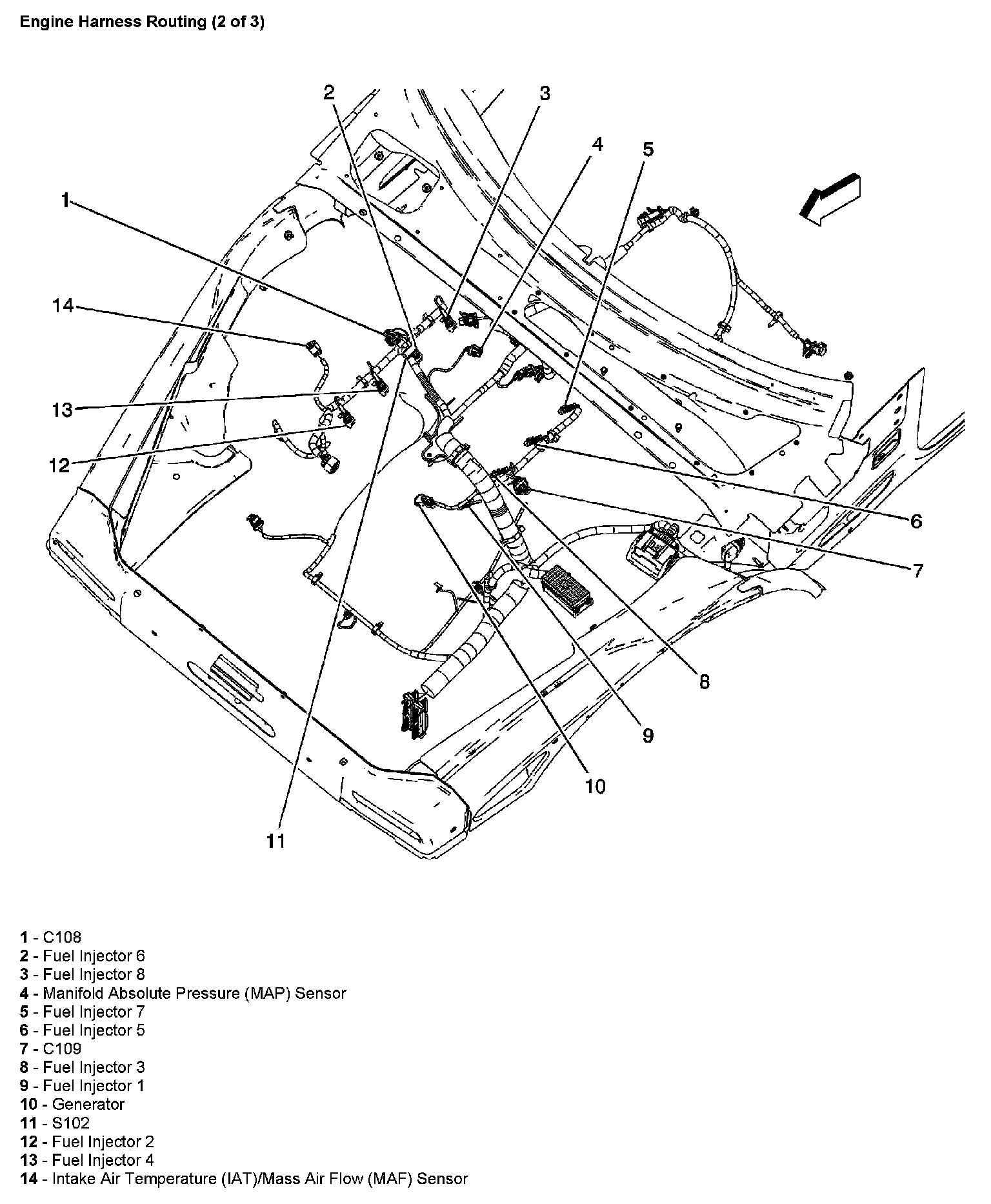

Engine Harness Routing (Part 2):

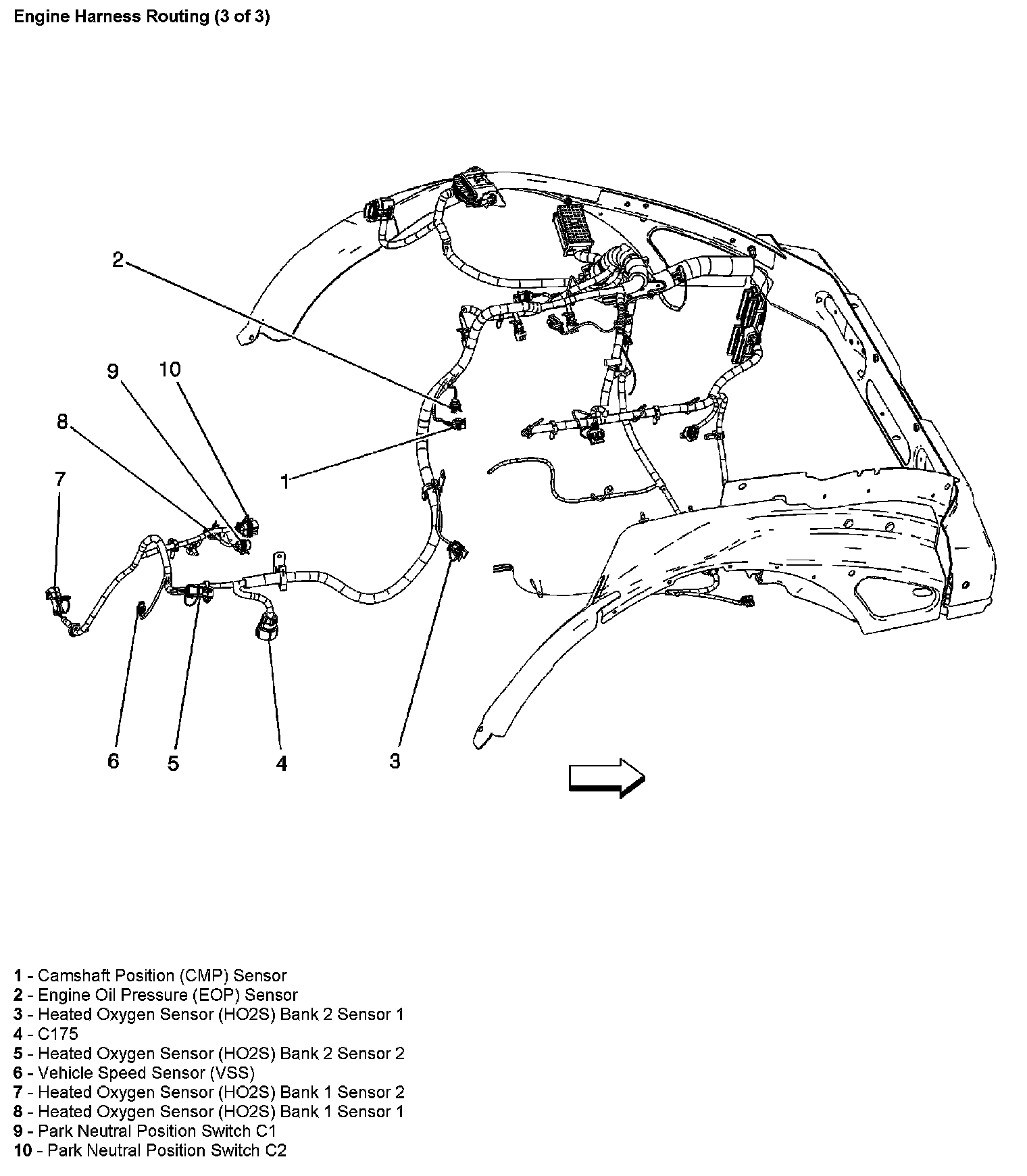

Engine Harness Routing (Part 3):
