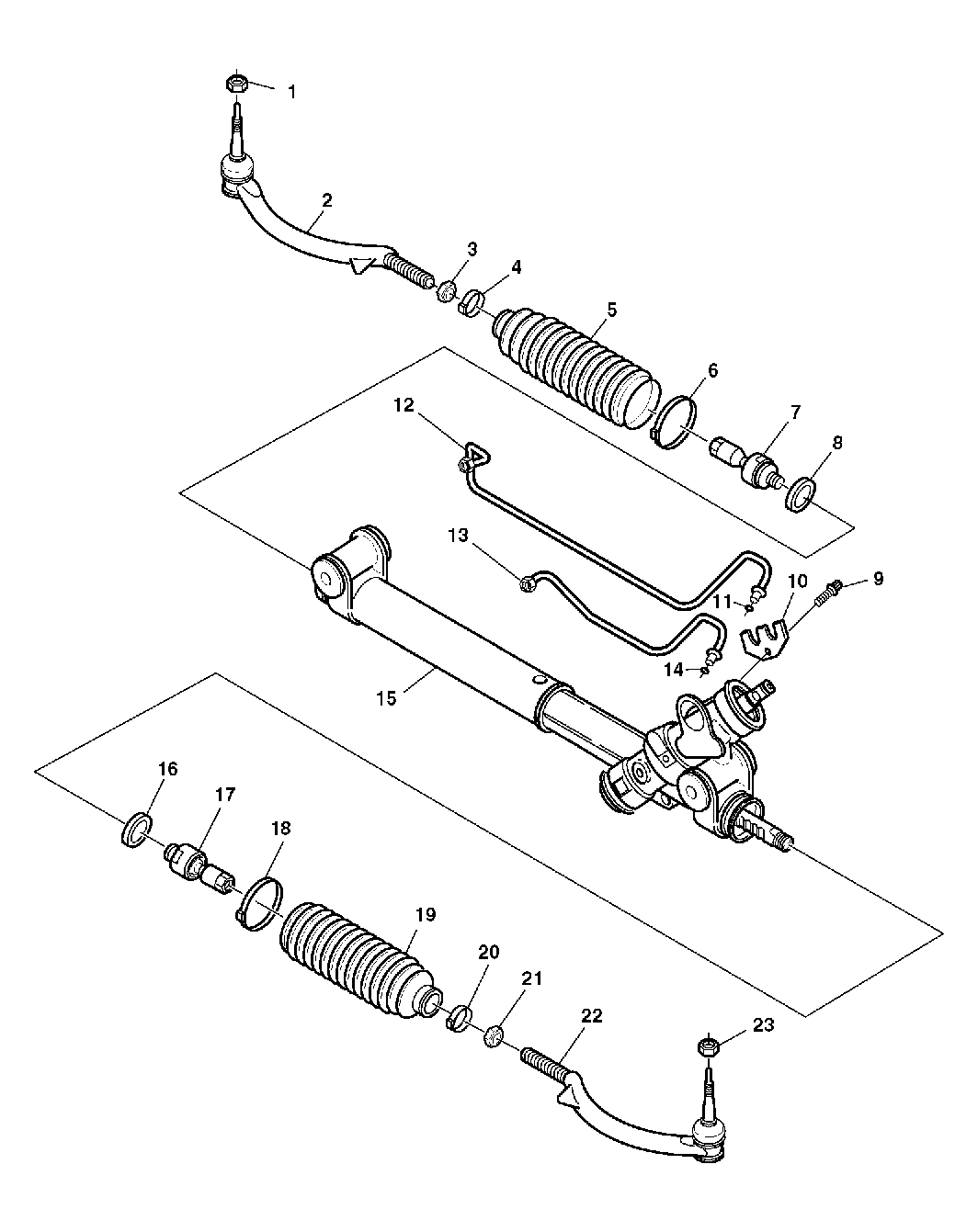

Power Steering Gear Disassembled View
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Torque Prevailing Nut |
| 2 |
Outer Tie Rod Assembly |
| 3 |
Hexagon Jam Nut |
| 4 |
Tie Rod End Clamp |
| 5 |
Rack and Pinion Boot |
| 6 |
Boot Clamp |
| 7 |
Inner Tie Rod Assembly |
| 8 |
Shock Dampener Ring |
| 9 |
External TORX® Screw |
| 10 |
Cylinder Line Retaining Plate |
| 11 |
O-ring Seal |
| 12 |
Cylinder (RH) Line |
| 13 |
Cylinder (LH) Line |
| 14 |
O-ring Seal |
| 15 |
Rack and Pinion Gear (Partial) |
| 16 |
Shock Dampener Ring |
| 17 |
Inner Tie Rod Assembly |
| 18 |
Boot Clamp |
| 19 |
Rack and Pinion Boot |
| 20 |
Tie Rod End Clamp |
| 21 |
Hexagon Jam Nut |
| 22 |
Outer Tie Rod Assembly |
| 23 |
Torque Prevailing Nut |
