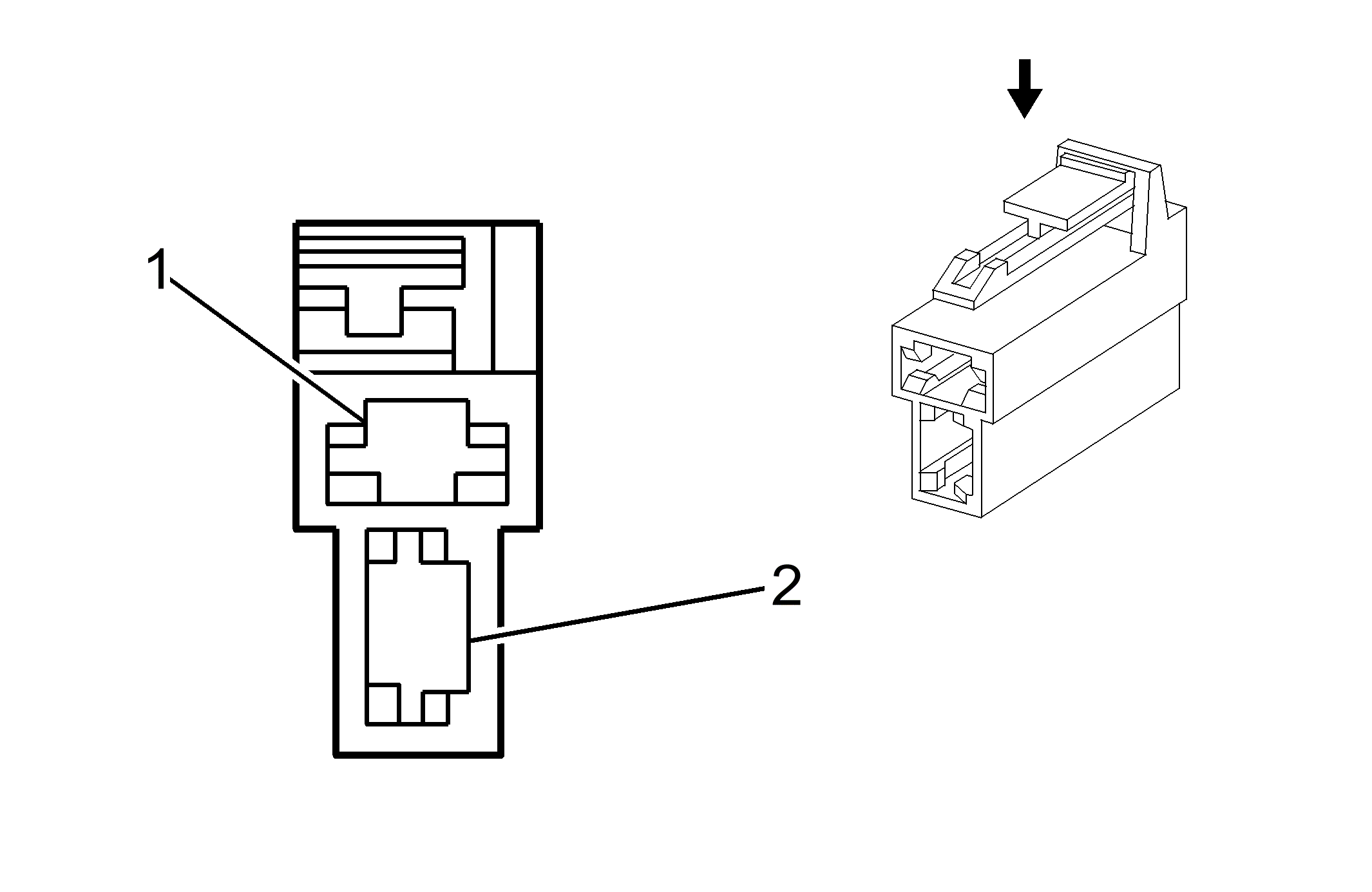

Blower Motor Connector End View
Blower Motor
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 7123-6020
- 2-Way F Unsealed (NA)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
RD |
542 |
Battery Positive Voltage |
| 2 |
OG |
52 |
High Blower Motor Control |
