Connector Identification

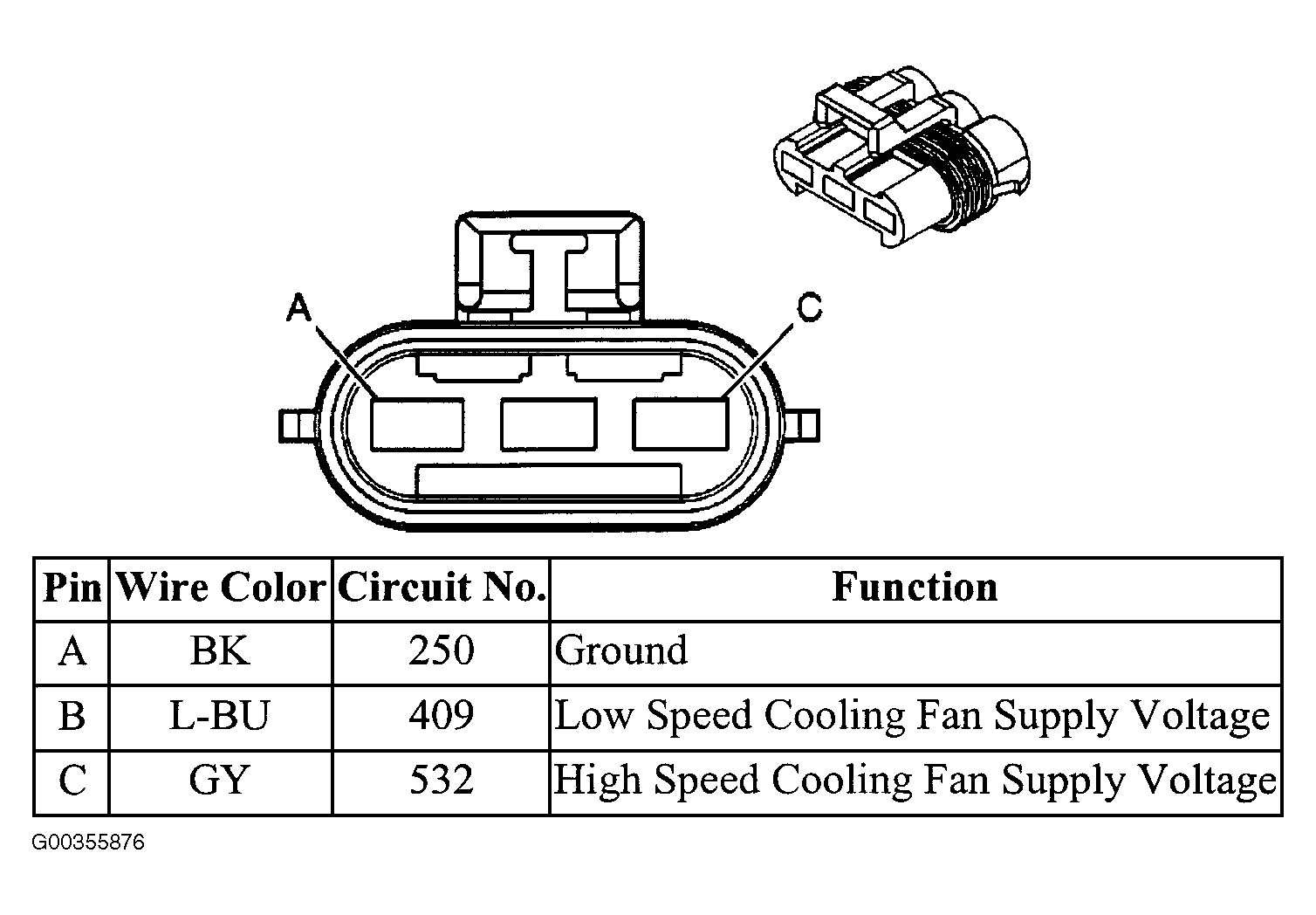

Fig 1: Identifying Cooling Fan Connector End View

Courtesy of GENERAL MOTORS CORP.

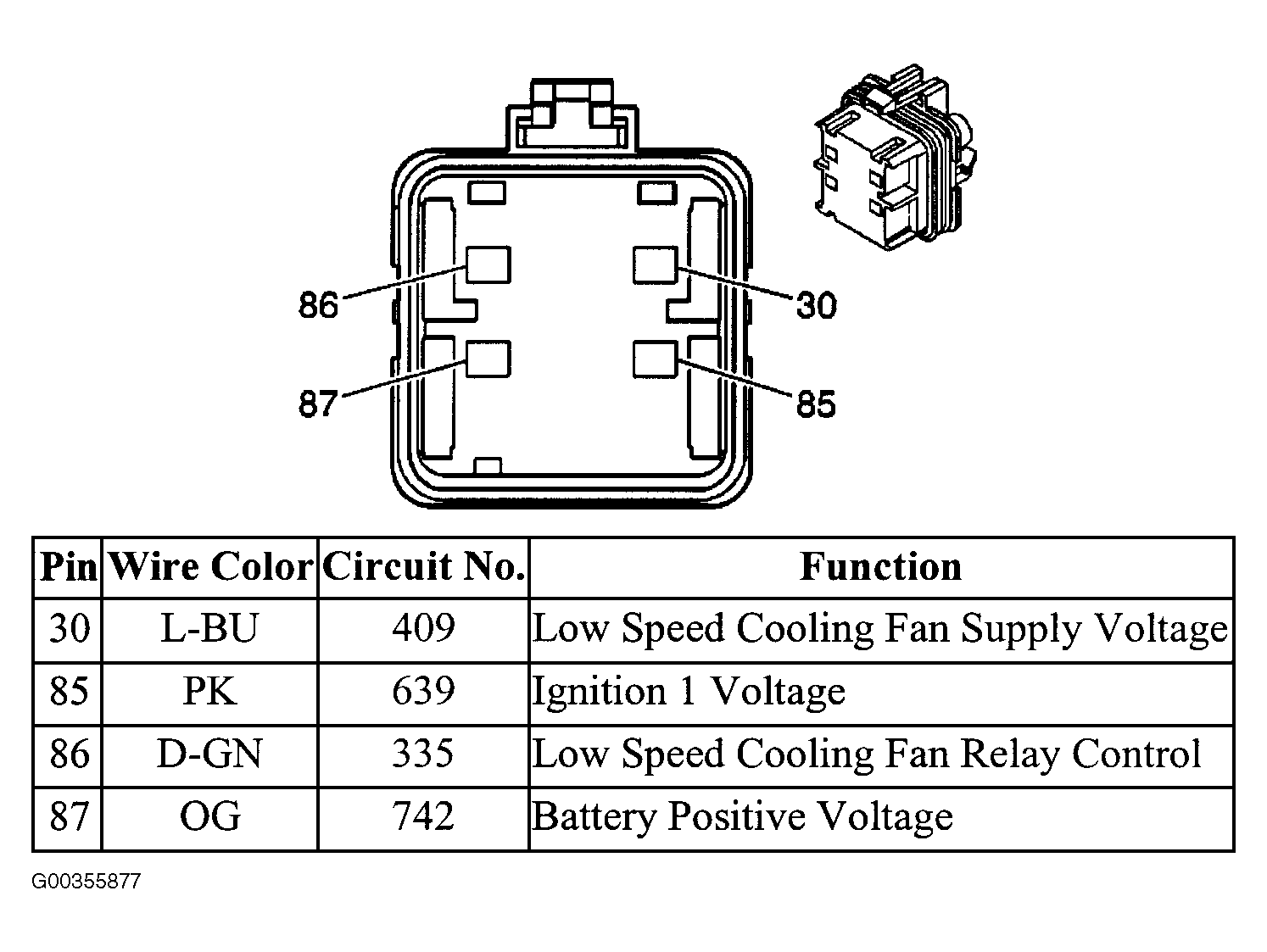

Fig 2: Identifying Cooling Fan 1 (Low Speed) Relay Connector End View

Courtesy of GENERAL MOTORS CORP.

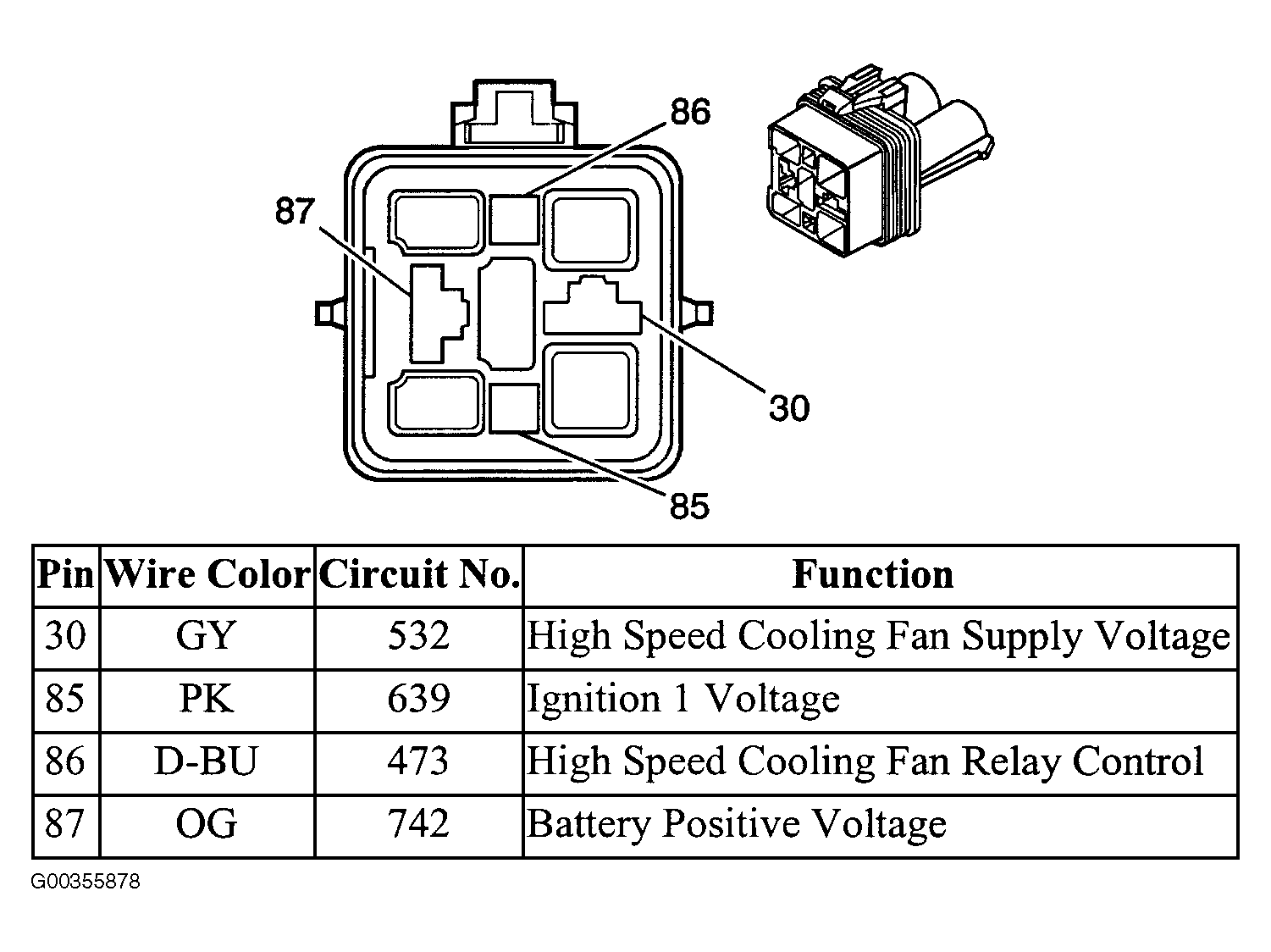

Fig 3: Identifying Cooling Fan 2 (High Speed) Relay Connector End View

Courtesy of GENERAL MOTORS CORP.
