Component Locations

Refer to illustration for location of cooling fan, cooling fan connector and cooling fan relays. See Fig 1 .

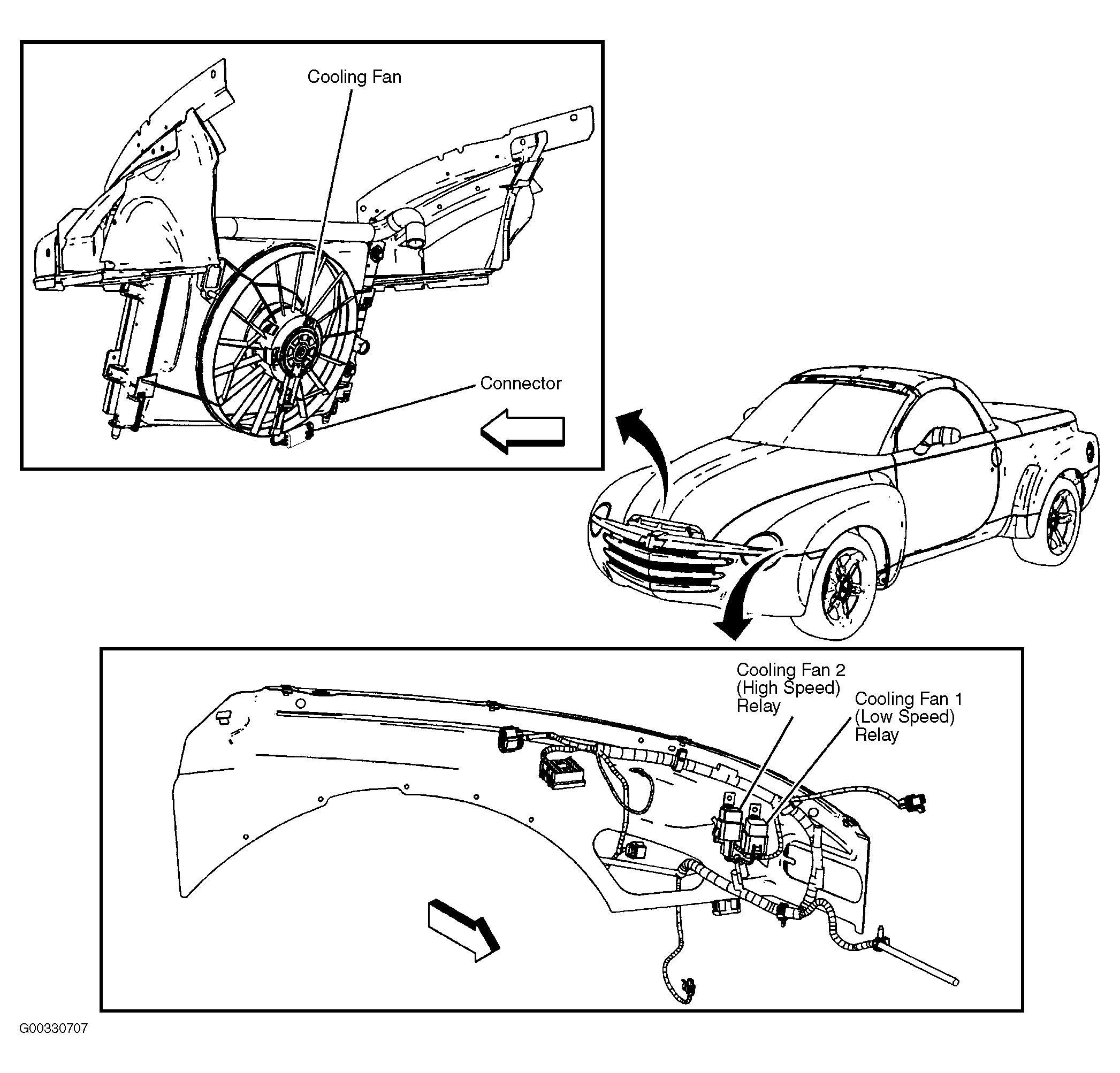

Fig 1: Identifying Location Of Cooling Fan System Components

Courtesy of GENERAL MOTORS CORP.
