Horns Component Views
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Turn Signal/Multifunction Switch |
| 2 |
Hazard Switch |
| 3 |
Mode AM/FM Switch |
| 4 |
Volume UP/DOWN Switch |
| 5 |
Select Personalization Switch |
| 6 |
Fuel/Trip Switch |
| 7 |
Data Link Connector |
| 8 |
Headlamp Switch |

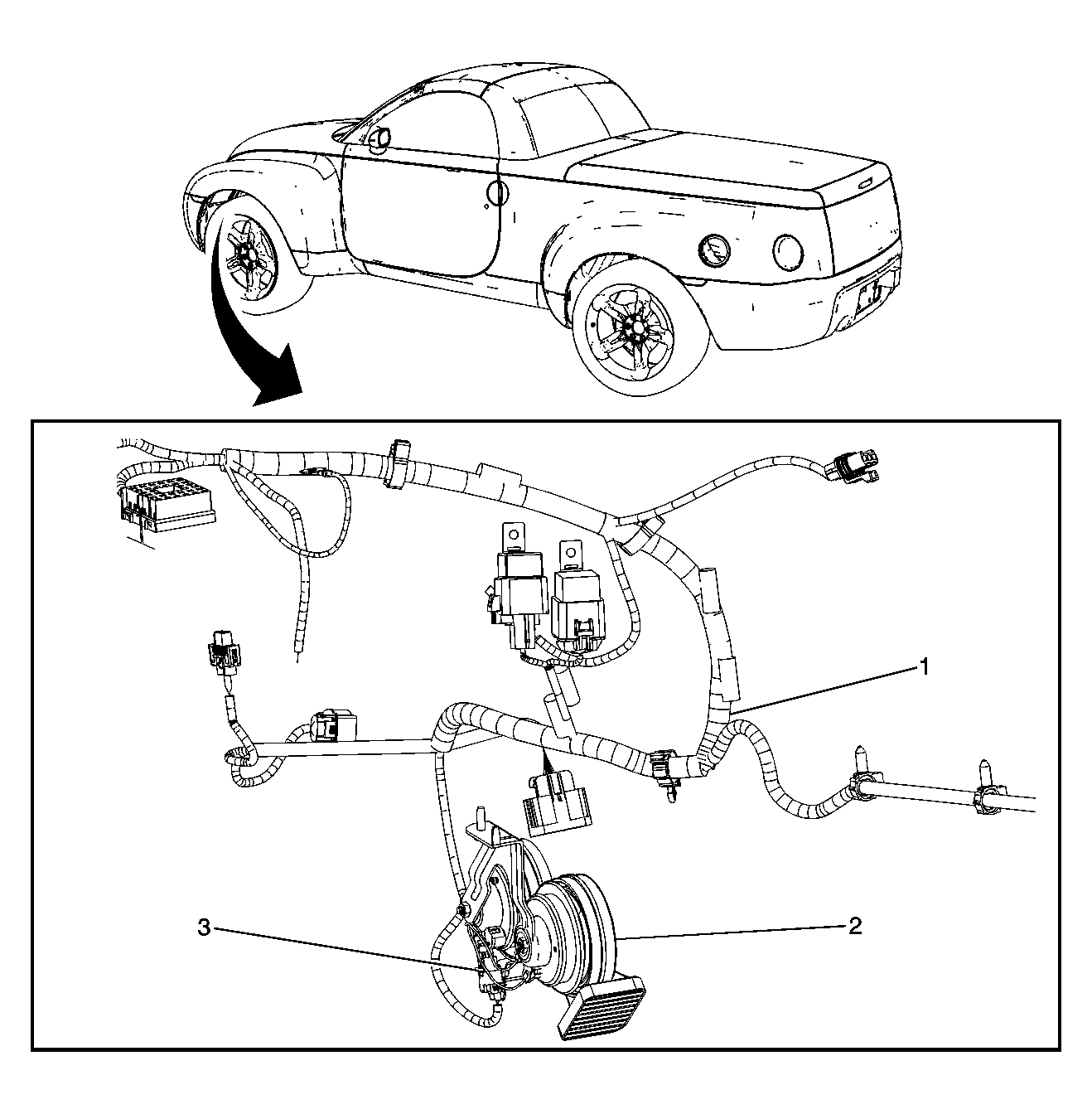

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Forward Lamp Harness |
| 2 |
Horn Assembly |
| 3 |
Horn Assembly Connector |
